Yamaha Outboard Parts - FUEL INJECTION PUMP - LZ300AETO (2004) | Flood Marine

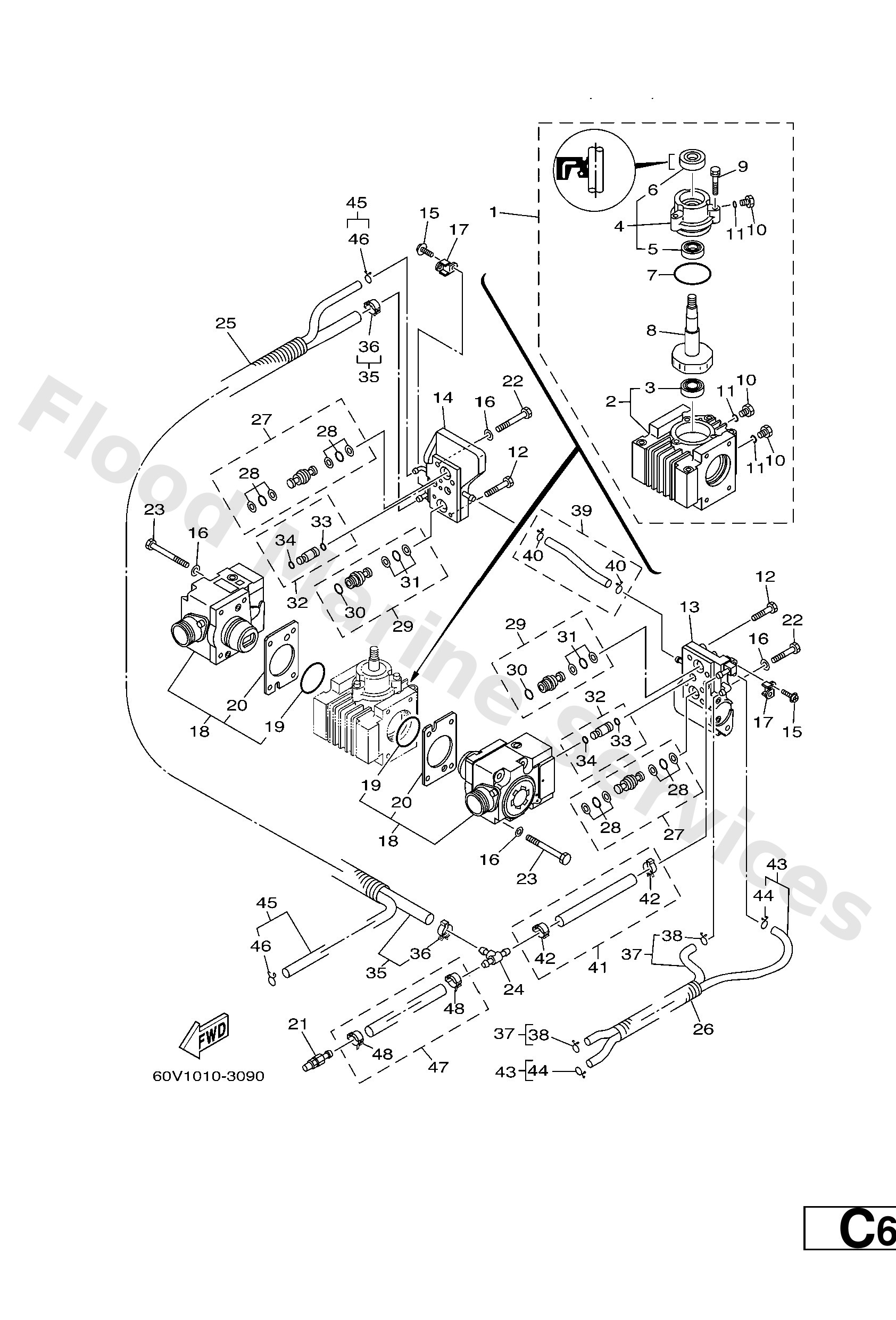

Diagram: FUEL INJECTION PUMP

Diagram

Parts List

Reference
Description
Price


1
60V1217000
Camshaft assembly 1
Loading…

↗
2
60V1242400
Plate, Cartridge Inner
Loading…

↗
3
9330600001
Brg,r-b 6000 26mm 19g ky
Loading…

↗
4
68F1217300
Cap, camshaft 1
Loading…

↗
5
93306001U0
Bearing
Loading…

↗
6
68F1222300
Seal
Loading…

↗
7
68F1243900
O-ring
Loading…

↗
8
60V1217100
Camshaft 1
Loading…

↗
9
68F1222800
Bolt
Loading…

↗
10
68F1345500
Plug
Loading…

↗
11
68F1347300
O-ring
Loading…

↗
13
60V1399300
Cover, control rack
Loading…

↗
14
60W1399300
Cover, Control Rack
Loading…

↗
15
65L1456500
Screw
Loading…

↗
16
68F2457900
Washer 2
Loading…

↗
17
60V1385400
Plate 4
Loading…

↗
18
60V1391000
Fuel Pump assembly
Loading…

↗
19
60V1400500
Ring, seal
Loading…

↗
20
60V1412600
Gasket
Loading…

↗
21
68F2430000
Fuel pipe joint
Loading…

↗
22
60V2417800
Bolt 3
Loading…

↗
23
60V2417600
Bolt 1
Loading…

↗
24
60V2437800
Pipe, Joint 4
Loading…

↗
25
60V2486400
Tube
Loading…

↗
26
60V2510T00
Tube
Loading…

↗
27
68F1381500
Joint 1
Loading…

↗
28
68F2466A00
Packing kit
Loading…

↗
29
60V1381600
Joint 2
Loading…

↗
30
68F2448600
O-ring
Loading…

↗
32
60V1350500
Joint Comp.
Loading…

↗
34
60V1347300
Seal
Loading…

↗
35
60V1414800
Pipe
Loading…

↗
36
65L2438700
Clip
Loading…

↗
37
60V2431200
Pipe 2
Loading…

↗
38
68F2435600
Clip, pipe 1
Loading…

↗
39
60V2431300
Pipe 3
Loading…

↗
41
60V1414900
Pipe
Loading…

↗
43
60V2431400
Pipe 4
Loading…

↗
45
60V2431500
Pipe 5
Loading…

↗
47
60V1397200
Pipe, fuel 2
Loading…

↗
