Z200NETO (2003)
FUEL INJECTION PUMP

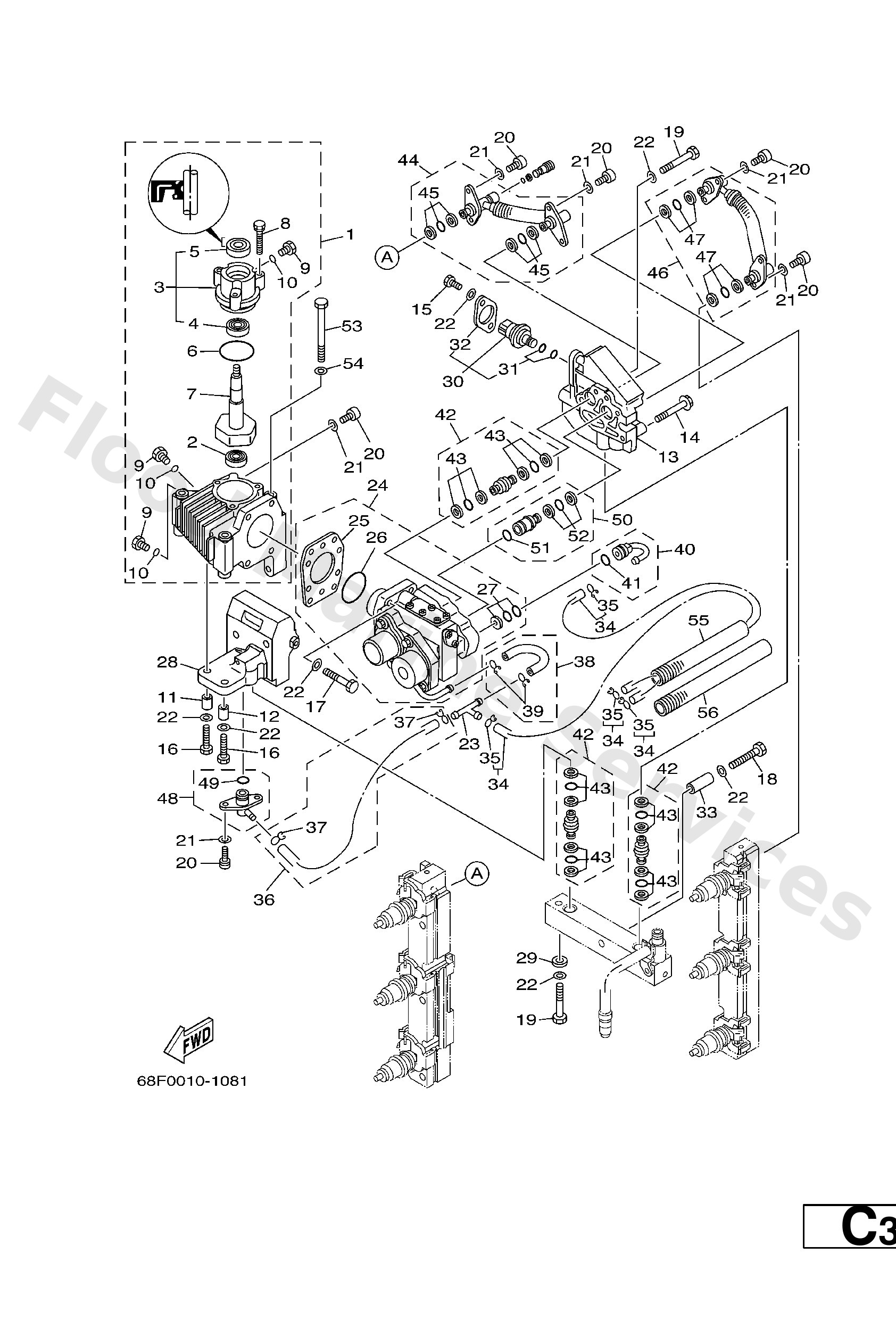

Diagram: FUEL INJECTION PUMP
Parts List
Reference
Description
Price
1
68F−12170−01
Camshaft assembly 1
Loading…
↗
2
93306−00001
Brg,r-b 6000 26mm 19g ky
Loading…
↗
3
68F−12173−00
Cap, camshaft 1
Loading…
↗
4
93306−001U0
Bearing
Loading…
↗
5
68F−12223−00
Seal
Loading…
↗
6
68F−12439−00
O-ring
Loading…
↗
7
68F−12171−00
Camshaft 1
Loading…
↗
8
68F−12228−00
Bolt
Loading…
↗
9
68F−13455−00
Plug
Loading…
↗
10
68F−13473−00
O-ring
Loading…
↗
11
68F−24372−00
Joint
Loading…
↗
12
68F−24478−00
Joint
Loading…
↗
13
68F−13993−00
Cover
Loading…
↗
14
68F−24592−00
8−
Loading…
↗
15
68F−13573−00
Bolt 1
Loading…
↗
16
68F−13574−00
Bolt 2
Loading…
↗
17
68F−24176−00
Bolt 1
Loading…
↗
18
68F−12157−00
Bolt
Loading…
↗
19
68F−24178−00
Bolt 3
Loading…
↗
20
68F−24551−00
Bolt, joint
Loading…
↗
21
68F−24576−00
Washer
Loading…
↗
22
68F−24579−00
Washer 2
Loading…
↗
23
688−24378−00
Pipe, joint
Loading…
↗
24
68F−13910−00
Fuel Pump assembly
Loading…
↗
25
68F−14005−00
Ring, seal
Loading…
↗
26
68F−14126−00
Gasket
Loading…
↗
27
68F−13942−00
Valve, Outlet
Loading…
↗
28
68F−24470−00
Fuel Regulator.assembly
Loading…
↗
29
68F−12443−00
Stay
Loading…
↗
30
68F−82380−01
Sensor, pressure
Loading…
↗
31
68F−82384−00
Packing kit
Loading…
↗
32
68F−82388−00
Plate
Loading…
↗
33
68F−24638−00
8−
Loading…
↗
34
68F−24312−00
Pipe 2
Loading…
↗
35
68F−24356−00
Clip, pipe 1
Loading…
↗
36
68F−24313−00
Pipe 3
Loading…
↗
38
68F−24314−00
Pipe 4
Loading…
↗
40
68F−13758−00
Pipe, Joint
Loading…
↗
41
68F−24486−00
O-ring
Loading…
↗
42
68F−13815−00
Joint 1
Loading…
↗
43
68F−2466A−00
Packing kit
Loading…
↗
44
68F−13973−00
Pipe, Fuel 3
Loading…
↗
46
68F−13974−00
Pipe, Fuel 4
Loading…
↗
48
68F−24474−00
Cover
Loading…
↗
50
68F−13816−00
Joint 2
Loading…
↗
53
97013−08070
Bolt
Loading…
↗
54
92903−08600
Washer, plain (663)
Loading…
↗
55
90446−24MF4
Hose
Loading…
↗
56
90446−20MF5
Hose
Loading…
↗
