F130A (2024)
FUEL INJECTION PUMP 1

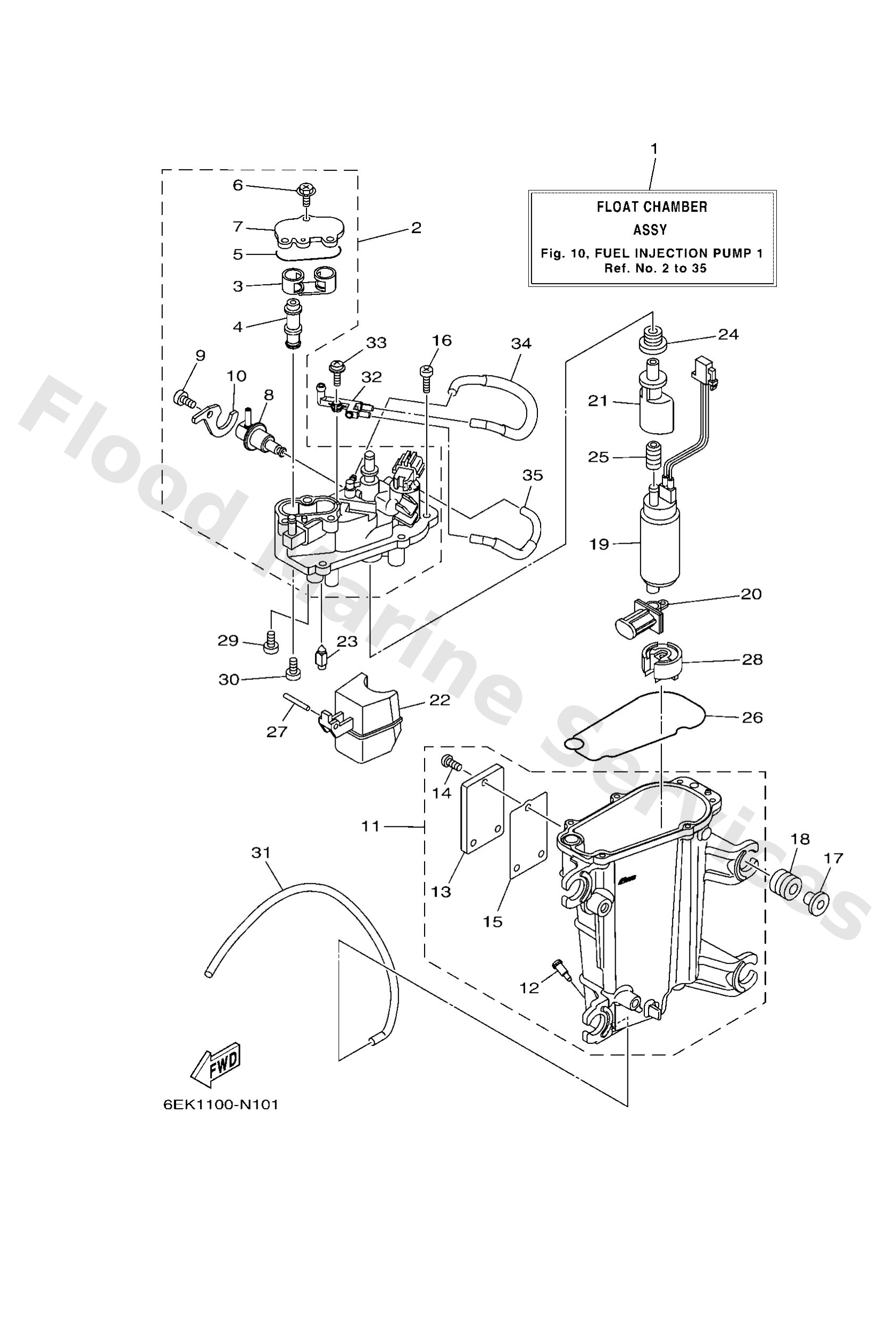

Diagram: FUEL INJECTION PUMP 1
Parts List
Reference
Description
Price
1
6EK1418004
Float chamber assembly
Loading…
↗
2
6EK1418200
Cover, float chamber
Loading…
↗
3
6EK2447800
Joint
Loading…
↗
4
6EK2448100
Plug
Loading…
↗
5
6CB1301600
O-ring
Loading…
↗
6
6CB1421600
Screw
Loading…
↗
7
6CB2421700
Cover
Loading…
↗
8
6CB1390601
Regulator, pressure
Loading…
↗
9
6CB1456400
Screw
Loading…
↗
10
6DA1414600
Plate
Loading…
↗
11
6EK1418100
Body, float chamber 1
Loading…
↗
12
6P21419100
Plug, drain
Loading…
↗
13
6EK2445200
Cover
Loading…
↗
14
6K81459110
Screw
Loading…
↗
15
6CB2448200
Gasket 1
Loading…
↗
16
63P1456700
Screw
Loading…
↗
17
63P1371600
Collar
Loading…
↗
18
6CB1359300
Damper
Loading…
↗
19
68V1390722
Fuel pump comp.
Loading…
↗
20
63P1391500
Filter
Loading…
↗
21
6KA1313200
Joint
Loading…
↗
22
6CB1498500
Float
Loading…
↗
23
6CB1454600
Valve, needle
Loading…
↗
24
6LH1447B00
Bush 1
Loading…
↗
25
6AW1378100
Damper, pump
Loading…
↗
26
6CB1498400
Gasket, float chamber
Loading…
↗
27
6P21438600
Pin, float
Loading…
↗
28
6AW1378400
Cover, pump
Loading…
↗
29
4SV2445300
Screw
Loading…
↗
30
9850704008
Screw, pan head(jg1)
Loading…
↗
31
6AW1419700
Pipe
Loading…
↗
32
68V2437910
Pipe, joint 4
Loading…
↗
33
68V1421600
Screw
Loading…
↗
34
6EK1475H00
Pipe 5
Loading…
↗
35
6EK1475J00
Pipe 6
