Yamaha Outboard Parts - FUEL INJECTION PUMP 1 - F30BEHD (2013) | Flood Marine

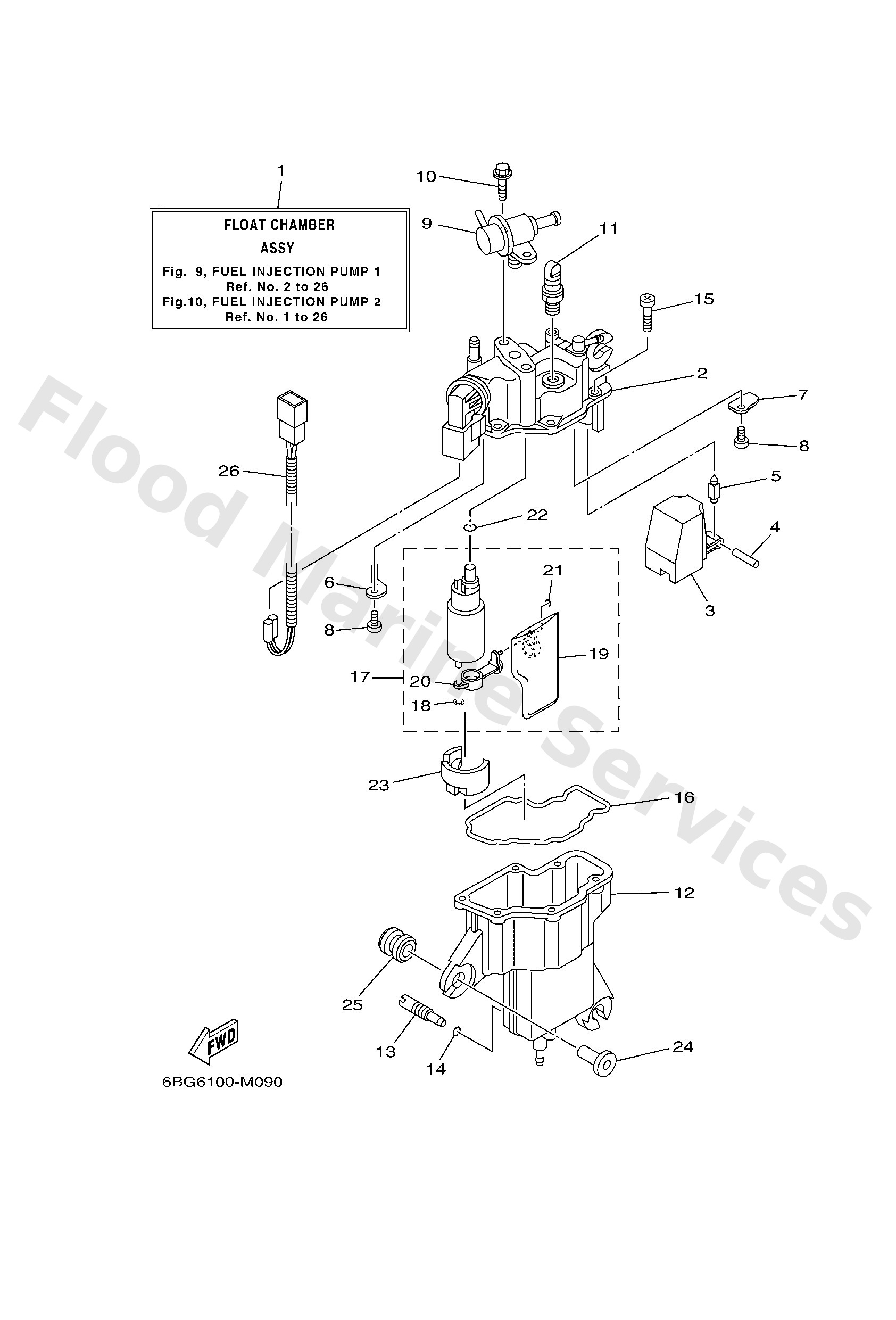

Diagram: FUEL INJECTION PUMP 1

Diagram

Parts List

Reference
Description
Price


1
6BG1418002
Float chamber assembly
Loading…

↗
2
6BG1418210
Cover, float chamber
Loading…

↗
3
6BG1498500
Float
Loading…

↗
4
6C51438600
Pin, float
Loading…

↗
5
6C51454610
Valve, needle
Loading…

↗
6
6BG2441R10
Plate, baffle 1
Loading…

↗
7
6BG2441T10
Plate, baffle 2
Loading…

↗
8
6C52445300
Screw
Loading…

↗
9
6C51390601
Regulator, pressure
Loading…

↗
10
6C52459200
Bolt
Loading…

↗
11
6C51422500
Cap
Loading…

↗
12
6BG1496010
Body assembly
Loading…

↗
13
6C51419100
Plug, drain
Loading…

↗
14
6C51439700
O-ring
Loading…

↗
15
6C51456700
Screw
Loading…

↗
16
6BG1498400
Gasket, float chamber
Loading…

↗
17
6BG1391001
Fuel pump assembly
Loading…

↗
18
6C51412710
Clip
Loading…

↗
19
6BG1391500
Filter
Loading…

↗
20
6BG1393800
Pipe
Loading…

↗
21
6BG1413700
Clip
Loading…

↗
22
6BG1456100
O-ring
Loading…

↗
23
6BG1359300
Damper
Loading…

↗
24
9038706M69
Collar (688)
Loading…

↗
25
9048009M12
Grommet (6a0)
Loading…

↗
26
6BG8255300
Extension, wire lead
Loading…

↗
