F350AET (2008)
FUEL INJECTION PUMP 1

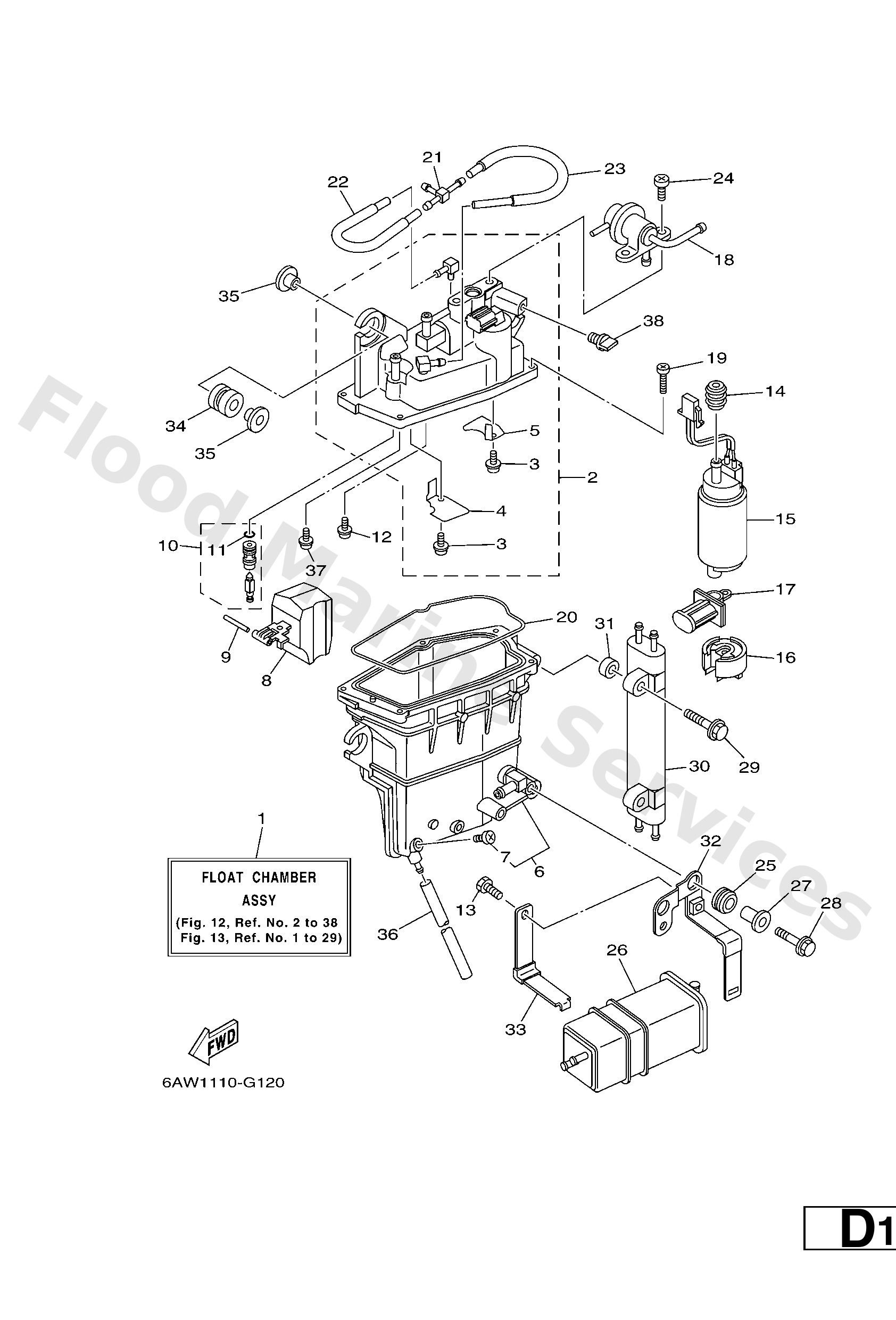

Diagram: FUEL INJECTION PUMP 1
Parts List
Reference
Description
Price
1
6AW1418000
Float chamber assembly
Loading…
↗
2
6AW1418200
Cover, Float Chamber
Loading…
↗
3
4SV2445300
Screw
Loading…
↗
4
6AW2411T00
Plate 2
Loading…
↗
5
6AW2411R00
-
Loading…
↗
6
6AW1418100
Body, float chamber 1
Loading…
↗
7
6P21419100
Plug, drain
Loading…
↗
8
6P21498500
Float
Loading…
↗
9
6P21438600
Pin, float
Loading…
↗
10
6P21454600
Valve, needle
Loading…
↗
11
6P21376900
O-ring
Loading…
↗
13
6P21357400
Bolt 2
Loading…
↗
14
68V1378110
Grommet & collar set
Loading…
↗
15
6AW1390700
Fuel pump comp.
Loading…
↗
16
63P1378400
Cover, pump
Loading…
↗
17
63P1391500
Filter
Loading…
↗
18
6AW1390600
Regulator, pressure
Loading…
↗
19
63P1456700
Screw
Loading…
↗
20
6AW1498400
Gasket, float chamber
Loading…
↗
21
69J2437900
Pipe, joint 4
Loading…
↗
22
6AW1475K00
Pipe 7
Loading…
↗
23
6AW1475L00
Pipe 8
Loading…
↗
24
68V1456400
Screw
Loading…
↗
25
9048010M23
Grommet(6k7)
Loading…
↗
26
6P22417000
Canister assembly
Loading…
↗
27
9038706M60
Collar (6h3)
Loading…
↗
28
9011906M59
Bolt, with washer
Loading…
↗
29
6P21444600
Bolt
Loading…
↗
30
69J2184102
Cooler
Loading…
↗
31
68V1426500
Collar
Loading…
↗
32
6AW2134X00
-
Loading…
↗
33
6P22419A00
Holder
Loading…
↗
34
69J1359300
Damper
Loading…
↗
35
69J1371600
Collar
Loading…
↗
36
6AW1419700
Pipe
Loading…
↗
37
9850704008
Screw, pan head(jg1)
Loading…
↗
38
69J1422500
Cap
Loading…
↗
