Yamaha Outboard Parts - FUEL INJECTION PUMP 1 - F40GET (2012) | Flood Marine

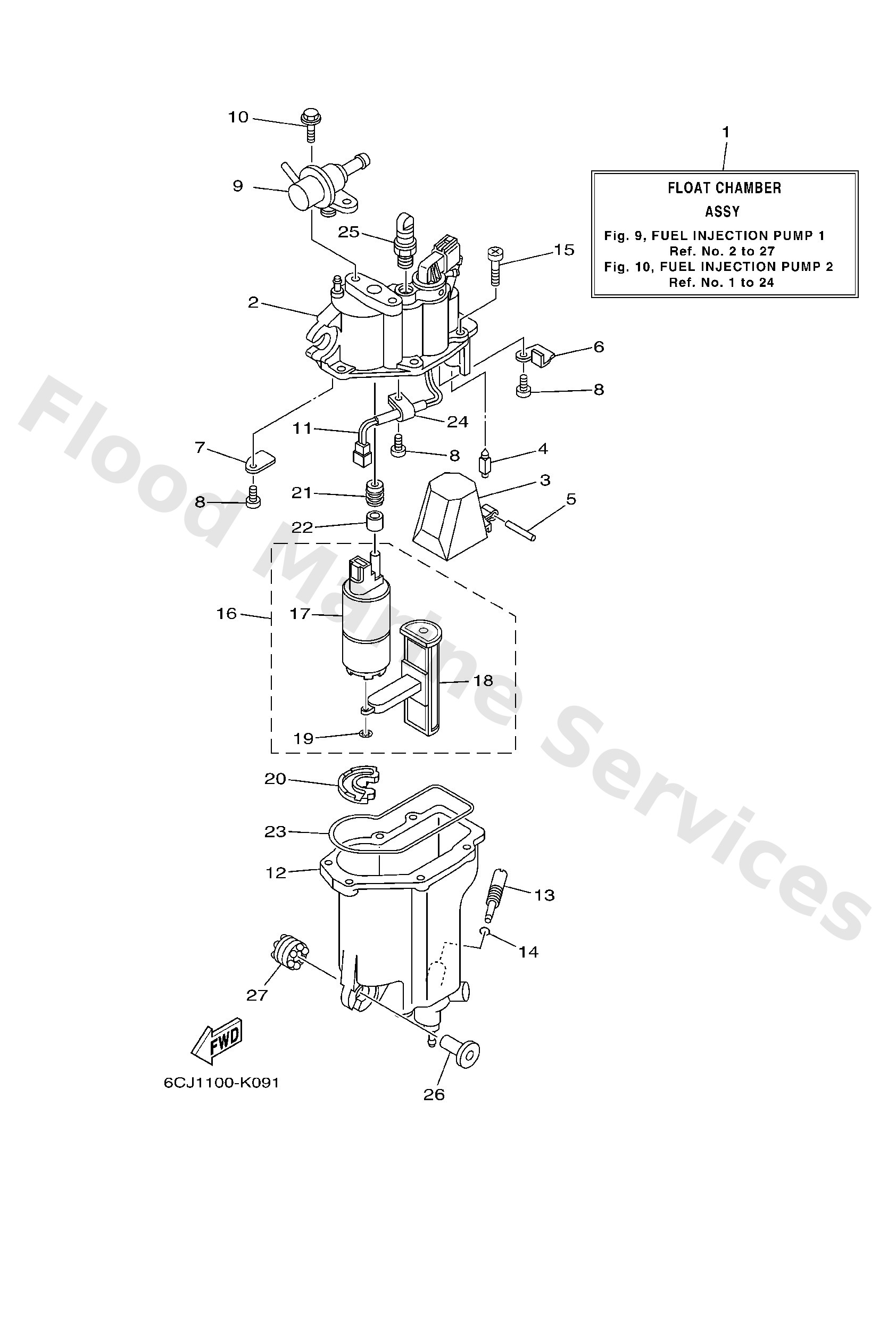

Diagram: FUEL INJECTION PUMP 1

Diagram

Parts List

Reference
Description
Price


1
6CJ1418001
Float chamber assembly
Loading…

↗
2
6C51418210
Cover, float chamber
Loading…

↗
3
6C51498500
Float
Loading…

↗
4
6C51454610
Valve, needle
Loading…

↗
5
6C51438600
Pin, float
Loading…

↗
6
6C52441R10
Plate, baffle 1
Loading…

↗
7
6C52441T10
Plate, baffle 2
Loading…

↗
8
6C52445300
Screw
Loading…

↗
9
6C51390601
Regulator, pressure
Loading…

↗
10
6C52459200
Bolt
Loading…

↗
11
6C58722600
Wire harness assembly
Loading…

↗
12
6C51496010
Body assembly
Loading…

↗
13
6C51419100
Plug, drain
Loading…

↗
14
6C51439700
O-ring
Loading…

↗
15
6C51456700
Screw
Loading…

↗
16
6C51391010
Fuel pump assembly
Loading…

↗
17
6C51390700
Fuel pump comp.
Loading…

↗
18
6C51391500
Filter
Loading…

↗
19
6C51412710
Clip
Loading…

↗
20
6C51359300
Damper
Loading…

↗
21
6C51378100
Damper, pump
Loading…

↗
22
6C51371600
Collar
Loading…

↗
23
6C51498400
Gasket, float chamber
Loading…

↗
24
6C52133710
Clamp, cable
Loading…

↗
25
6C51422500
Cap
Loading…

↗
26
9038706M03
Collar (676)
Loading…

↗
27
69L8551600
Spacer
Loading…

↗
