Yamaha Outboard Parts - FUEL INJECTION PUMP 1 - FL150AET (2004) | Flood Marine

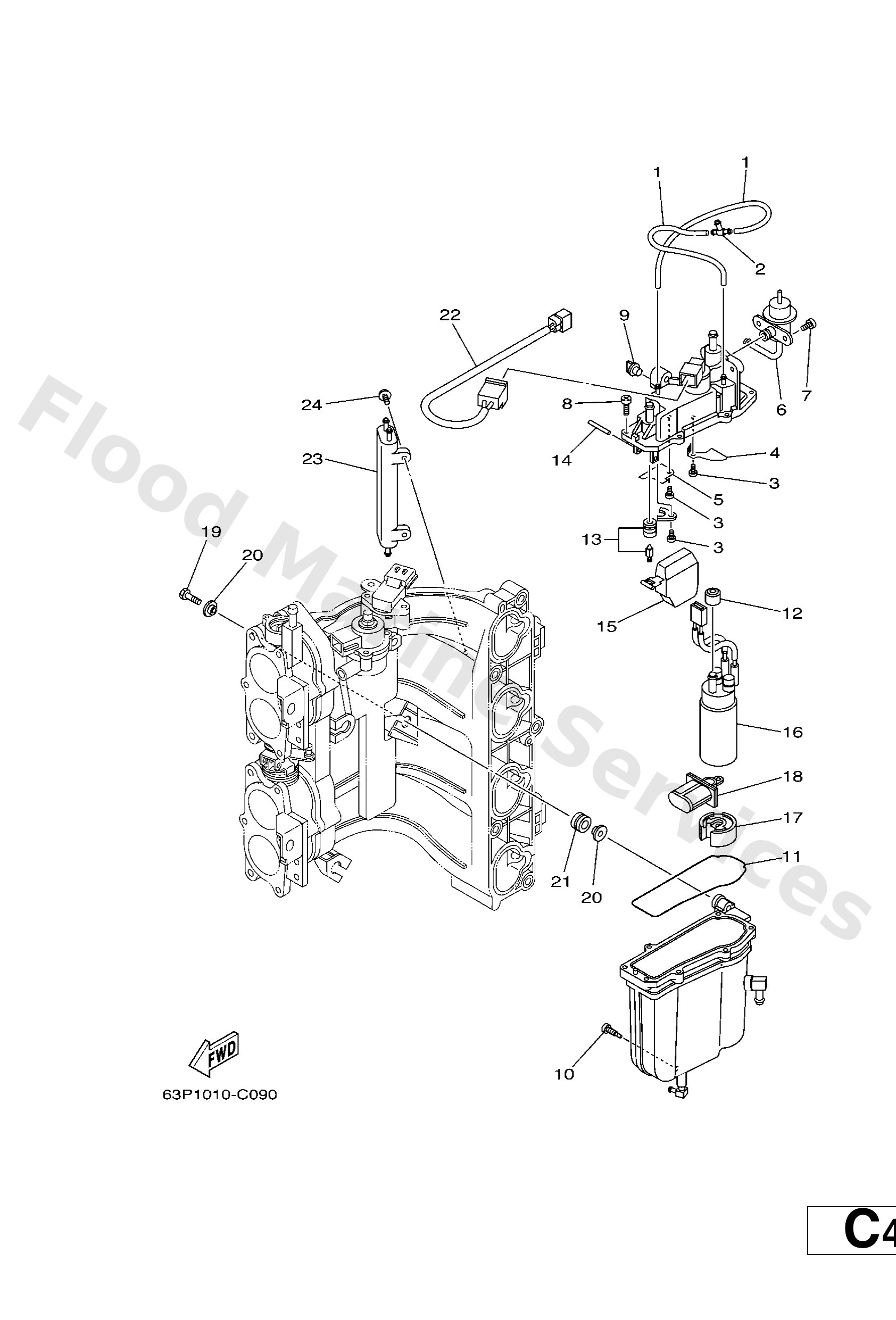

Diagram: FUEL INJECTION PUMP 1

Diagram

Parts List

Reference
Description
Price


1
63P1414800
Pipe
Loading…

↗
2
69J2437900
Pipe, joint 4
Loading…

↗
3
4SV2445300
Screw
Loading…

↗
4
63P2441R00
Plate, Baffle 1
Loading…

↗
5
63P2441T00
Plate, Baffle 2
Loading…

↗
6
63P1390600
Regulator, pressure
Loading…

↗
7
63P1456500
Screw
Loading…

↗
8
63P1456700
Screw
Loading…

↗
9
69J1422500
Cap
Loading…

↗
10
63P1419100
Plug, drain
Loading…

↗
11
63P1498400
Gasket, float chamber
Loading…

↗
12
68V1378100
Damper, pump
Loading…

↗
13
63P1454600
Valve, needle
Loading…

↗
14
68V1438600
Pin,float
Loading…

↗
15
63P1498500
Float
Loading…

↗
16
63P1390700
Fuel pump comp.
Loading…

↗
17
63P1378400
Cover, pump
Loading…

↗
18
63P1391500
Filter
Loading…

↗
19
63P1477700
Bolt
Loading…

↗
20
69J1371600
Collar
Loading…

↗
21
69J1359300
Damper
Loading…

↗
22
63P8259L00
Wire harness assembly 1
Loading…

↗
23
69J2184100
Cooler
Loading…

↗
24
68V1444600
Bolt
Loading…

↗
