Yamaha Outboard Parts - FUEL INJECTION PUMP 1 - FL150DET (2017) | Flood Marine

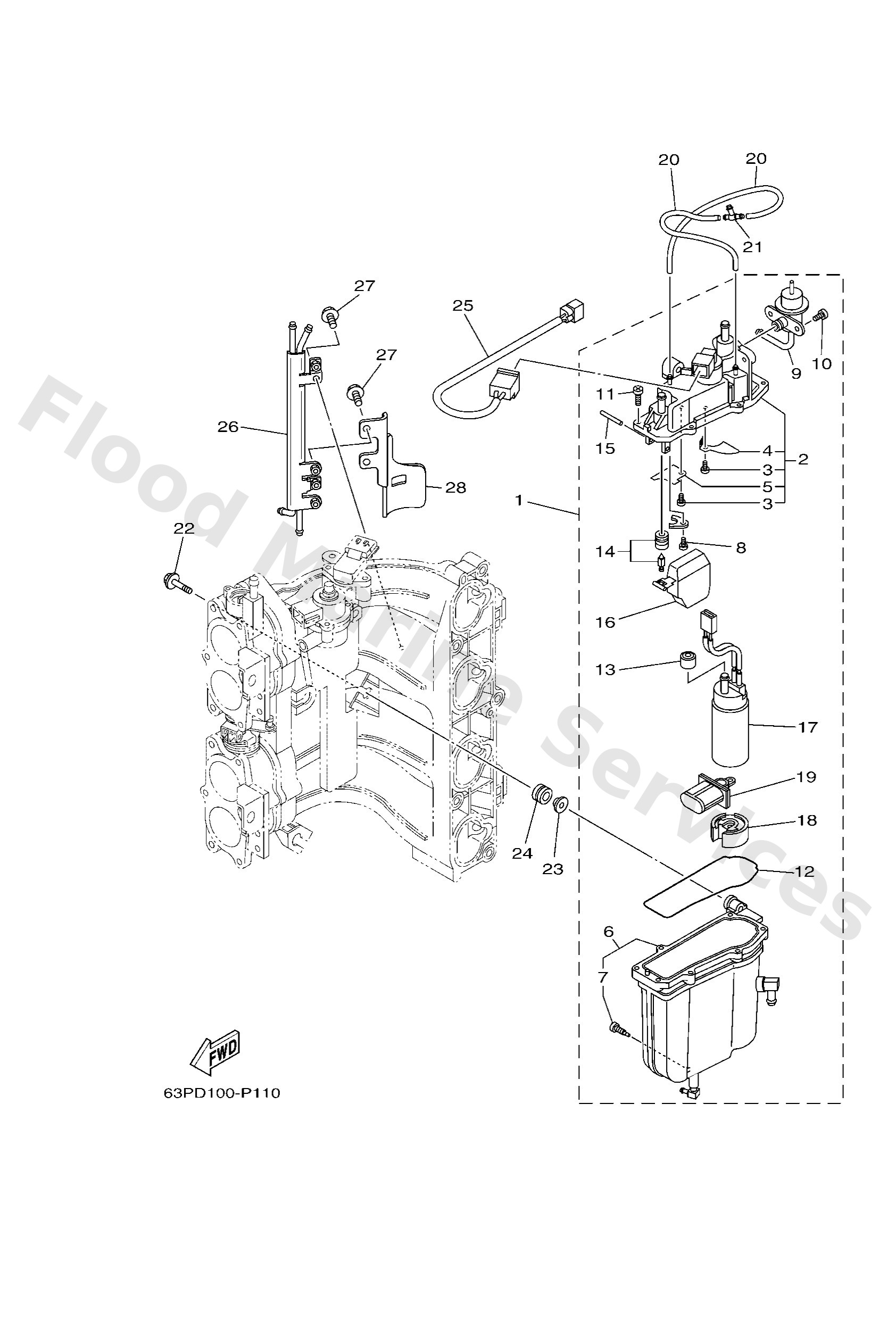

Diagram: FUEL INJECTION PUMP 1

Diagram

Parts List

Reference
Description
Price


1
63P1418020
Float chamber assembly
Loading…

↗
2
63P1418220
Cover, float chamber
Loading…

↗
3
4SV2445300
Screw
Loading…

↗
4
63P2411R00
Plate 1
Loading…

↗
5
63P2411T00
Plate 2
Loading…

↗
6
63P1418120
Body, float chamber 1
Loading…

↗
7
63P1419100
Plug, drain
Loading…

↗
9
63P1390600
Regulator, pressure
Loading…

↗
10
63P1456500
Screw
Loading…

↗
11
63P1456700
Screw
Loading…

↗
12
63P1498400
Gasket, float chamber
Loading…

↗
13
68V1378120
Grommet & collar set
Loading…

↗
14
63P1454600
Valve, needle
Loading…

↗
15
68V1438600
Pin,float
Loading…

↗
16
63P1498500
Float
Loading…

↗
17
63P1390703
Fuel pump comp.
Loading…

↗
18
63P1378400
Cover, pump
Loading…

↗
19
63P1391500
Filter
Loading…

↗
20
63P1414800
Pipe
Loading…

↗
21
69J2437900
Pipe, joint 4
Loading…

↗
22
9011906269
Bolt, with washer
Loading…

↗
23
63P1371600
Collar
Loading…

↗
24
6BM1359300
Damper
Loading…

↗
25
63P8259L00
Wire harness assembly 1
Loading…

↗
26
63P2184110
Cooler
Loading…

↗
27
63P1357300
Bolt 1
Loading…

↗
28
63P1388200
Cover 2
Loading…

↗
