Yamaha Outboard Parts - FUEL INJECTION PUMP 1 - FL200GET1 (2015) | Flood Marine

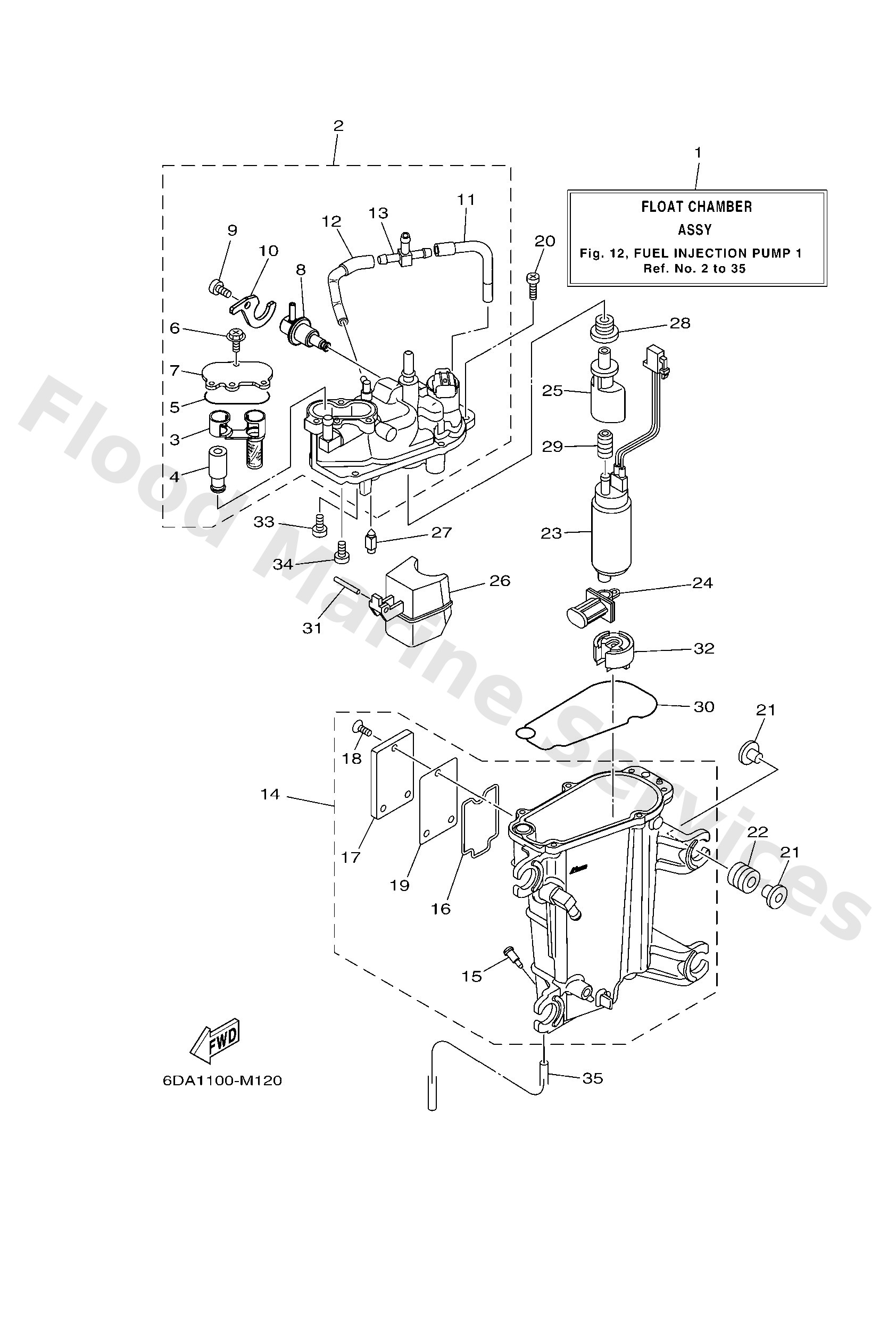

Diagram: FUEL INJECTION PUMP 1

Diagram

Parts List

Reference
Description
Price


1
6DA1418000
Float chamber assembly
Loading…

↗
2
6DA1418200
Cover, float chamber
Loading…

↗
3
6CB2450101
Filter, fuel
Loading…

↗
4
6CB2446000
Relief valve assembly
Loading…

↗
5
6CB1301600
O-ring
Loading…

↗
6
6CB1421600
Screw
Loading…

↗
7
6CB2421700
Cover
Loading…

↗
8
6CB1390601
Regulator, pressure
Loading…

↗
9
6CB1456400
Screw
Loading…

↗
10
6DA1414600
Plate
Loading…

↗
11
6DA1389200
Hose, air 2
Loading…

↗
12
6DA1389300
Hose, air 3
Loading…

↗
13
69J2437900
Pipe, joint 4
Loading…

↗
14
6DA1418100
Body, float chamber 1
Loading…

↗
15
6P21419100
Plug, drain
Loading…

↗
16
6CB1423900
Seal
Loading…

↗
17
6CB2445210
Cover
Loading…

↗
18
6CB1442901
Screw
Loading…

↗
19
6CB2448200
Gasket 1
Loading…

↗
20
63P1456700
Screw
Loading…

↗
21
69J1371600
Collar
Loading…

↗
22
6CB1359300
Damper
Loading…

↗
23
6P21390720
Fuel pump comp.
Loading…

↗
24
63P1391500
Filter
Loading…

↗
25
6AW1313200
Joint
Loading…

↗
26
6CB1498500
Float
Loading…

↗
27
6CB1454600
Valve, needle
Loading…

↗
28
6CB1447B00
Bush and joint set
Loading…

↗
29
6AW1378100
Damper, pump
Loading…

↗
30
6CB1498400
Gasket, float chamber
Loading…

↗
31
6P21438600
Pin, float
Loading…

↗
32
6AW1378400
Cover, pump
Loading…

↗
33
4SV2445300
Screw
Loading…

↗
34
9850704008
Screw, pan head(jg1)
Loading…

↗
35
6P21414900
Pipe
Loading…

↗
