FT60GET (2015)
FUEL INJECTION PUMP 1

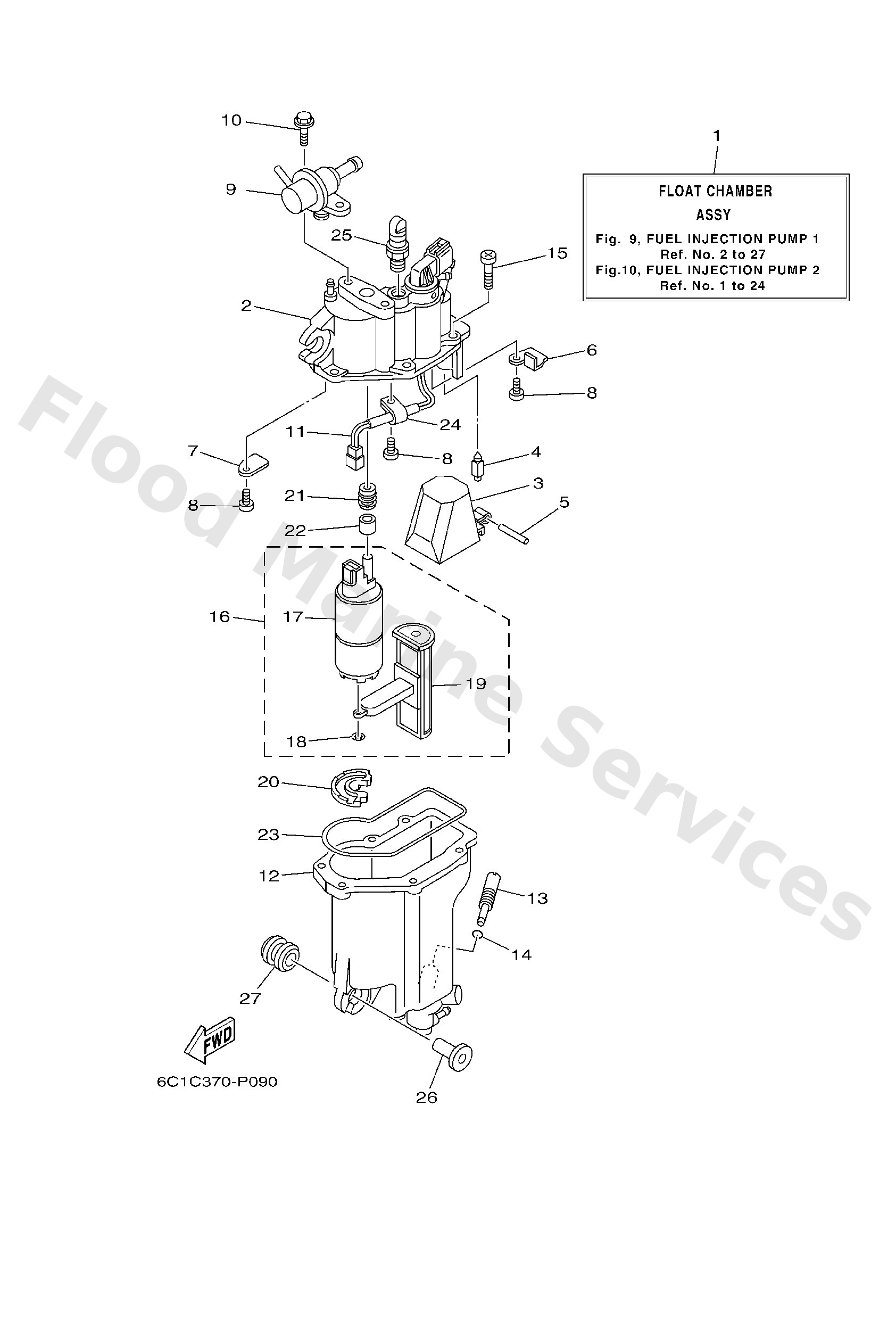

Diagram: FUEL INJECTION PUMP 1
Parts List
Reference
Description
Price
1
6C51418002
Go to P/N ) PE0-OM-170012
Float chamber assembly
Loading…
↗
2
6C51418210
Go to P/N ) PE0-OM-170012
Cover, float chamber
Loading…
↗
3
6C51498500
Float
Loading…
↗
4
6C51454610
Valve, needle
Loading…
↗
5
6C51438600
Pin, float
Loading…
↗
6
6C52441R10
Plate, baffle 1
Loading…
↗
7
6C52441T10
Plate, baffle 2
Loading…
↗
8
6C52445300
Screw
Loading…
↗
9
6C51390601
Regulator, pressure
Loading…
↗
10
6C52459200
Bolt
Loading…
↗
11
6C58722600
Wire harness assembly
Loading…
↗
12
6C51496010
Go to P/N ) PE0-OM-170012
Body assembly
Loading…
↗
13
6C51419100
Plug, drain
Loading…
↗
14
6C51439700
O-ring
Loading…
↗
15
6C51456700
Screw
Loading…
↗
16
6C51391010
Fuel pump assembly
Loading…
↗
17
6C51390700
Fuel pump comp.
Loading…
↗
18
6C51412710
Clip
Loading…
↗
19
6C51391500
Filter
Loading…
↗
20
6C51359300
Damper
Loading…
↗
21
6C51378100
Damper, pump
Loading…
↗
22
6C51371600
Collar
Loading…
↗
23
6C51498400
Go to P/N ) PE0-OM-170012
Gasket, float chamber
Loading…
↗
24
6C52133710
Clamp, cable
Loading…
↗
25
6C51422500
Cap
Loading…
↗
26
9038706M69
Collar (688)
Loading…
↗
27
9048009M12
Grommet (6a0)
Loading…
↗
?
6C51418021
6C5-14180-22
Loading…
↗
9
2
6C5-14182-10
Loading…
↗
