F100DET (2013)
FUEL INJECTION PUMP 2

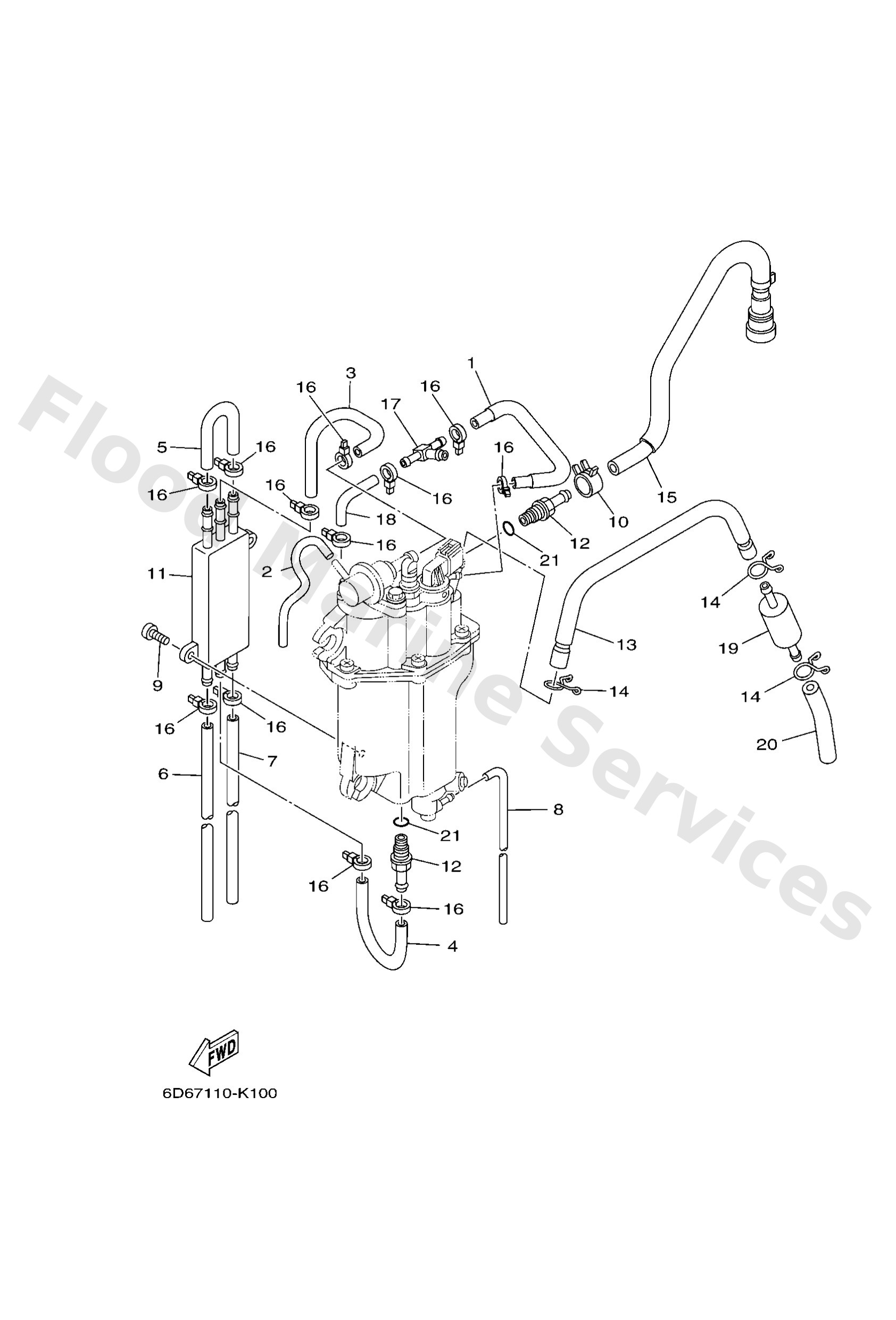

Diagram: FUEL INJECTION PUMP 2
Parts List
Reference
Description
Price
1
6D81354601
Hose 2
Loading…
↗
2
6D81354201
Hose, vacuum sensing 1
Loading…
↗
3
6C52432100
Pipe 10
Loading…
↗
4
6C52432200
Pipe 11
Loading…
↗
5
6C52432300
Pipe 12
Loading…
↗
6
6D82432401
Pipe 13
Loading…
↗
7
6D82432510
Pipe 14
Loading…
↗
8
6BG1414900
Pipe
Loading…
↗
9
6C52444400
Screw
Loading…
↗
10
6C51357700
Clip
Loading…
↗
11
6C52184100
Cooler
Loading…
↗
12
6C51425100
Nipple
Loading…
↗
13
6D81414800
Pipe
Loading…
↗
14
6C52438700
Clip
Loading…
↗
15
6D81397400
Pipe, fuel 4
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
6C52437900
Pipe, joint 4
Loading…
↗
18
6C51354500
Hose 1
Loading…
↗
19
6C52425100
Strainer 1
Loading…
↗
20
6D82451B00
Hose, fuel inlet
Loading…
↗
21
6C51373900
O-ring
Loading…
↗
