F150FET (2016)
FUEL INJECTION PUMP 2

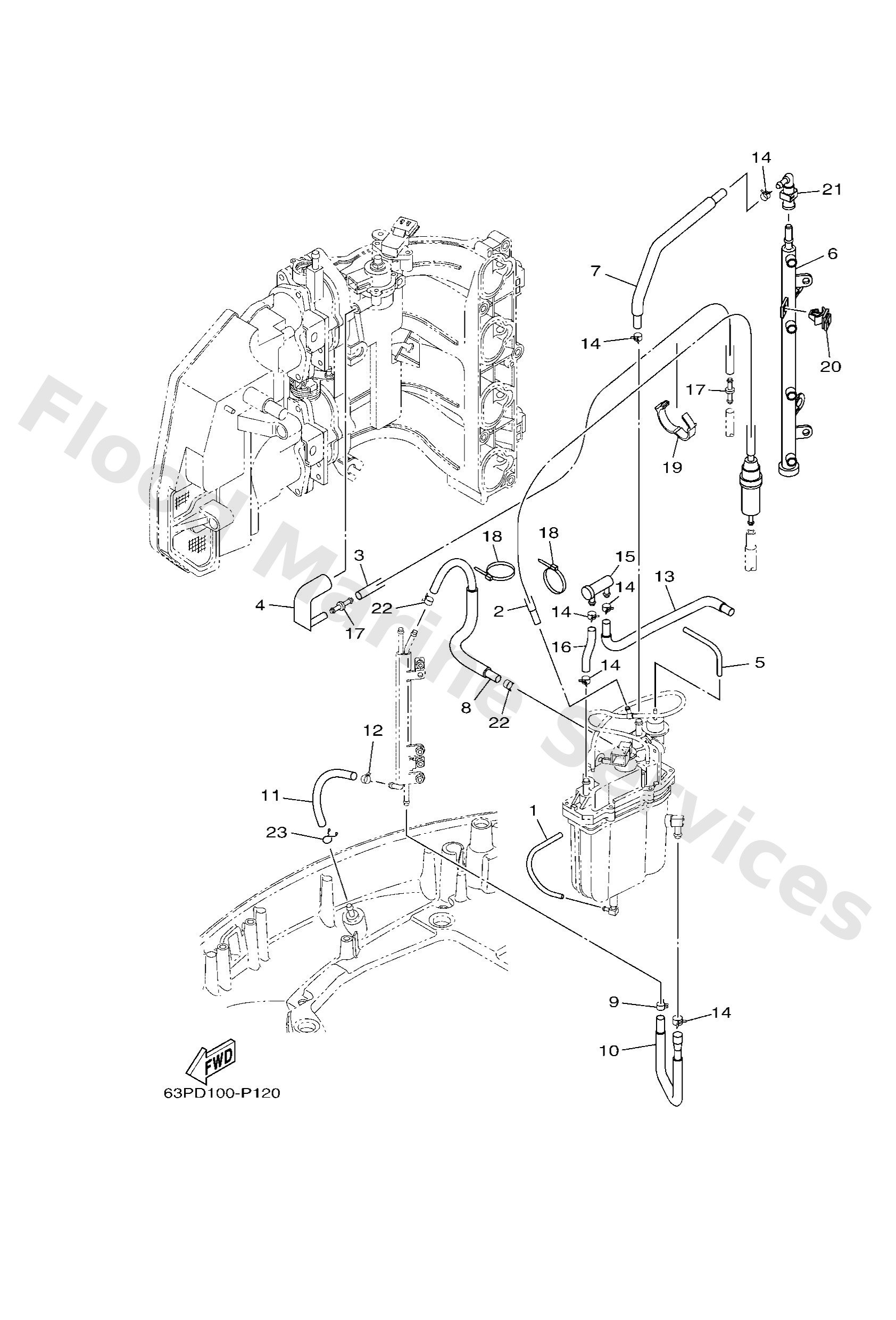

Diagram: FUEL INJECTION PUMP 2
Parts List
Reference
Description
Price
1
63P1414900
Pipe
Loading…
↗
2
63P1397110
WITH FILTER
Pipe, fuel 1 (with filter)
Loading…
↗
3
63P1354600
Hose 2
Loading…
↗
4
63P1354500
Hose 1
Loading…
↗
5
63P1353210
Hose, vacuum sensing 3
Loading…
↗
6
63P1316010
Delivery pipe assembly 1
Loading…
↗
7
63P1397440
Pipe, fuel 4
Loading…
↗
8
63P1397640
Pipe, fuel 6
Loading…
↗
9
68V2411M00
Clip
Loading…
↗
10
63P2431730
Pipe 7
Loading…
↗
11
63P2247B10
Hose 2
Loading…
↗
12
68V2451900
Clip
Loading…
↗
13
63P2432540
Pipe 14
Loading…
↗
14
68V1357700
Clip
Loading…
↗
15
69J2450110
Filter, fuel
Loading…
↗
16
63P1397540
Pipe, fuel 5
Loading…
↗
17
6P21375800
Pipe, joint
Loading…
↗
18
68V2481H00
Clamp
Loading…
↗
19
9046426001
Clamp
Loading…
↗
20
9046412002
Clamp
Loading…
↗
21
6AW2430000
Fuel pipe joint
Loading…
↗
22
63P2451900
Clip
Loading…
↗
23
9046709M09
Clip(6k8)
Loading…
↗
