F350AET (2008)
FUEL INJECTION PUMP 2

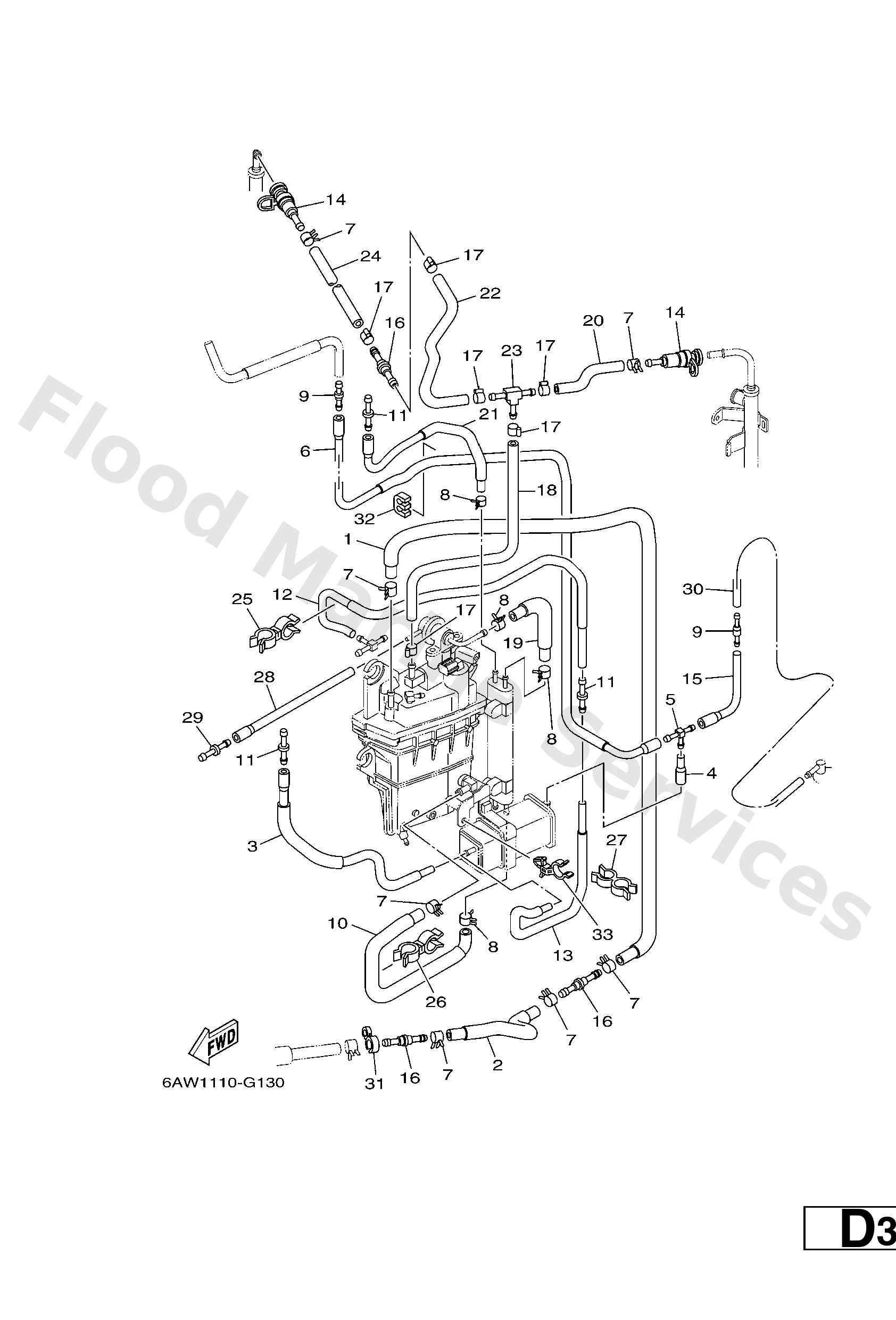

Diagram: FUEL INJECTION PUMP 2
Parts List
Reference
Description
Price
1
6AW2431600
-
Loading…
↗
2
6AW2431700
-
Loading…
↗
3
6AW1475H00
Pipe 5
Loading…
↗
4
6AW1354500
Hose 1
Loading…
↗
5
6882437800
Pipe, joint
Loading…
↗
6
6AW1354800
Hose, Air 4
Loading…
↗
7
68V1357700
Clip
Loading…
↗
8
68V2451900
Clip
Loading…
↗
9
6E52174400
Breezer
Loading…
↗
10
6AW2431500
-
Loading…
↗
11
6P21410F00
Nipple 1
Loading…
↗
12
6AW1475A00
Pipe 1
Loading…
↗
13
6AW1475E00
Pipe 2
Loading…
↗
14
60E2430001
Fuel pipe joint
Loading…
↗
15
6AW1354700
Hose 3
Loading…
↗
16
6P22446100
Pipe, Joint
Loading…
↗
17
68V2438700
Clip
Loading…
↗
18
6AW1397100
Pipe, fuel 1
Loading…
↗
19
6AW1397600
Pipe, Fuel 6
Loading…
↗
20
6AW1397400
Pipe, fuel 4
Loading…
↗
21
6AW2247A00
-
Loading…
↗
22
6AW1397300
Pipe, fuel 3
Loading…
↗
23
6AW2446100
Pipe, joint
Loading…
↗
24
6AW1397200
Pipe, fuel 2
Loading…
↗
25
6AW2417H00
-
Loading…
↗
26
6AW2417J00
-
Loading…
↗
27
6B61248600
Clip
Loading…
↗
28
6AW1354300
Hose, Air
Loading…
↗
29
6P22437600
Pipe, joint 1
Loading…
↗
30
9044508033
Hose
Loading…
↗
31
9046413M34
Clamp(6r3)
Loading…
↗
32
9046407006
Clamp
Loading…
↗
33
9046417006
Clamp
Loading…
↗
