F350NSA2 (2024)
FUEL INJECTION PUMP 2

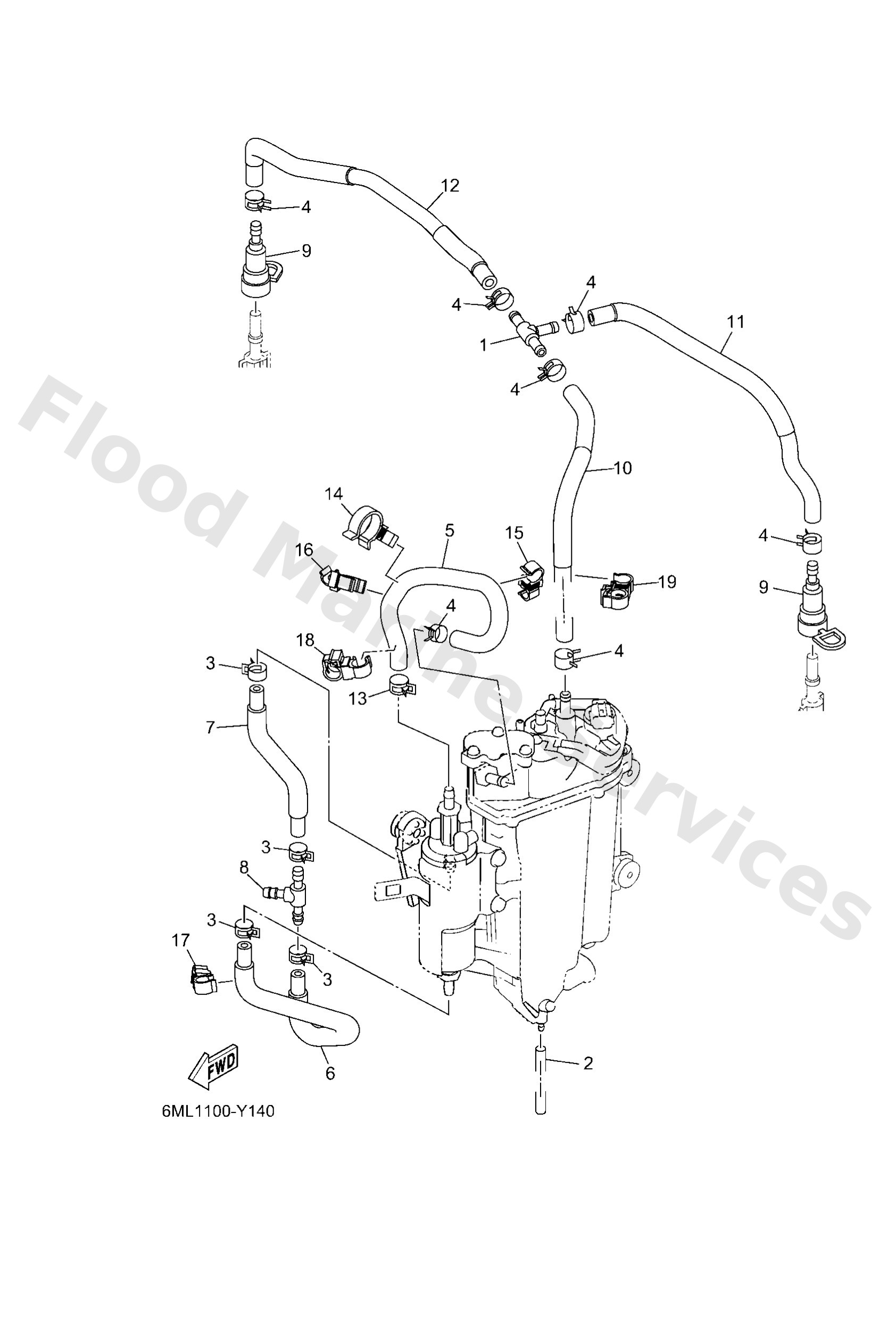

Diagram: FUEL INJECTION PUMP 2
Parts List
Reference
Description
Price
1
6CB2446100
Pipe, joint
Loading…
↗
2
6P21414900
Pipe
Loading…
↗
3
90467141A2
Clip
Loading…
↗
4
68V1357701
Clip
Loading…
↗
5
6CB2432400
Pipe 13
Loading…
↗
6
6CB2431700
Pipe 7
Loading…
↗
7
6CB2432300
Pipe 12
Loading…
↗
8
6E52437800
Pipe, joint 3
Loading…
↗
9
60E2430001
Fuel pipe joint
Loading…
↗
10
6ML1397100
Pipe, fuel 1
Loading…
↗
11
6ML1397400
Pipe, fuel 4
Loading…
↗
12
6ML1397200
Pipe, fuel 2
Loading…
↗
13
90467140A9
Clip
Loading…
↗
14
9046423001
Clamp
Loading…
↗
15
9046412010
Clamp
Loading…
↗
16
9046413013
Clamp
Loading…
↗
17
9046412009
Clamp
Loading…
↗
18
9046412012
Clamp
Loading…
↗
