F40FET (2018)
FUEL INJECTION PUMP 2

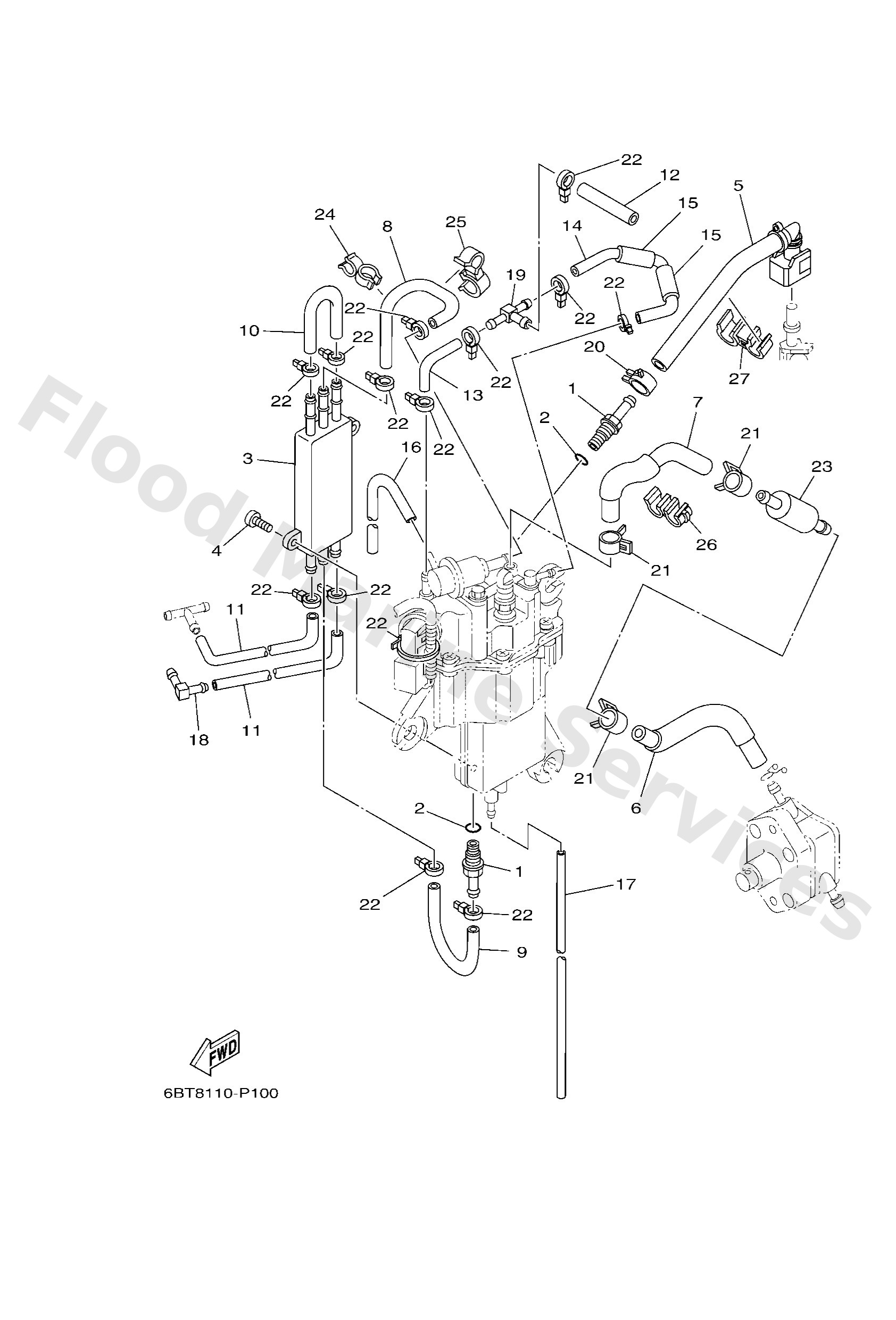

Diagram: FUEL INJECTION PUMP 2
Parts List
Reference
Description
Price
1
6C51425100
Nipple
Loading…
↗
2
6C51373900
O-ring
Loading…
↗
3
6C52184101
Cooler
Loading…
↗
4
6C52444400
Screw
Loading…
↗
5
6BG1397400
Pipe, fuel 4
Loading…
↗
6
6BG2451B00
Hose, fuel inlet
Loading…
↗
7
6BG1414800
Pipe
Loading…
↗
8
6BG2432100
Pipe 10
Loading…
↗
9
6BG2432200
Pipe 11
Loading…
↗
10
6BG2432300
Pipe 12
Loading…
↗
11
6BG2432400
Pipe 13
Loading…
↗
12
6C51354700
Hose 3
Loading…
↗
13
6BG1354500
Hose 1
Loading…
↗
14
6BG1354600
Hose 2
Loading…
↗
15
6BG1354800
Hose, air 4
Loading…
↗
16
6BG1354200
Hose, vacuum sensing 1
Loading…
↗
17
6BG1414900
Pipe
Loading…
↗
18
6C51410F00
Connector
Loading…
↗
19
6C52437900
Pipe, joint 4
Loading…
↗
20
6C51357700
Clip
Loading…
↗
21
6BG2438700
Clip
Loading…
↗
22
9046511M10
Clamp
Loading…
↗
23
6C52425100
Strainer 1
Loading…
↗
24
9046412006
Clamp
Loading…
↗
25
9046412010
Clamp
Loading…
↗
26
9046412224
Clamp(4pe)
Loading…
↗
27
9046415007
Clamp
Loading…
↗
