F40GET1 (2020)
FUEL INJECTION PUMP 2

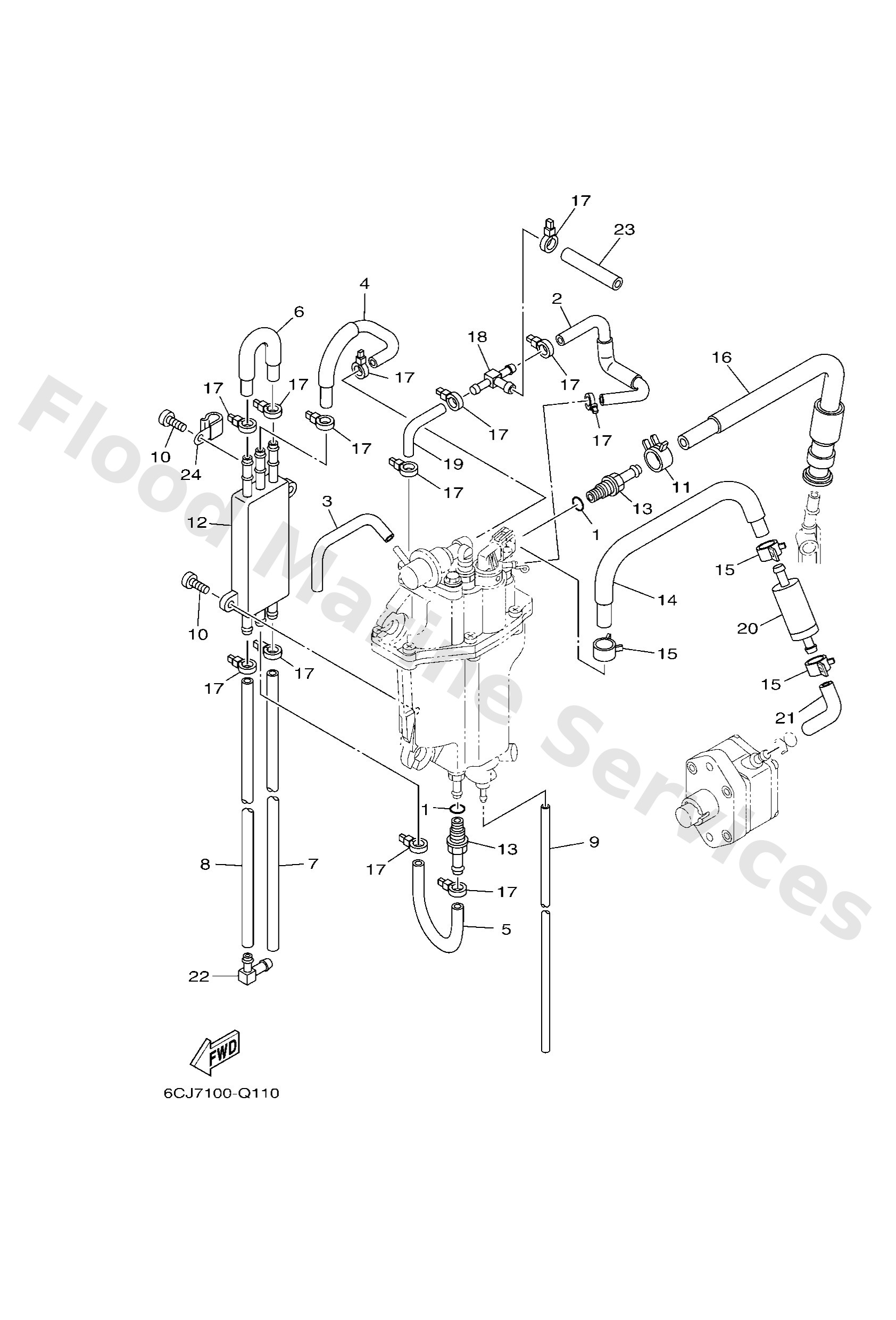

Diagram: FUEL INJECTION PUMP 2
Parts List
Reference
Description
Price
1
6C51373900
O-ring
Loading…
↗
2
6CJ1354600
Hose 2
Loading…
↗
3
6C51354200
Hose, vacuum sensing 1
Loading…
↗
4
6CJ2432100
Pipe 10
Loading…
↗
5
6C52432200
Pipe 11
Loading…
↗
6
6CJ2432300
Pipe 12
Loading…
↗
7
6CJ2432400
Pipe 13
Loading…
↗
8
6CJ2432500
Pipe 14
Loading…
↗
9
6BG1414900
Pipe
Loading…
↗
10
6C52444400
Screw
Loading…
↗
11
6C51357700
Clip
Loading…
↗
12
6C52184101
Cooler
Loading…
↗
13
6C51425100
Nipple
Loading…
↗
14
6C51414800
Pipe
Loading…
↗
15
6BG2438700
Clip
Loading…
↗
16
6CJ1397410
Pipe, fuel 4
Loading…
↗
17
9046511M10
Clamp
Loading…
↗
18
6C52437900
Pipe, joint 4
Loading…
↗
19
6BG1354500
Hose 1
Loading…
↗
20
6C52425100
Strainer 1
Loading…
↗
21
6CJ2451B00
Hose, fuel inlet
Loading…
↗
22
6C51410F00
Connector
Loading…
↗
23
6C51354700
Hose 3
Loading…
↗
24
9046508M83
Clamp
Loading…
↗
