F50FED (2010)
FUEL INJECTION PUMP 2

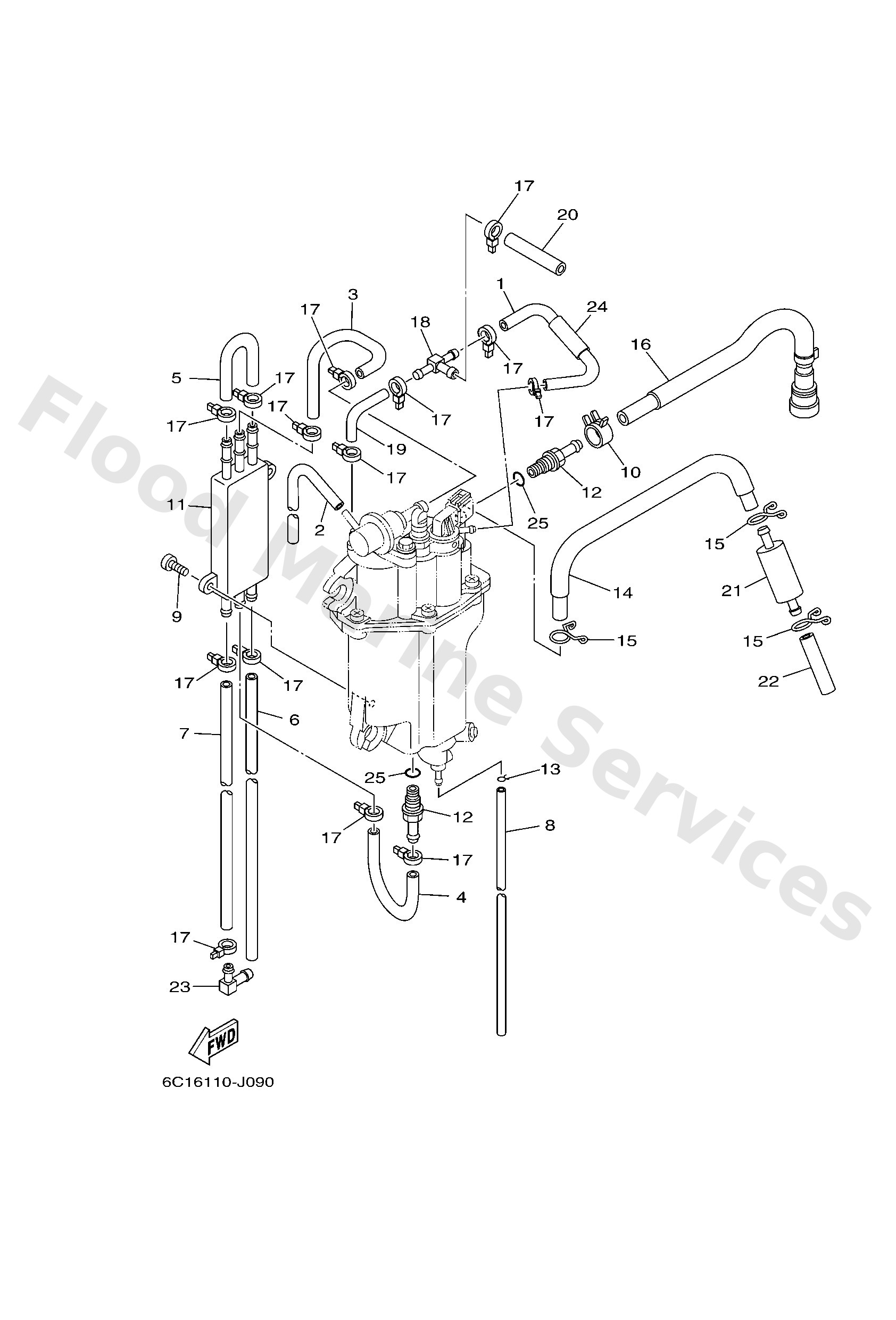

Diagram: FUEL INJECTION PUMP 2
Parts List
Reference
Description
Price
1
6C51354600
Hose 2
Loading…
↗
2
6C51354200
Hose, vacuum sensing 1
Loading…
↗
3
6C52432100
Pipe 10
Loading…
↗
4
6C52432200
Pipe 11
Loading…
↗
5
6C52432300
Pipe 12
Loading…
↗
6
6C52432400
Pipe 13 (L150)
Loading…
↗
7
6C52432500
Pipe 14 (L110)
Loading…
↗
8
6C51414900
Pipe (L200)
Loading…
↗
9
6C52444400
Screw
Loading…
↗
10
6C51357700
Clip
Loading…
↗
11
6C52184100
Cooler
Loading…
↗
12
6C51425100
Nipple
Loading…
↗
13
6C52411M00
Clip
Loading…
↗
14
6C51414800
Pipe
Loading…
↗
15
6C52438700
Clip
Loading…
↗
16
6C51397400
Pipe, fuel 4
Loading…
↗
17
9046511M10
Clamp
Loading…
↗
18
6C52437900
Pipe, joint 4
Loading…
↗
19
6C51354500
Hose 1
Loading…
↗
20
6C51354700
Hose 3
Loading…
↗
21
6C52425100
Strainer 1
Loading…
↗
22
6C52451B00
Hose, fuel inlet
Loading…
↗
23
6C51410F00
Connector
Loading…
↗
24
6C51354800
Hose, air 4
Loading…
↗
25
6C51373900
O-ring
Loading…
↗
