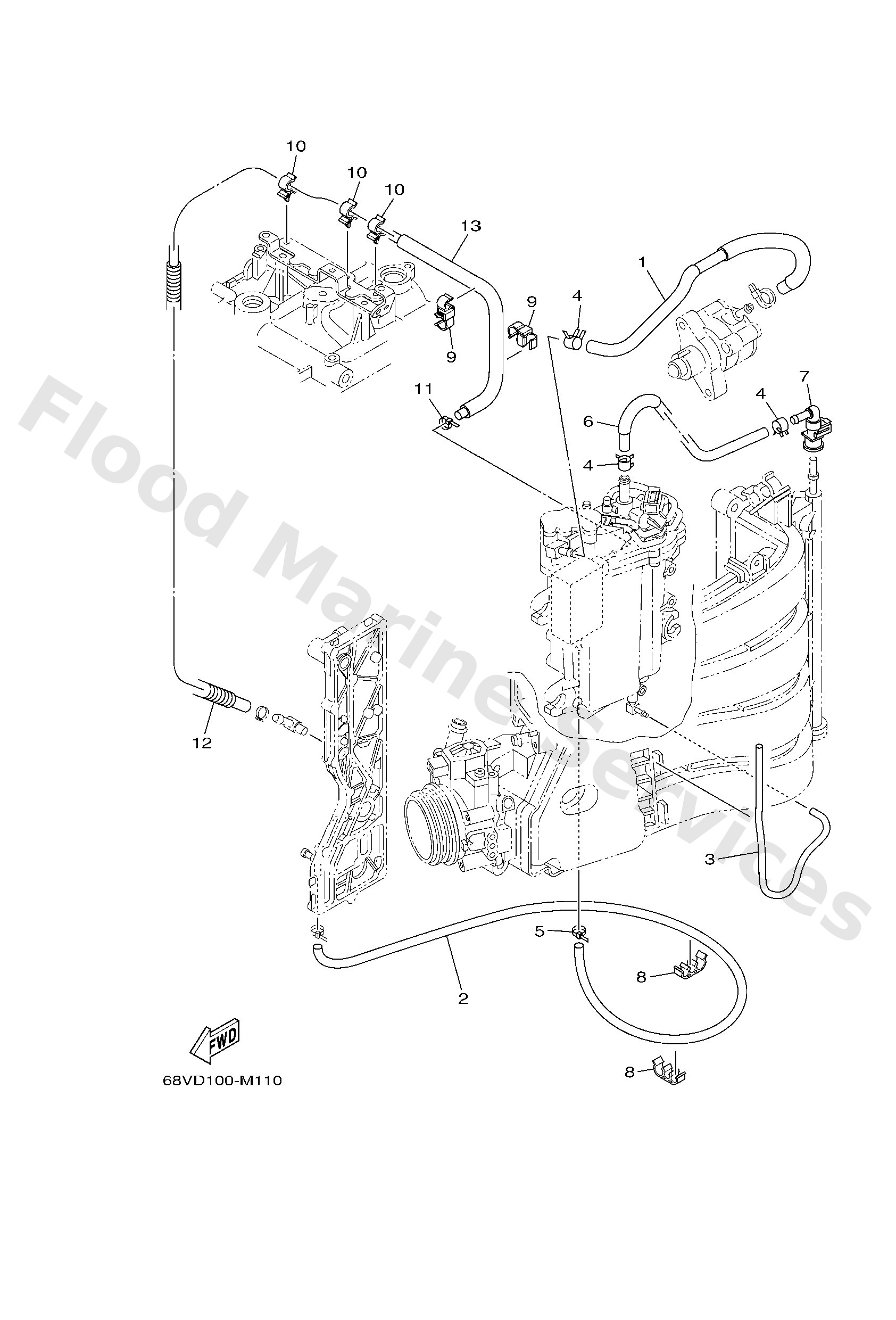

Diagram: FUEL INJECTION PUMP 2

Diagram

Parts List

Reference
Description
Price


1
68V2432400 FOR F(L)115AET
Pipe 13
Loading…

↗
1
68V2432410 FOR F(L)115AET1
Pipe 13
Loading…

↗
2
68V1248200
Pipe 2
Loading…

↗
3
6AW1419700
Pipe
Loading…

↗
4
68V1357700
Clip
Loading…

↗
5
9046511M10
Clamp
Loading…

↗
6
68V1397130
Pipe, fuel 1
Loading…

↗
7
6AW2430000
Fuel pipe joint
Loading…

↗
8
9046411008
Clamp
Loading…

↗
9
9046412010
Clamp
Loading…

↗
10
9046409129
Clamp(3ld)
Loading…

↗
12
68V2486410
Tube
Loading…

↗
13
68V1248421
Pipe 4
Loading…

↗
