Yamaha Outboard Parts - FUEL INJECTION PUMP 2 - FL200GET (2016) | Flood Marine

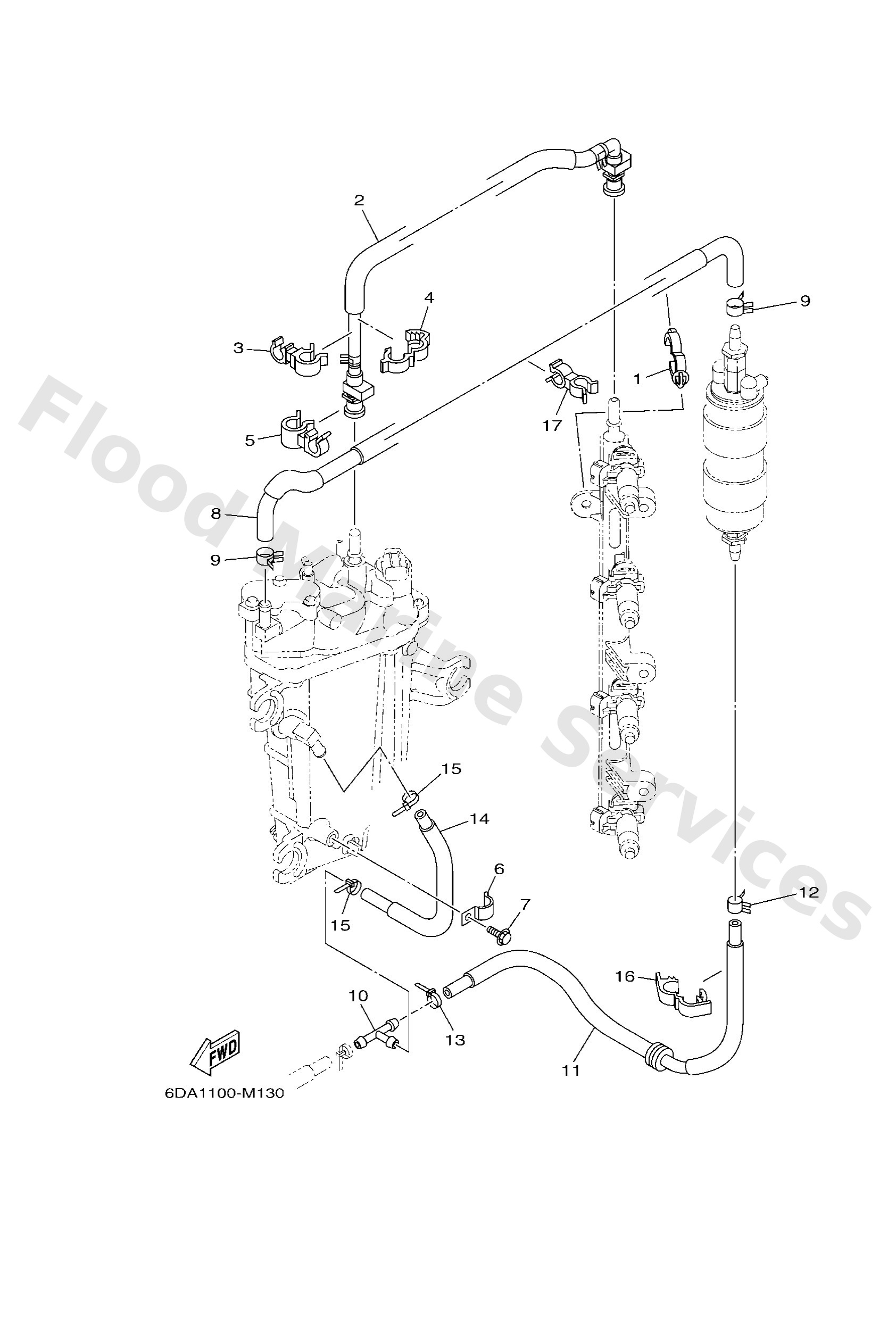

Diagram: FUEL INJECTION PUMP 2

Diagram

Parts List

Reference
Description
Price


1
9046420181
Clamp(4ap)
Loading…

↗
2
6DA2431000
Fuel pipe assembly
Loading…

↗
3
9046412010
Clamp
Loading…

↗
4
9046416003
Clamp
Loading…

↗
5
9046415007
Clamp
Loading…

↗
6
9046508M63
Clamp(61u)
Loading…

↗
7
9589506010
Bolt, flange(7ht)
Loading…

↗
8
6DA2432400
Pipe 13
Loading…

↗
9
90467120A7
Clip
Loading…

↗
10
6E52437800
Pipe, joint 3
Loading…

↗
11
6DA2431700
Pipe 7
Loading…

↗
13
9046511M10
Clamp
Loading…

↗
14
6DA2432300
Pipe 12
Loading…

↗
16
9046418004
Clamp
Loading…

↗
17
9046413260
Clamp
Loading…

↗
