Yamaha Outboard Parts - FUEL INJECTION PUMP 2 - FL225AET (2003) | Flood Marine

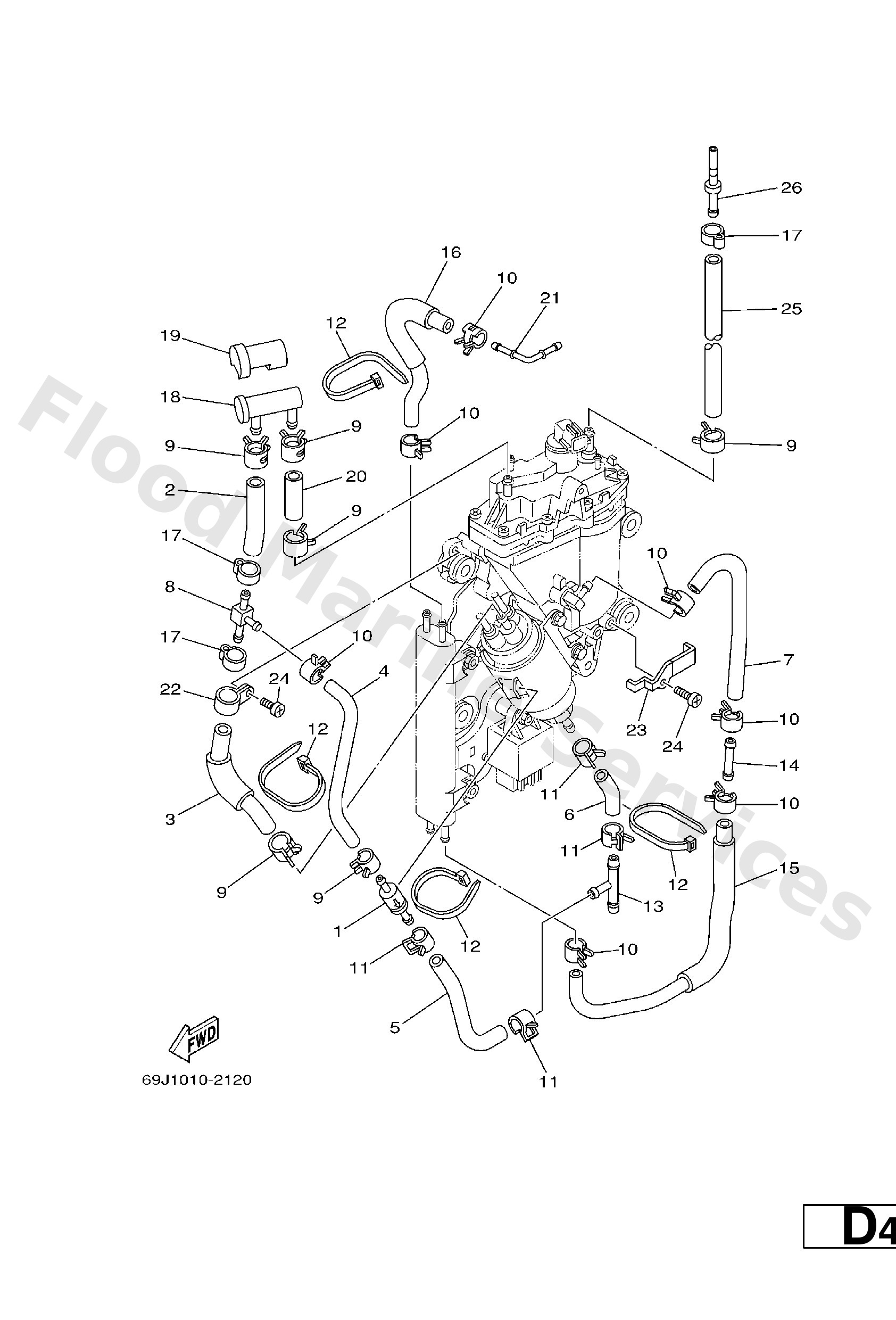

Diagram: FUEL INJECTION PUMP 2

Diagram

Parts List

Reference
Description
Price


1
69J−24460−00
Relief valve assembly
Loading…

↗
1
69J2446000
Relief valve assembly
Loading…

↗
2
69J2432400
-
Loading…

↗
2
69J−24324−00
12 − 2
Loading…

↗
3
69J2432100
-
Loading…

↗
3
69J−24321−00
12 − 3
Loading…

↗
4
69J−24322−00
12 − 4
Loading…

↗
4
69J2432200
-
Loading…

↗
5
69J−24323−00
Pipe 12
Loading…

↗
5
69J2432300
Pipe 12
Loading…

↗
6
69J2431700
Pipe 7
Loading…

↗
6
69J−24317−00
Pipe 7
Loading…

↗
7
69J2431600
-
Loading…

↗
7
69J−24316−00
12 − 7
Loading…

↗
8
69J2453700
-
Loading…

↗
8
69J−24537−00
Nipple
Loading…

↗
9
68V−13577−00
Clip
Loading…

↗
9
68V--13577--00
Clip
Loading…

↗
10
68V−24519−00
Clip
Loading…

↗
10
68V--24519--00
Clip
Loading…

↗
11
69J--14137--00
Clip
Loading…

↗
11
69J−14137−00
Clip
Loading…

↗
12
68V--2481H--00
Clamp
Loading…

↗
12
68V−2481H−00
Clamp
Loading…

↗
13
6E5--24378--00
Pipe, joint 3
Loading…

↗
13
6E5−24378−00
Pipe, joint 3
Loading…

↗
14
69J−24461−00
Pipe, joint
Loading…

↗
14
69J2446100
Pipe, joint
Loading…

↗
15
69J2431500
-
Loading…

↗
15
69J−24315−00
12 − 15
Loading…

↗
16
69J1397600
Pipe, fuel 6
Loading…

↗
16
69J−13976−00
Pipe, fuel 6
Loading…

↗
17
68V−24387−00
Clip
Loading…

↗
17
68V2438700
Clip
Loading…

↗
18
69J−24501−00
Filter, fuel
Loading…

↗
18
69J2450100
Filter, fuel
Loading…

↗
19
69J−24599−00
Cap
Loading…

↗
19
69J2459900
-
Loading…

↗
20
69J−24325−00
12 − 20
Loading…

↗
20
69J2432500
Pipe 14
Loading…

↗
21
69J−1410F−00
Nipple 1
Loading…

↗
21
69J1410F00
Nipple 1
Loading…

↗
22
69J2436600
Clamp, fuel pipe 1
Loading…

↗
22
69J−24366−00
Clamp, fuel pipe 1
Loading…

↗
23
69J2436700
Clamp, fuel pipe 2
Loading…

↗
23
69J−24367−00
Clamp, fuel pipe 2
Loading…

↗
24
9858205008
Screw, pan head (7g3)
Loading…

↗
24
98582−05008
Screw, pan head (7g3)
Loading…

↗
25
69J1397400
Pipe, fuel 4
Loading…

↗
25
69J−13974−00
Pipe, fuel 4
Loading…

↗
26
69J2438100
Set bar, fuel joint
Loading…

↗
26
69J−24381−00
Set bar, fuel joint
Loading…

↗
