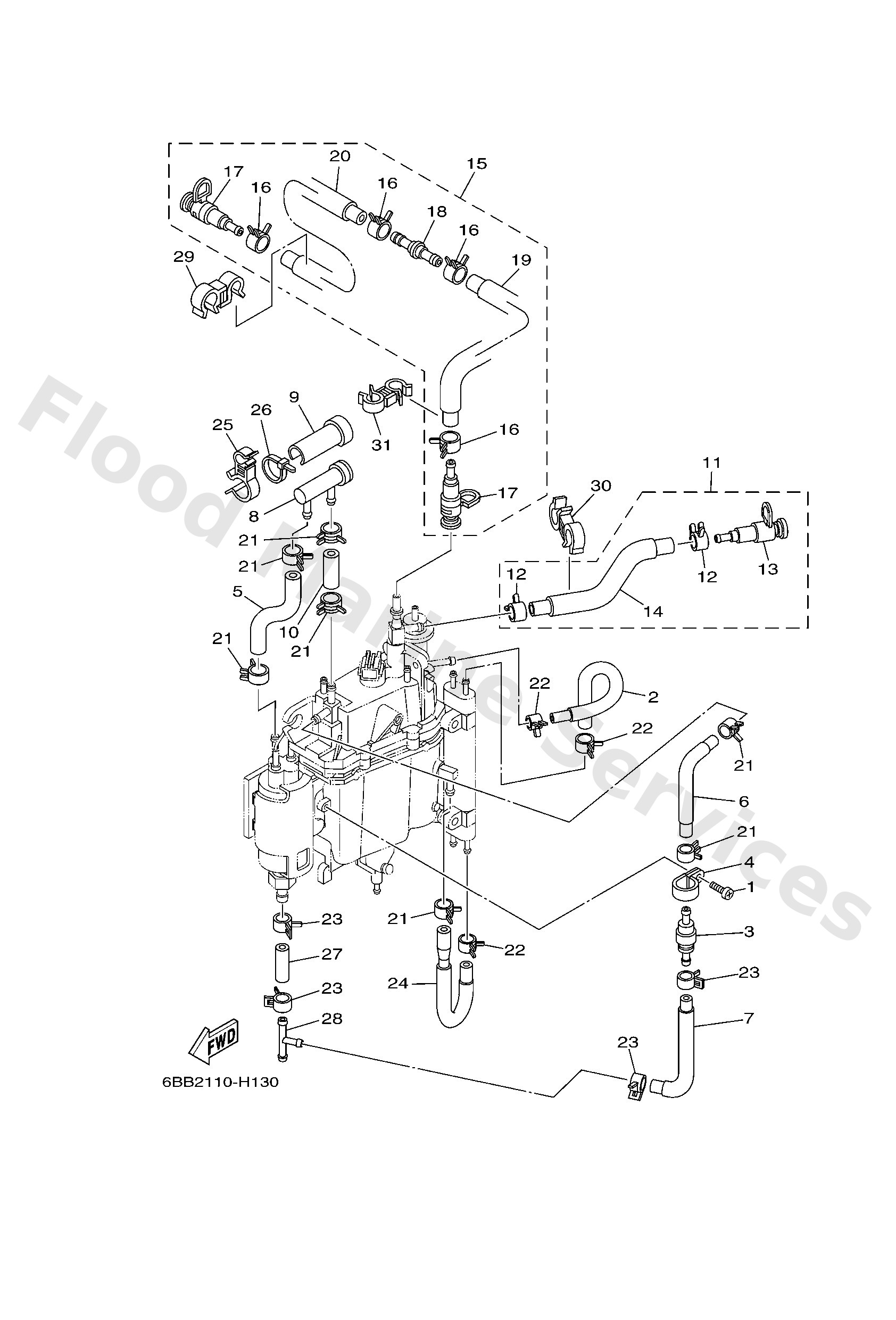

Diagram: FUEL INJECTION PUMP 2

Diagram

Parts List

Reference
Description
Price


1
9858005008
Screw, pan head (7g3)
Loading…

↗
2
6P21397600
Pipe, Fuel 6
Loading…

↗
3
69J2446000
Relief valve assembly
Loading…

↗
4
6P22436700
Clamp, Fuel Pipe 2
Loading…

↗
5
6P22432400
Pipe 13
Loading…

↗
6
6P22432200
Pipe 11
Loading…

↗
7
6P22432300
Pipe 12
Loading…

↗
8
69J2450110
Filter, fuel
Loading…

↗
9
69J2459910
Cap
Loading…

↗
10
69J2432500
-
Loading…

↗
11
6P21257A10
Hose assembly 1
Loading…

↗
12
68V1357700
Clip
Loading…

↗
13
60E2430001
Fuel pipe joint
Loading…

↗
14
6P21397410
Pipe, Fuel 4
Loading…

↗
15
6P21257E10
Hose assembly 2
Loading…

↗
18
6P22446110
Pipe, joint
Loading…

↗
19
6P21397310
Pipe, Fuel 3
Loading…

↗
20
6P21397210
Pipe, fuel 2
Loading…

↗
22
68V2451900
Clip
Loading…

↗
23
69J1413700
Clip
Loading…

↗
24
6P22431500
Pipe 5
Loading…

↗
25
6P22417H00
Clamp 1
Loading…

↗
26
68V2481H00
Clamp
Loading…

↗
27
6P22431700
Pipe 7
Loading…

↗
28
6E52437800
Pipe, joint 3
Loading…

↗
29
9046412010
Clamp
Loading…

↗
30
9046418005
Clamp
Loading…

↗
31
9046412009
Clamp
Loading…

↗
