Yamaha Outboard Parts - FUEL INJECTION PUMP 2 - FL350AET (2014) | Flood Marine

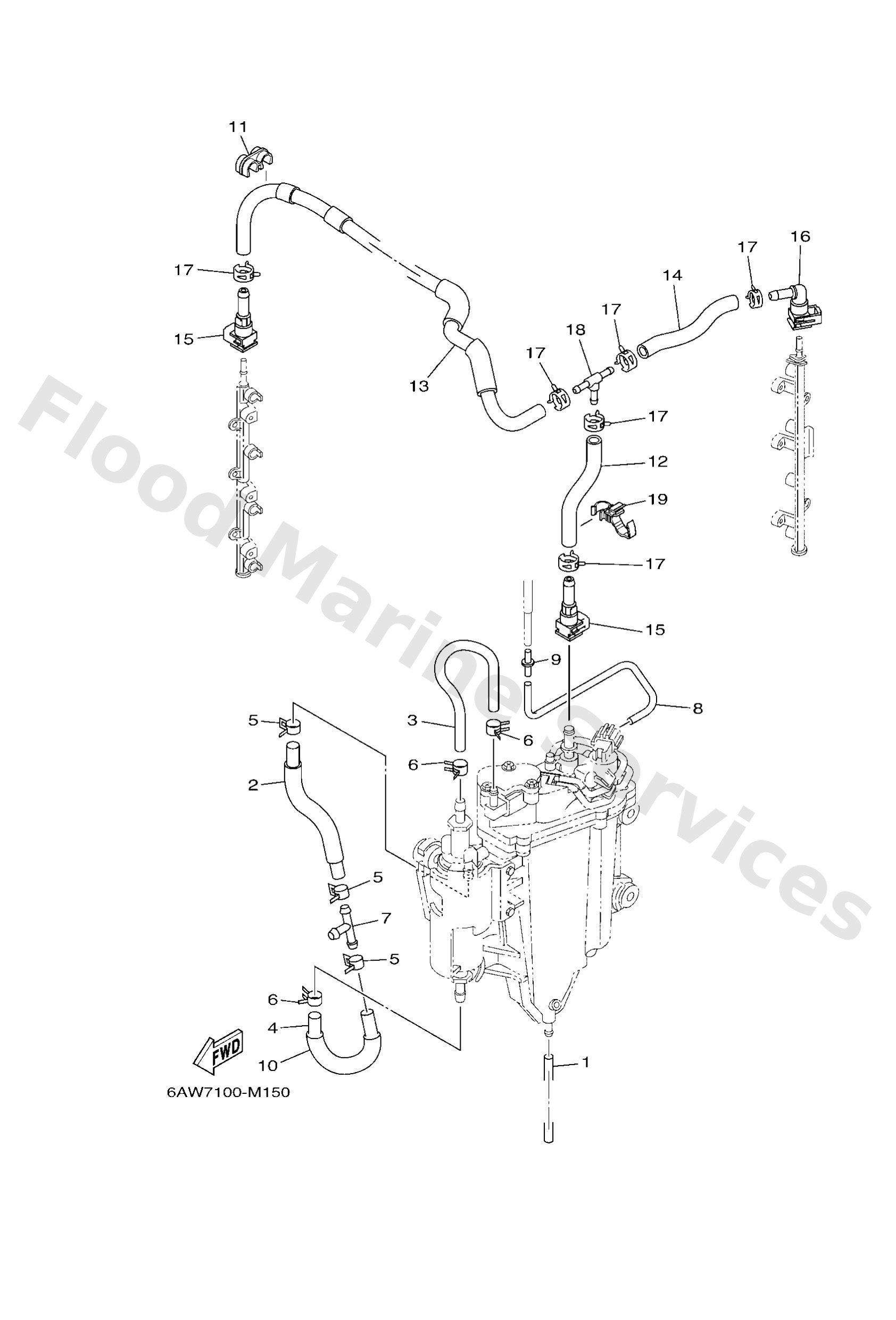

Diagram: FUEL INJECTION PUMP 2

Diagram

Parts List

Reference
Description
Price


1
6P21414900
Pipe
Loading…

↗
2
6AW2432320
Pipe 12
Loading…

↗
3
6AW2432420
Pipe 13
Loading…

↗
4
6AW2431720
Pipe 7
Loading…

↗
5
69J1413700
Clip
Loading…

↗
6
68V1357700
Clip
Loading…

↗
7
6E52437800
Pipe, joint 3
Loading…

↗
8
6AW1353200
Hose, vacuum sensing 3
Loading…

↗
9
6P22437600
Pipe, joint 1
Loading…

↗
10
9044618002
Hose
Loading…

↗
11
9046412224
Clamp(4pe)
Loading…

↗
12
6AW1397130
Pipe, fuel 1
Loading…

↗
13
6AW1397330
Pipe, fuel 3
Loading…

↗
14
6AW1397430
Pipe, fuel 4
Loading…

↗
15
6AW2430010
Fuel pipe joint
Loading…

↗
16
6AW2430000
Fuel pipe joint
Loading…

↗
18
6CB2446100
Pipe, joint
Loading…

↗
19
9046412012
Clamp
Loading…

↗
