Yamaha Outboard Parts - FUEL INJECTION PUMP 2 - VF115B (2025) | Flood Marine

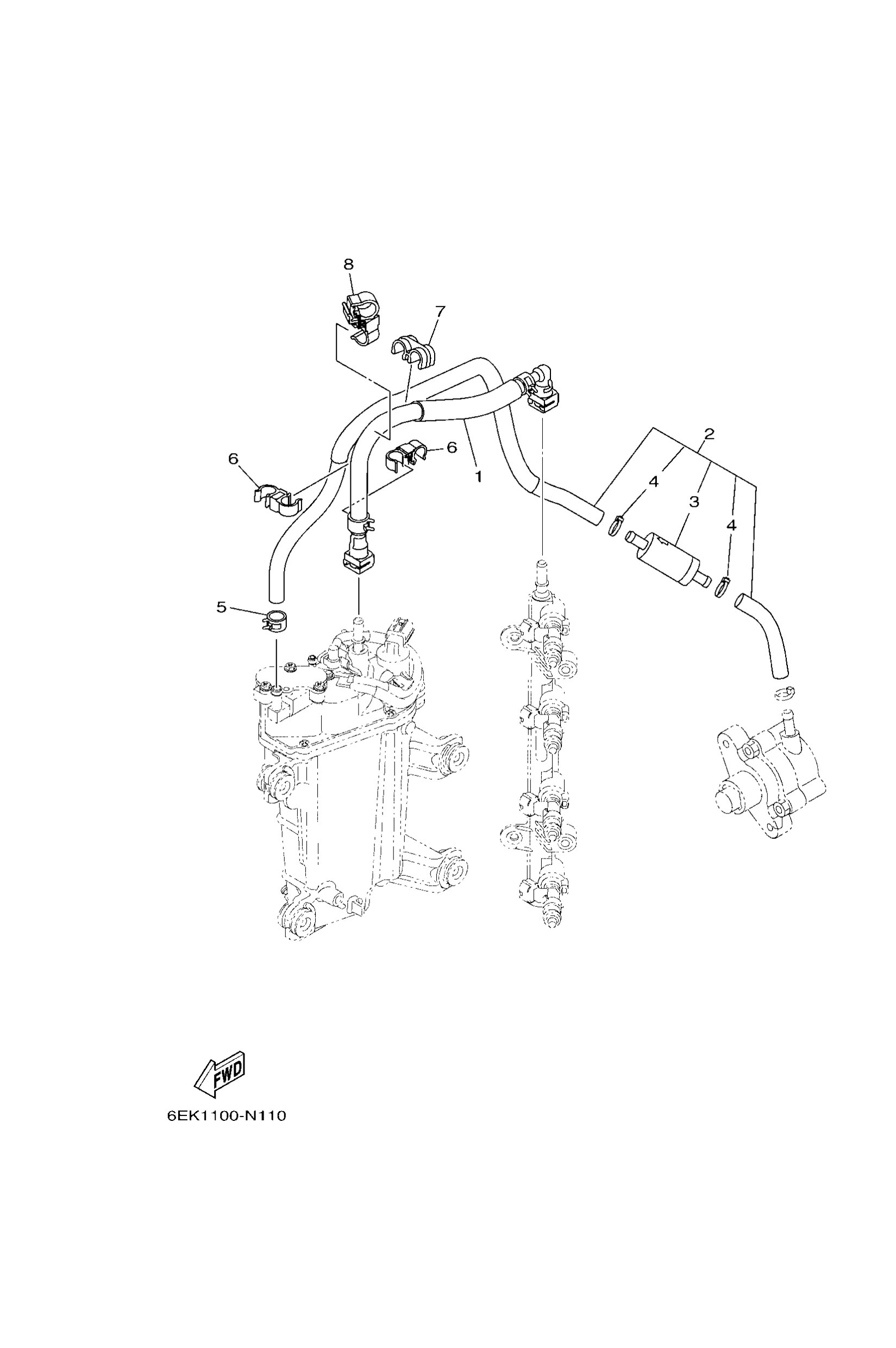

Diagram: FUEL INJECTION PUMP 2

Diagram

Parts List

Reference
Description
Price


1
6EK2450B01
Fuel hose assembly
Loading…

↗
2
6EK2433002
Fuel pipe assembly
Loading…

↗
3
6C52425101
Strainer 1
Loading…

↗
4
9046511M10
Clamp
Loading…

↗
5
90467120A7
Clip
Loading…

↗
6
9046412009
Clamp
Loading…

↗
7
9046412224
Clamp(4pe)
Loading…

↗
8
9046412012
Clamp
Loading…

↗
