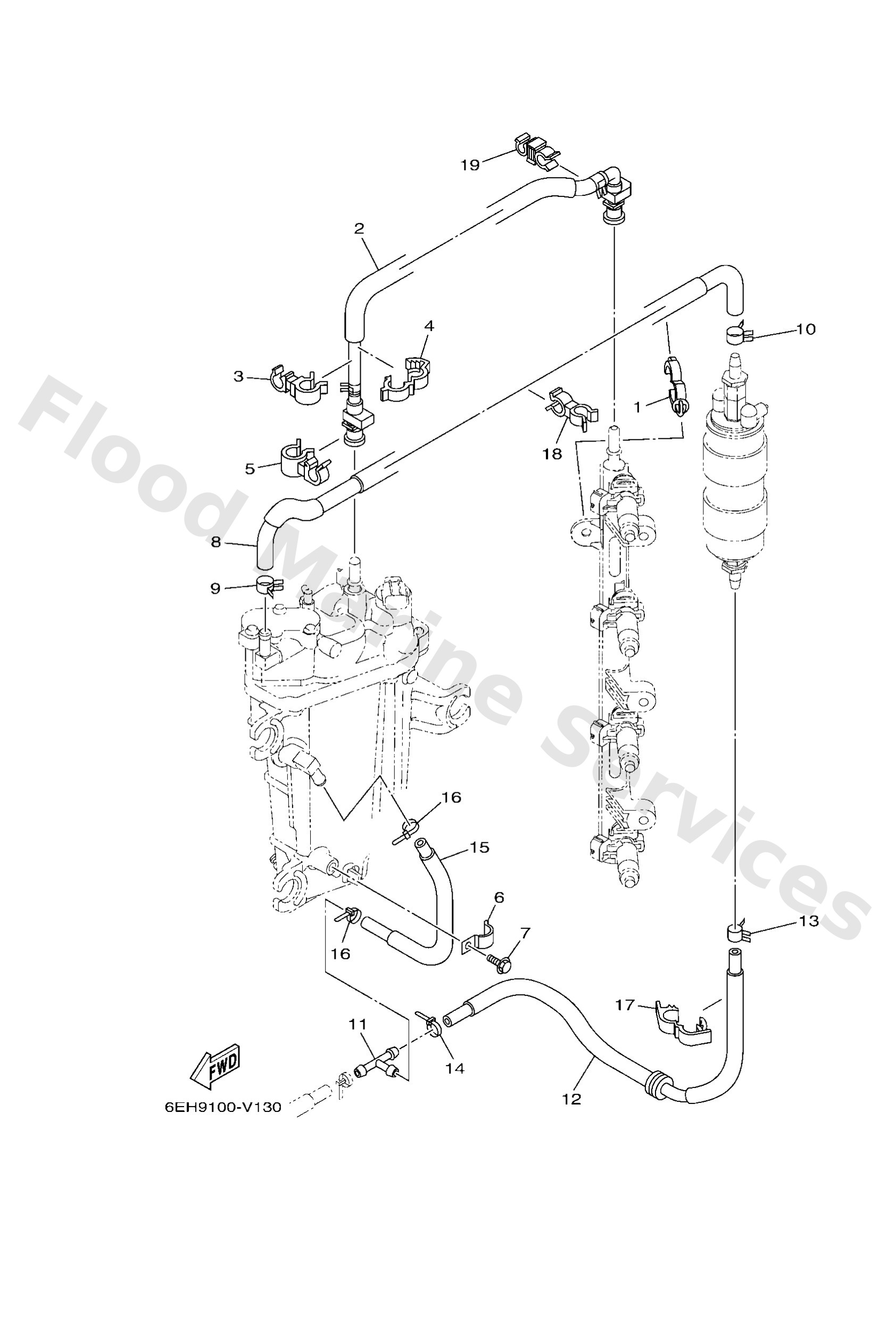

Diagram: FUEL INJECTION PUMP 2

Diagram

Parts List

Reference
Description
Price


1
9046420181
Clamp(4ap)
Loading…

↗
2
6DA2431001
Fuel pipe assembly
Loading…

↗
3
9046412010
Clamp
Loading…

↗
4
9046416003
Clamp
Loading…

↗
5
9046415007
Clamp
Loading…

↗
6
9046508M63
Clamp(61u)
Loading…

↗
7
95D9506010
Bolt, flange deep recess
Loading…

↗
8
6DA2432410
Pipe 13
Loading…

↗
9
90467120A7
Clip
Loading…

↗
10
90467140A9
Clip
Loading…

↗
11
6E52437800
Pipe, joint 3
Loading…

↗
12
6DA2431700
Pipe 7
Loading…

↗
13
90467141A2
Clip
Loading…

↗
14
9046511M10
Clamp
Loading…

↗
15
6DA2432300
Pipe 12
Loading…

↗
17
9046418004
Clamp
Loading…

↗
18
9046413260
Clamp
Loading…

↗
19
9046413013
Clamp
Loading…

↗
