RIGGING - FUEL TANK (2015)
FUEL PIPE

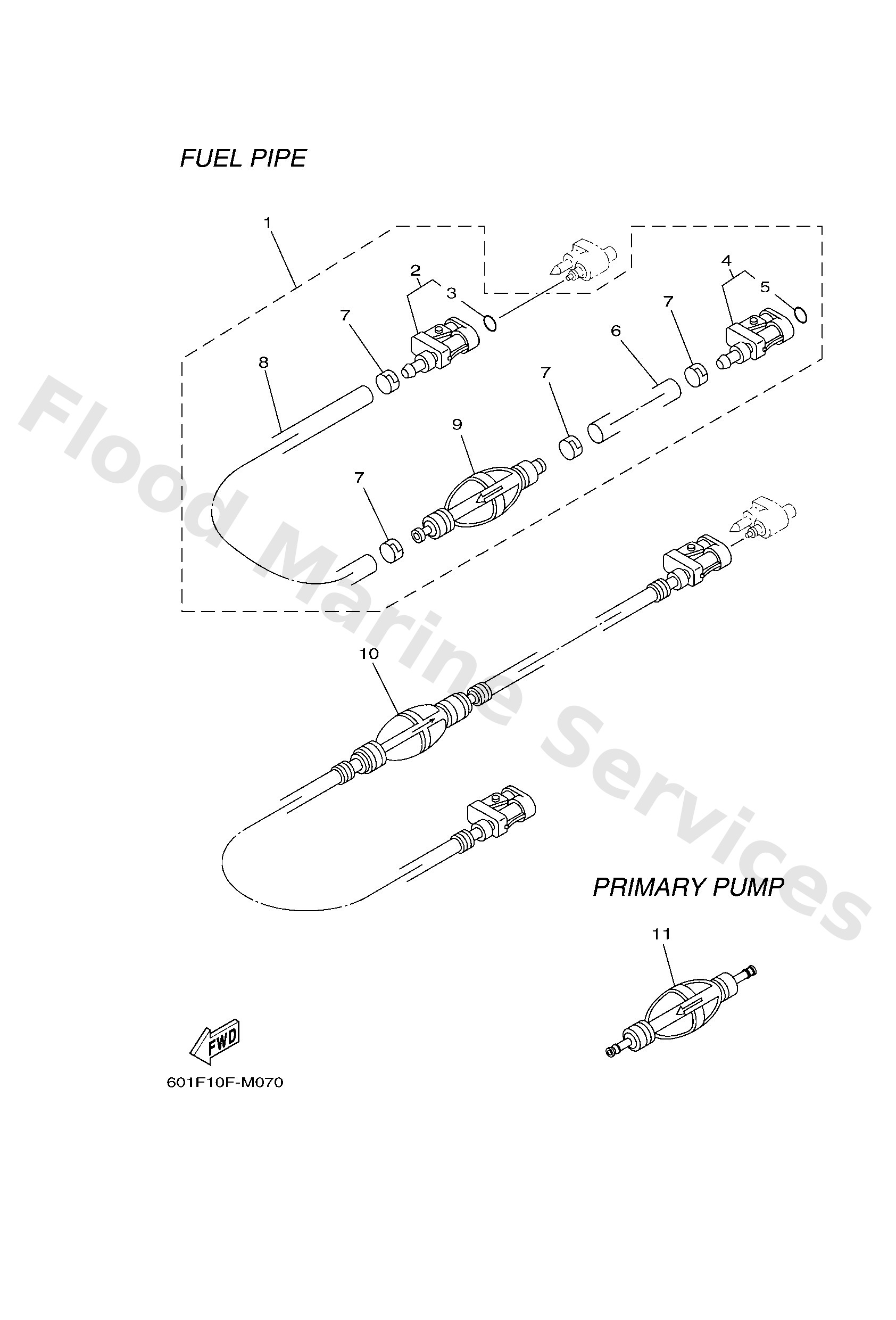

Diagram: FUEL PIPE
Parts List
Reference
Description
Price
1
6Y12430655
Fuel pipe comp. 1
Loading…
↗
2
6G12430505
Fuel pipe joint comp. 2
Loading…
↗
3
9321008287
O-ring (655)
Loading…
↗
4
6Y12430506
Fuel pipe joint comp. 2
Loading…
↗
6
9044511M06
Hose (l3000)
Loading…
↗
7
6502435151
Band 1
Loading…
↗
8
9044511M05
Hose (l1000)
Loading…
↗
9
6Y12436052
Primer pump assembly
Loading…
↗
10
6YK2430664
UR
Fuel pipe comp. 1
Loading…
↗
10
6YL2430664
UR
Fuel pipe comp. 1
Loading…
↗
11
6YK2436073
UR
Primer pump assembly
Loading…
↗
11
6YL2436051
UR
-
Loading…
↗
