Yamaha Outboard Parts - FUEL PUMP DRIVE GEAR - LZ250DETO (2003) | Flood Marine

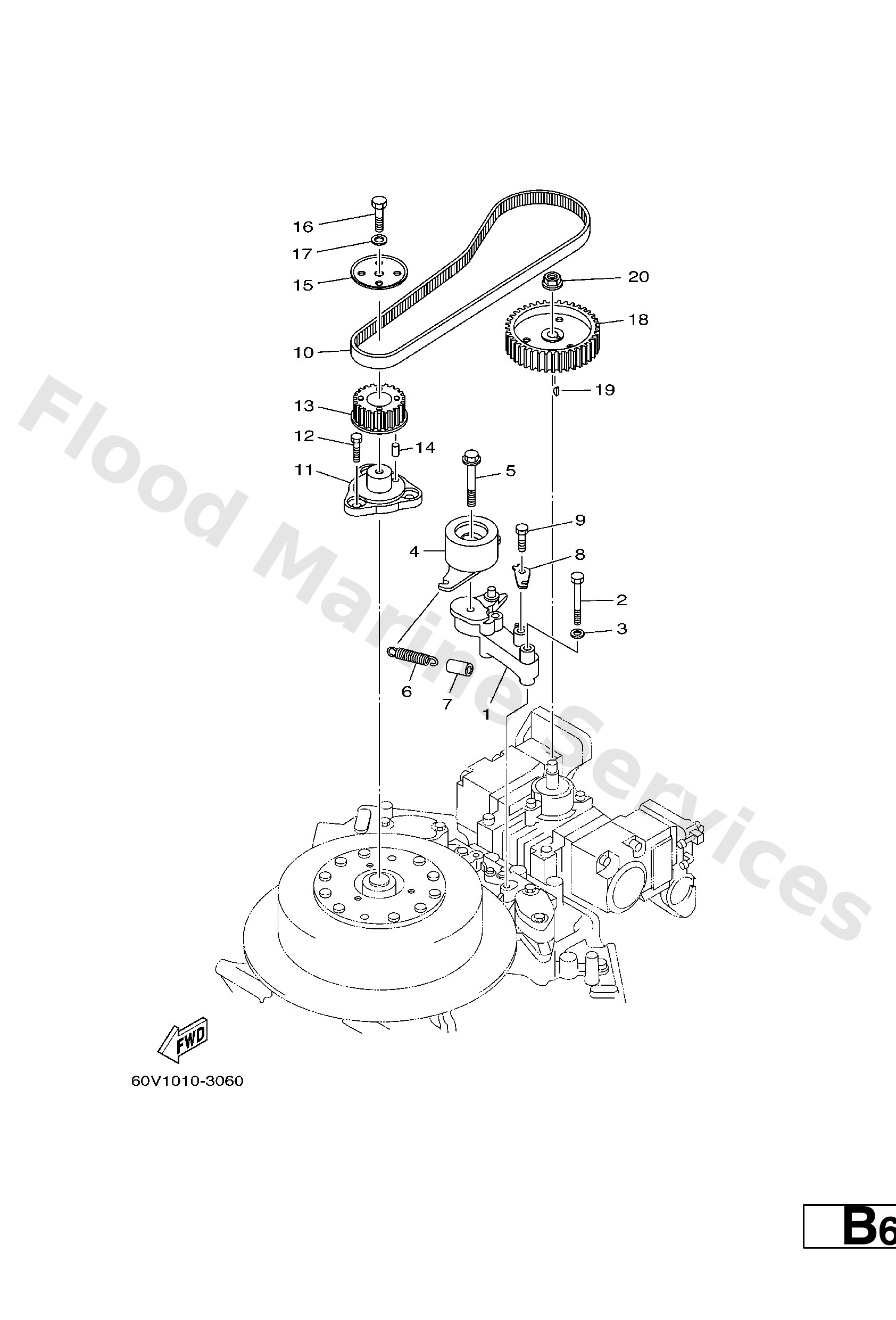

Diagram: FUEL PUMP DRIVE GEAR

Diagram

Parts List

Reference
Description
Price


1
60V−11598−00−94
Bracket, tensioner
Loading…

↗
2
97013−08055
Bolt, hexagon
Loading…

↗
3
92903−08600
Washer, plain (663)
Loading…

↗
4
60V−11590−00
Tensioner assembly
Loading…

↗
5
90119−10M72
Bolt, with washer(6m6)
Loading…

↗
6
60V−12113−00
Spring, Valve Inner
Loading…

↗
7
90445−15002
Hose (l30)
Loading…

↗
8
60V−11595−00
Plate,valve
Loading…

↗
9
97013−08012
Bolt(62e)
Loading…

↗
10
60V−46241−00
Belt
Loading…

↗
11
68F−11579−01−94
Coupling, flywheel
Loading…

↗
13
68F−11536−00−94
Gear, drive
Loading…

↗
14
93605−10108
Pin, dowel (8g8)
Loading…

↗
15
60V−11557−00
Washer 1
Loading…

↗
16
97095−08025
Bolt (62g)
Loading…

↗
17
92995−08600
Washer, plain (663)
Loading…

↗
18
68F−11537−00−94
Gear, driven
Loading…

↗
19
90280−03M01
Key woodruff 146115450000
Loading…

↗
20
95707−08600
Nut, flange(jn5)
Loading…

↗
