Yamaha Outboard Parts - FUEL PUMP DRIVE GEAR - LZ300AETO (2007) | Flood Marine

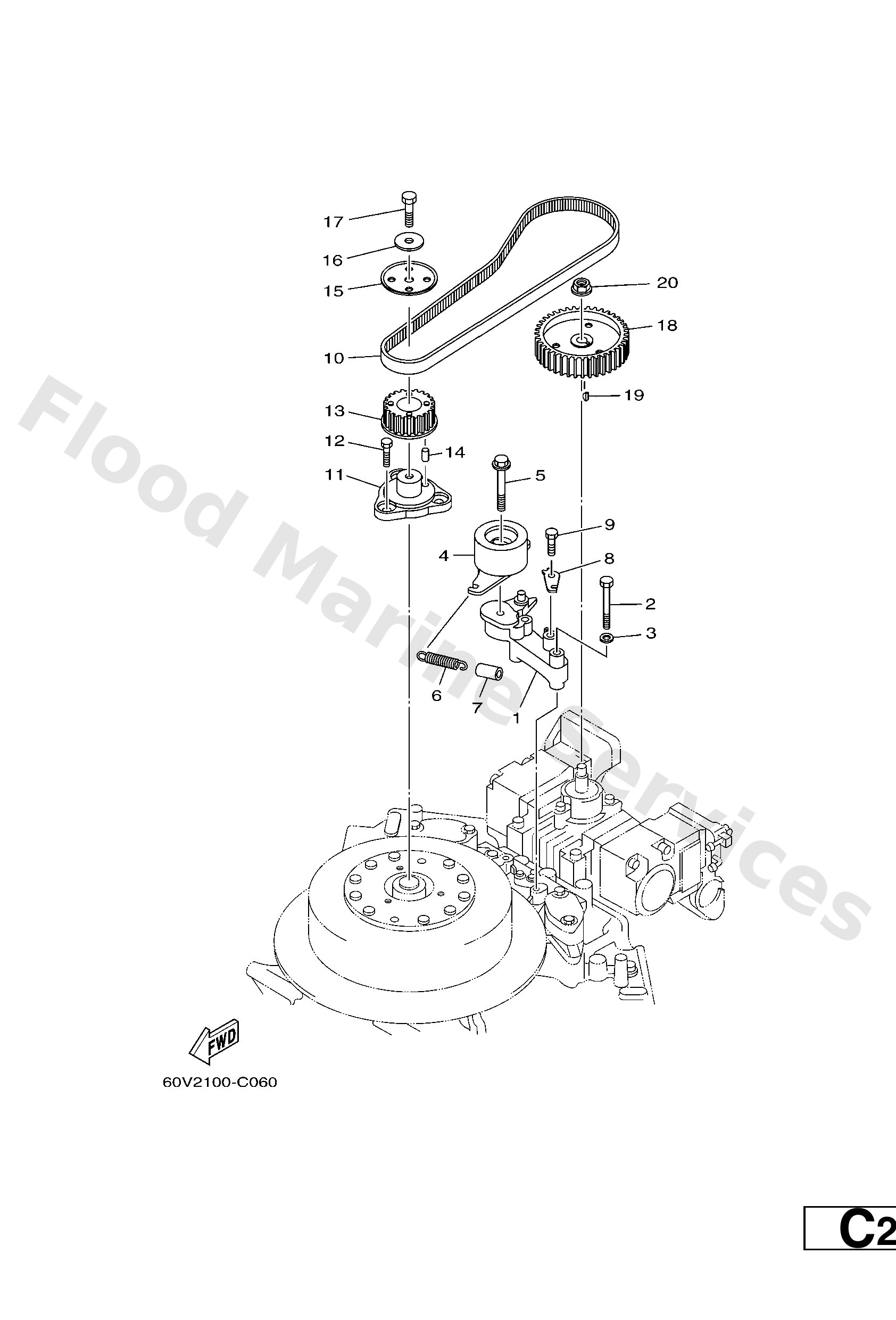

Diagram: FUEL PUMP DRIVE GEAR

Diagram

Parts List

Reference
Description
Price


1
60V115980094
Bracket, tensioner
Loading…

↗
2
9701308055
Bolt, hexagon
Loading…

↗
3
9290308600
Washer, plain (663)
Loading…

↗
4
60V1159000
Tensioner assembly
Loading…

↗
5
9011910M72
Bolt, with washer(6m6)
Loading…

↗
6
6D01211300
Spring, valve inner
Loading…

↗
7
9044515002
Hose (l30)
Loading…

↗
8
60V1159500
Plate,valve
Loading…

↗
9
9701308012
Bolt(62e)
Loading…

↗
10
60V4624100
Belt
Loading…

↗
11
68F115790194
Coupling, flywheel
Loading…

↗
13
68F115360094
Gear, drive
Loading…

↗
14
9360510108
Pin, dowel (8g8)
Loading…

↗
15
60V1155700
Washer 1
Loading…

↗
16
9020108M00
Washer, plate(6e0)
Loading…

↗
17
9709508025
Bolt (62g)
Loading…

↗
18
68F115370094
Gear, driven
Loading…

↗
19
9028003M01
Key woodruff 146115450000
Loading…

↗
20
9570708600
Nut, flange(jn5)
Loading…

↗
