Yamaha Outboard Parts - FUEL TANK - E115AET (2003) | Flood Marine

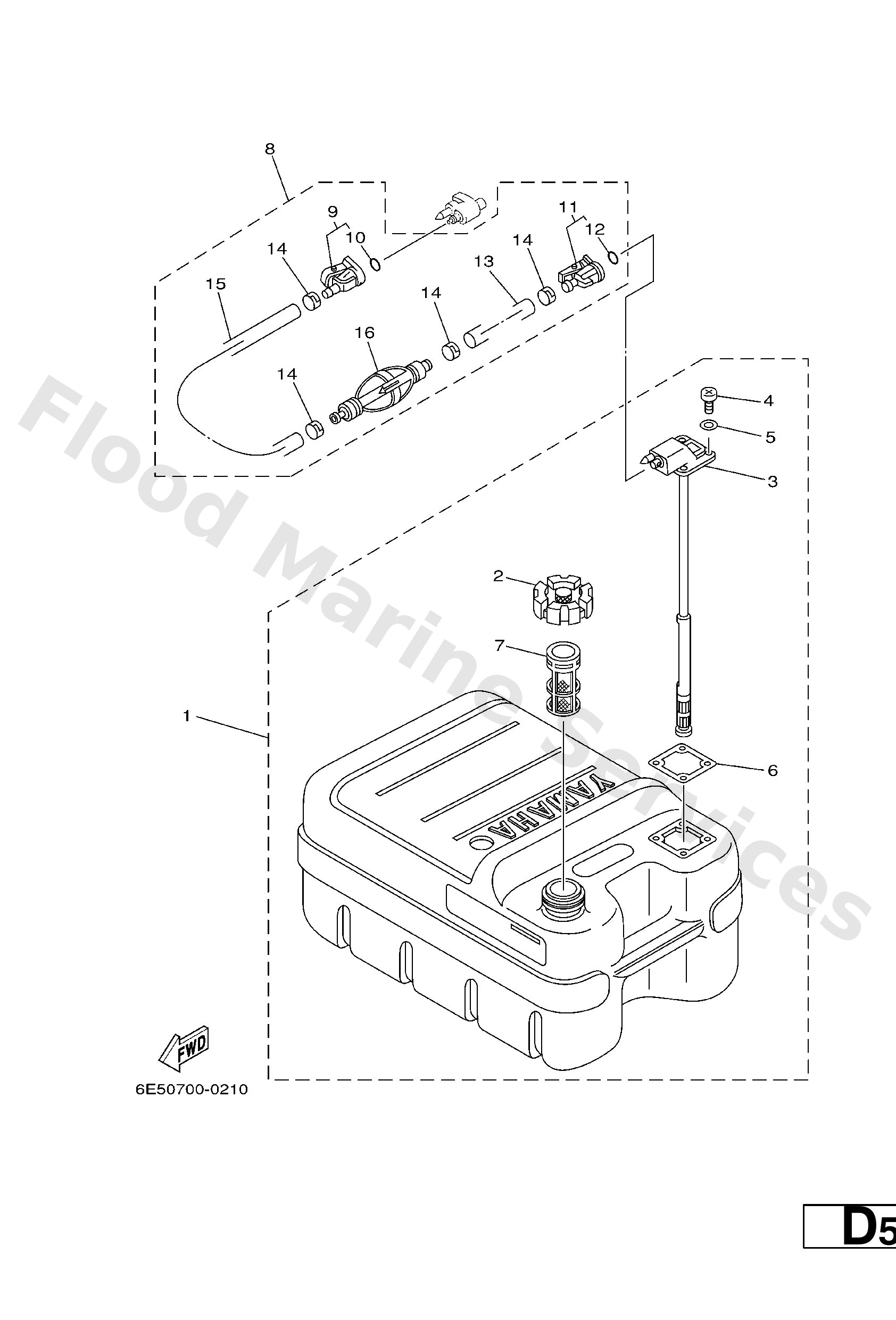

Diagram: FUEL TANK

Diagram

Parts List

Reference
Description
Price


1
6YJ−24201−10 AP FOR CHINA
Fuel Tank assembly (24L)
Loading…

↗
1
6YJ−24201−00 AP
Fuel tank comp.
Loading…

↗
2
6YJ−24610−01
Cap assembly
Loading…

↗
3
6YJ−24260−00
Fuel meter assembly
Loading…

↗
3
6Y1−24260−12 FOR CHINA
Fuel meter assembly
Loading…

↗
4
98586−05016
Screw, pan head
Loading…

↗
5
6Y1−24329−00
Seal
Loading…

↗
6
6Y1−24268−00
Gasket, fuel meter
Loading…

↗
7
6YJ−24167−00
Strainer
Loading…

↗
8
6Y2−24306−07 AP
Fuel Pipe Comp. 1
Loading…

↗
9
6E5−24305−04
Fuel pipe joint comp. 2
Loading…

↗
10
93210−08287
O-ring (655)
Loading…

↗
11
6Y2−24305−04
Fuel pipe joint comp. 2
Loading…

↗
13
90445−13M01
Hose (l2050)
Loading…

↗
14
6E5−24351−50
Band 1
Loading…

↗
15
90445−13M00
Hose (l850)
Loading…

↗
16
6Y2−24360−02
Primer pump assembly
Loading…

↗
