F100BET (2003)
FUEL TANK

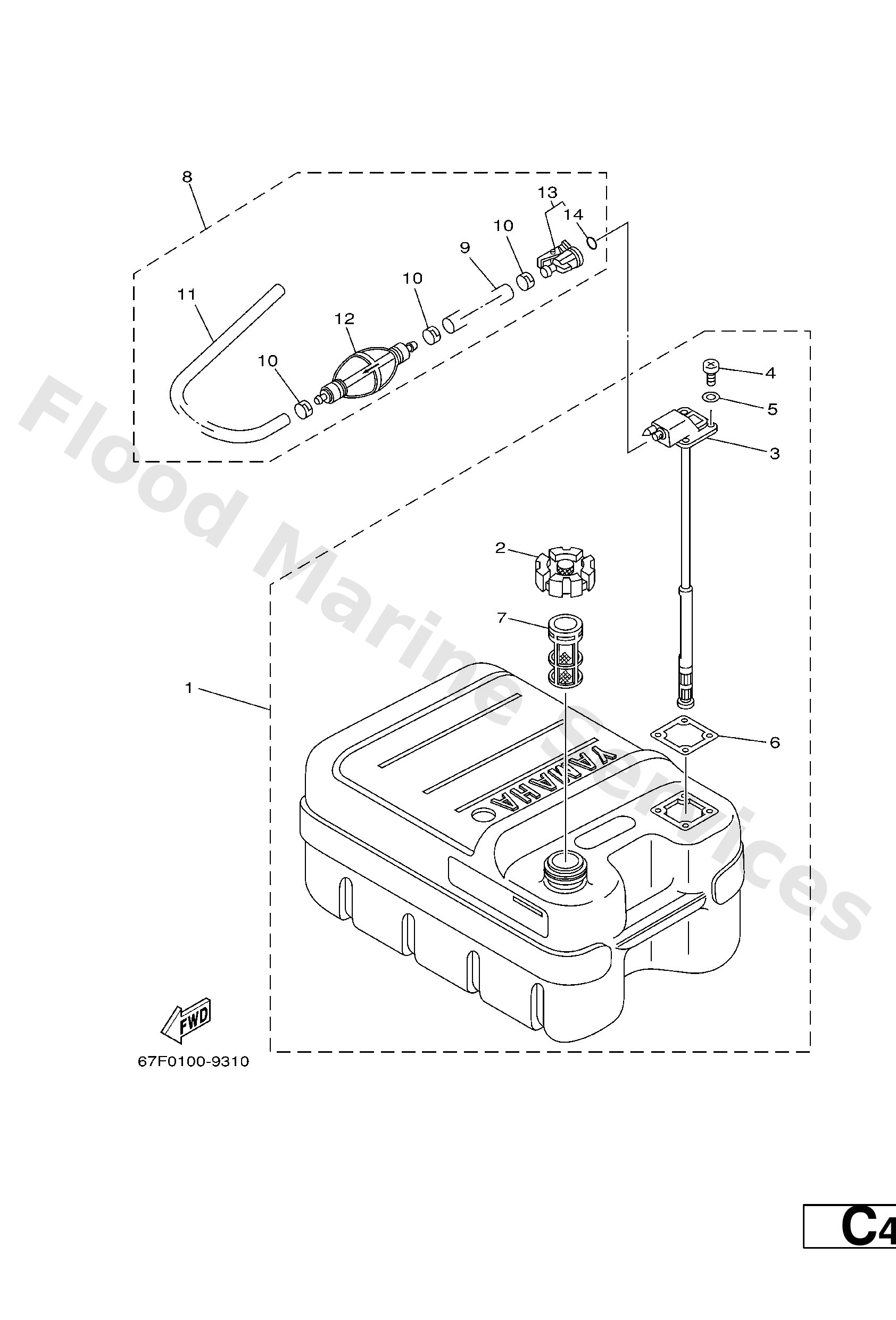

Diagram: FUEL TANK
Parts List
Reference
Description
Price
1
6YJ−24201−10
AP WITH INDICATOR
Fuel Tank assembly (24L)
Loading…
↗
2
6YJ−24610−01
Cap assembly
Loading…
↗
3
6Y1−24260−12
WITH INDICATOR
Fuel meter assembly
Loading…
↗
4
98586−05016
Screw, pan head
Loading…
↗
5
6Y1−24329−00
Seal
Loading…
↗
6
6Y1−24268−00
Gasket, fuel meter
Loading…
↗
7
6YJ−24167−00
Strainer
Loading…
↗
8
6Y2−24306−42
AP
Fuel pipe comp. 1
Loading…
↗
9
90445−13M01
Hose (l2050)
Loading…
↗
10
6E5−24351−51
Band 1
Loading…
↗
11
90445−13M35
Hose (L250)
Loading…
↗
12
6Y2−24360−52
Primer pump assembly
Loading…
↗
13
6Y2−24305−04
Fuel pipe joint comp. 2
Loading…
↗
14
93210−08287
O-ring (655)
Loading…
↗
