F8FE (2025)
FUEL TANK

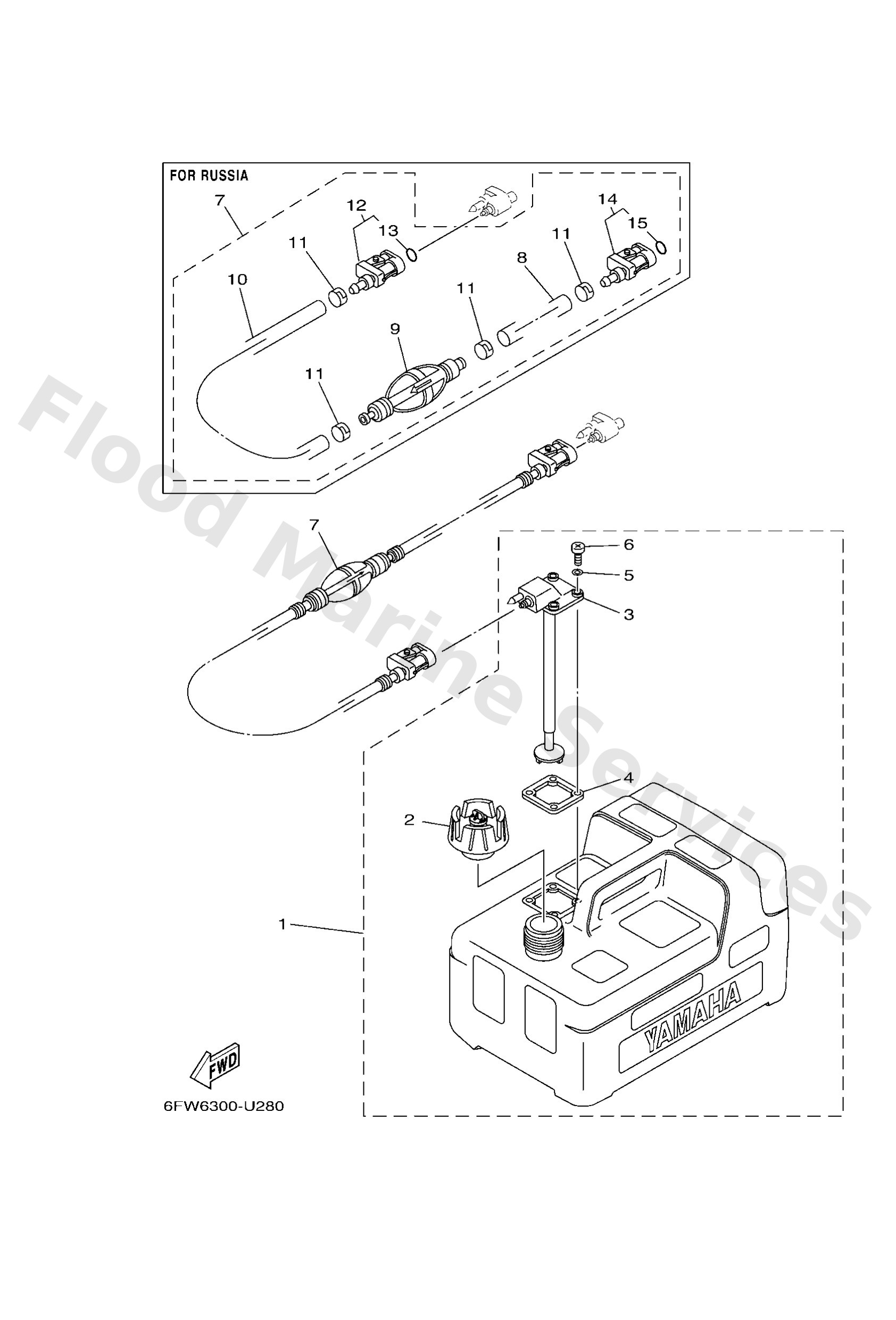

Diagram: FUEL TANK
Parts List
Reference
Description
Price
1
6YL2420107
AP
Fuel tank assembly (12l)
Loading…
↗
2
6YK2461010
WITHOUT INDICATOR
Cap assembly
Loading…
↗
3
6YL2426010
Fuel meter assembly
Loading…
↗
4
6YL2426801
Gasket, fuel meter
Loading…
↗
5
6YL2432900
Seal
Loading…
↗
6
9015705M16
Screw, pan head
Loading…
↗
7
6YL2430654
AP EXCEPT FOR RUS
Fuel pipe comp. 1
Loading…
↗
7
61J2430605
AP FOR RUS
Fuel pipe comp. 1
Loading…
↗
8
9044511M58
Hose (L2050)
Loading…
↗
9
61J2436000
Primer pump assembly
Loading…
↗
10
9044511M57
Hose (L850)
Loading…
↗
11
6502435151
Band 1
Loading…
↗
12
6G12430505
Fuel pipe joint comp. 2
Loading…
↗
13
9321008287
O-ring (655)
Loading…
↗
14
6Y12430506
Fuel pipe joint comp. 2
Loading…
↗
