Yamaha Outboard Parts - FUEL TANK - FT50CED (2003) | Flood Marine

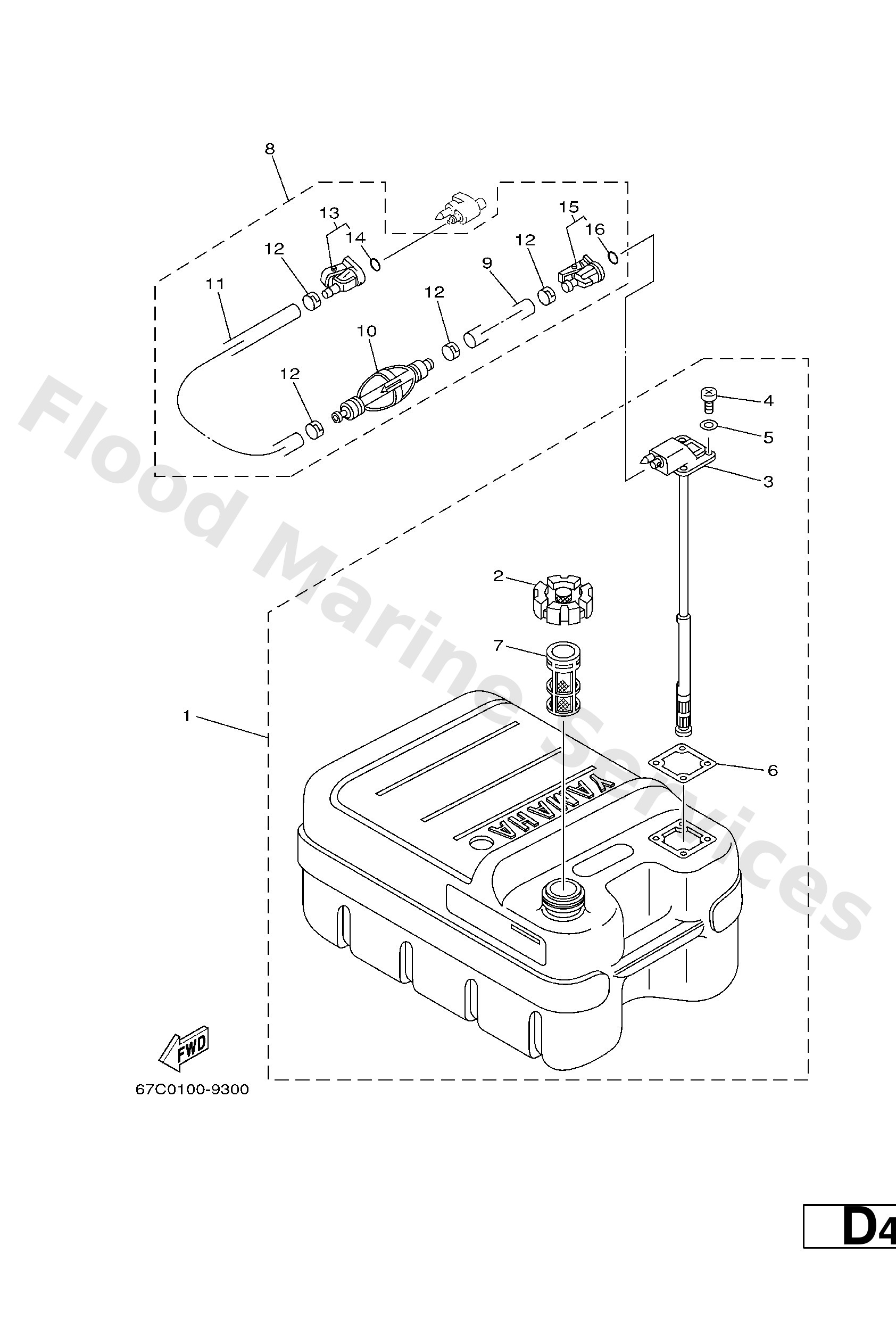

Diagram: FUEL TANK

Diagram

Parts List

Reference
Description
Price


1
6YJ−24201−10 AP WITH INDICATOR
Fuel Tank assembly (24L)
Loading…

↗
2
6YJ−24610−01
Cap assembly
Loading…

↗
3
6Y1−24260−12 WITH INDICATOR
Fuel meter assembly
Loading…

↗
4
98586−05016
Screw, pan head
Loading…

↗
5
6Y1−24329−00
Seal
Loading…

↗
6
6Y1−24268−00
Gasket, fuel meter
Loading…

↗
7
6YJ−24167−00
Strainer
Loading…

↗
8
61J−24306−02 AP
Fuel pipe comp. 1
Loading…

↗
9
90445−11M06
Hose (l3000)
Loading…

↗
10
61J−24360−00
Primer pump assembly
Loading…

↗
11
90445−11M05
Hose (l1000)
Loading…

↗
12
650−24351−51
Band 1
Loading…

↗
13
6G1−24305−03
Fuel pipe joint comp. 2
Loading…

↗
14
93210−08287
O-ring (655)
Loading…

↗
15
6Y1−24305−04
Fuel pipe joint comp. 2
Loading…

↗
