Yamaha Outboard Parts - FUEL TANK 1 - FT8DMH (2003) | Flood Marine

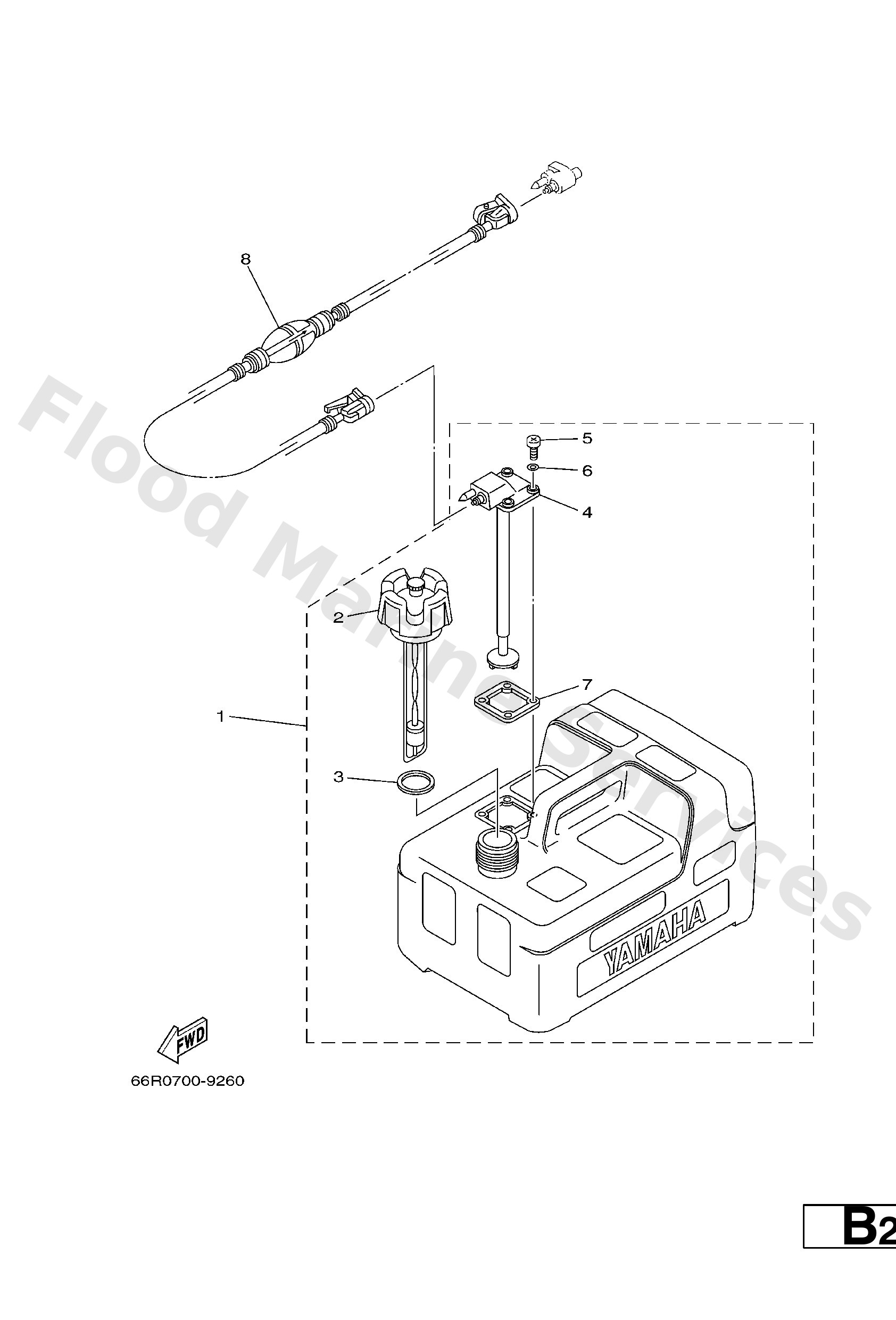

Diagram: FUEL TANK 1

Diagram

Parts List

Reference
Description
Price


1
6YL−24201−02 AP
Fuel Tank assembly
Loading…

↗
2
6YL−24610−00
Cap assembly
Loading…

↗
3
6YL−24641−00
Gasket, cap 1
Loading…

↗
4
6YL−24260−01
Fuel meter assembly
Loading…

↗
5
90157−05M16
Screw, pan head
Loading…

↗
6
6YL−24329−00
Seal
Loading…

↗
7
6YL−24268−01
Gasket, fuel meter
Loading…

↗
8
6YL−24306−52 AP
Fuel pipe comp. 1
Loading…

↗
