25BMH (2002)
FUEL TANK 2

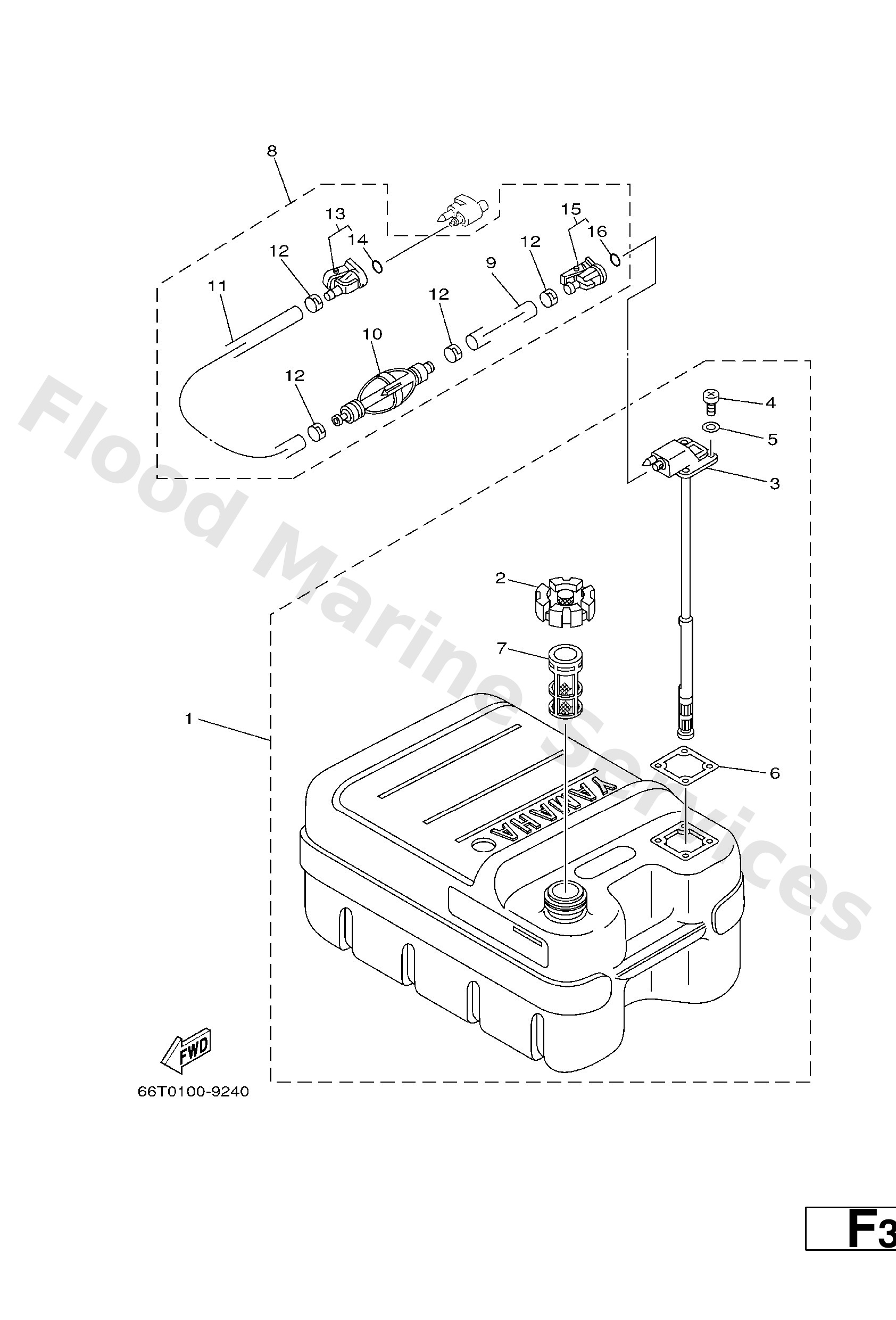

Diagram: FUEL TANK 2
Parts List
Reference
Description
Price
1
6YJ--24201--00
AP FOR VOLGA
Fuel tank comp.
Loading…
↗
2
6YJ--24610--01
Cap assembly
Loading…
↗
3
6YJ--24260--00
Fuel meter assembly
Loading…
↗
4
98586--05016
Screw, pan head
Loading…
↗
5
6Y1--24329--00
Seal
Loading…
↗
6
6Y1--24268--00
Gasket, fuel meter
Loading…
↗
7
6YJ--24167--00
Strainer
Loading…
↗
8
61J2430602
AP FOR VOLGA
Fuel pipe comp. 1
Loading…
↗
9
90445--11M06
Hose (l3000)
Loading…
↗
10
61J--24360--00
Primer pump assembly
Loading…
↗
11
90445--11M05
Hose (l1000)
Loading…
↗
12
650--24351--51
Band 1
Loading…
↗
13
6G12430503
Fuel pipe joint comp. 2
Loading…
↗
14
93210--08287
O-ring (655)
Loading…
↗
15
6Y12430504
Fuel pipe joint comp. 2
Loading…
↗
