40VMHO (2017)
FUEL TANK 2

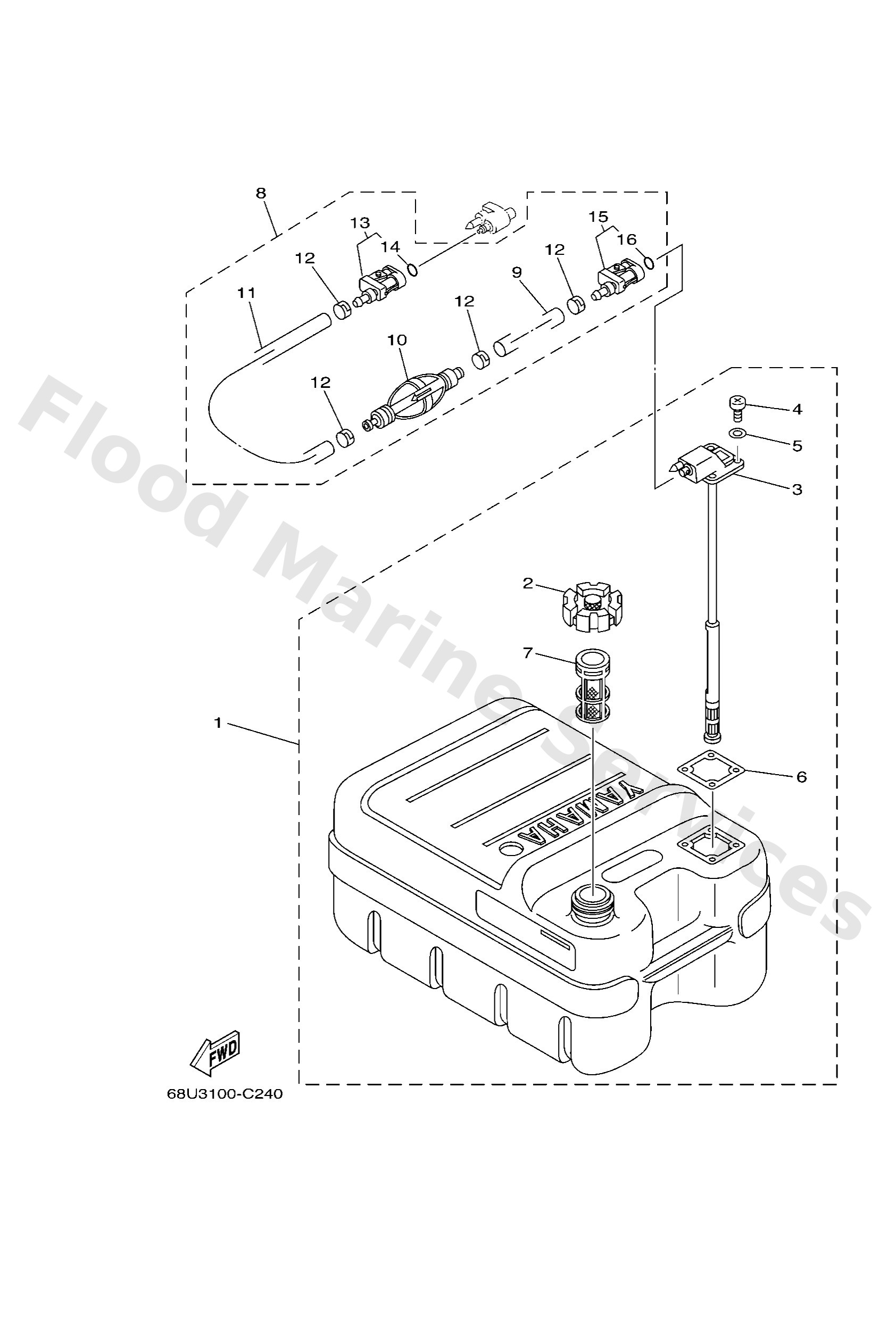

Diagram: FUEL TANK 2
Parts List
Reference
Description
Price
1
6YJ2420120
AP FOR RUS
Fuel tank comp.
Loading…
↗
2
6YJ2461001
Cap assembly
Loading…
↗
3
6YJ2426010
Fuel meter assembly
Loading…
↗
4
9015705M19
Screw, pan head
Loading…
↗
5
6Y12432900
Seal
Loading…
↗
6
6Y12426800
Gasket, fuel meter
Loading…
↗
7
6YJ2416700
Strainer
Loading…
↗
8
61J2430604
AP FOR RUS
Fuel pipe comp. 1
Loading…
↗
9
9044511M06
Hose (l3000)
Loading…
↗
10
61J2436000
Primer pump assembly
Loading…
↗
11
9044511M05
Hose (l1000)
Loading…
↗
12
6502435151
Band 1
Loading…
↗
13
6G12430505
Fuel pipe joint comp. 2
Loading…
↗
14
9321008287
O-ring (655)
Loading…
↗
15
6Y12430506
Fuel pipe joint comp. 2
Loading…
↗
