RIGGING - FUEL TANK (2022)
FUEL TANK 3

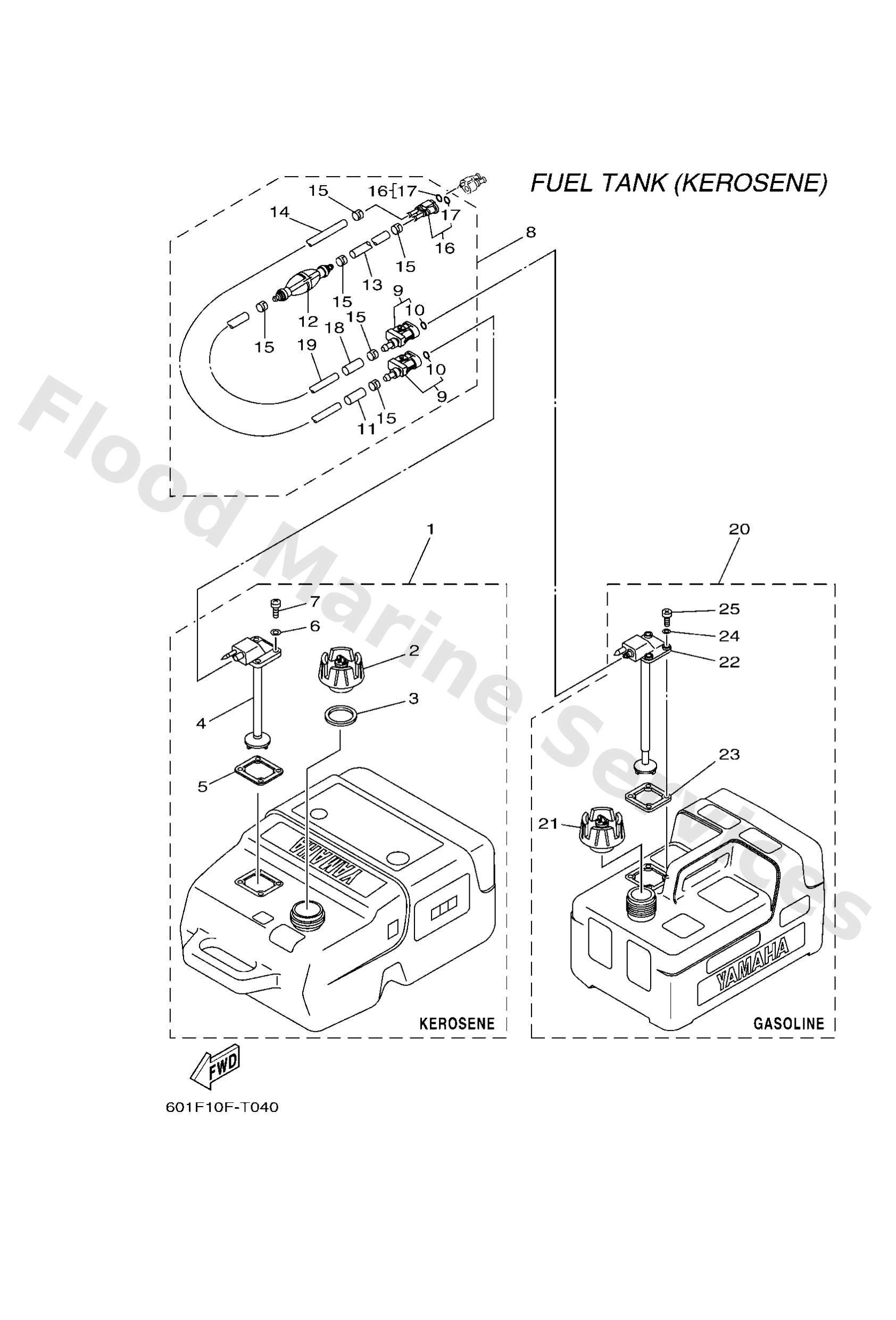

Diagram: FUEL TANK 3
Parts List
Reference
Description
Price
1
6YK2420122
KEROSENE
-
Loading…
↗
2
6YK2461010
WITHOUT INDICATOR
Cap assembly
Loading…
↗
3
6YL2464100
Gasket, cap 1
Loading…
↗
4
6YK2426010
Fuel meter assembly
Loading…
↗
5
6YL2426801
Gasket, fuel meter
Loading…
↗
6
6YL2432900
Seal
Loading…
↗
7
9015705M16
Screw, pan head
Loading…
↗
8
6YK2430604
-
Loading…
↗
9
6Y12430506
Fuel pipe joint comp. 2
Loading…
↗
10
9321008287
O-ring (655)
Loading…
↗
11
6Y12439710
Collar
Loading…
↗
12
61J2436000
Primer pump assembly
Loading…
↗
13
9044511M05
Hose (l1000)
Loading…
↗
14
9044511M81
Hose (l3000)
Loading…
↗
15
6502435151
Band 1
Loading…
↗
16
6802430501
Fuel pipe joint comp. 2
Loading…
↗
18
6Y12439700
Collar
Loading…
↗
19
9044511M06
Hose (l3000)
Loading…
↗
20
6YL2420107
GASOLINE
Fuel tank assembly (12l)
Loading…
↗
22
6YL2426010
Fuel meter assembly
Loading…
↗
