150AETOL (1998)
Fuel

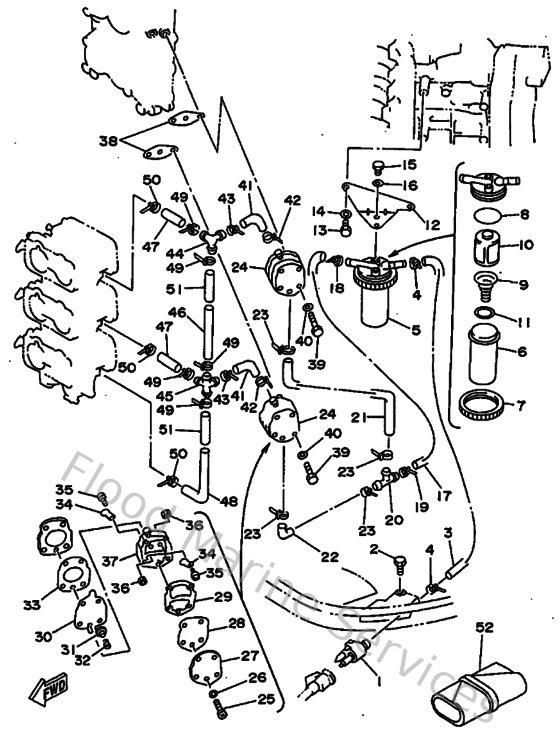

Diagram: Fuel
Parts List
Reference
Description
Price
1
6E5243041000
Fuel pipe joint comp. 1
Loading…
↗
2
970950602800
Bolt (6g0)
Loading…
↗
3
6G5243130100
Pipe 3
Loading…
↗
4
904651009800
Clamp
Loading…
↗
5
61A245600200
Filter assembly
Loading…
↗
6
61A245210000
Cup, filter
Loading…
↗
7
61A245310000
Nut
Loading…
↗
8
61A245640000
O-ring
Loading…
↗
9
61A245770100
Spring
Loading…
↗
10
61A245630000
Element, filter
Loading…
↗
11
61A244690000
Float, water level
Loading…
↗
12
61U245660000
Bracket, Filter
Loading…
↗
13
970950601400
Bolt(gj3)
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
970950601600
Bolt, hexagon deep recess
Loading…
↗
16
929950660000
Washer, plain (646)
Loading…
↗
17
6G5243141000
Pipe 4
Loading…
↗
18
9046511M1000
Clamp
Loading…
↗
20
6E5243780000
Pipe, joint 3
Loading…
↗
21
6G5243150000
Pipe 5
Loading…
↗
22
6E5243150000
Pipe 5
Loading…
↗
24
6E5244100300
Fuel pump assembly
Loading…
↗
25
985030503500
Screw, pan head (686)
Loading…
↗
26
929900560000
Washer, plain (646)
Loading…
↗
27
6E5244130000
Body 2
Loading…
↗
28
6E5244710000
Diaphragm
Loading…
↗
29
6E5244350000
Gasket, body 2
Loading…
↗
30
6E5244110000
Diaphragm
Loading…
↗
31
648244240000
Seat,spring
Loading…
↗
32
6E5244230000
Spring, diaphragm
Loading…
↗
33
6E5244340200
Gasket, body
Loading…
↗
34
6A0244210100
Valve, check
Loading…
↗
35
6A0143250000
Screw, pan head
Loading…
↗
36
953800360000
Nut (6g8)
Loading…
↗
37
6E5244120200
Body 1
Loading…
↗
38
65024431A000
Gasket,fuel pump
Loading…
↗
39
970950605000
Bolt(jf7)
Loading…
↗
41
6G5243161000
Pipe 6
Loading…
↗
44
6G5243760000
Pipe, joint 1
Loading…
↗
45
6G5243770000
Pipe, joint 2
Loading…
↗
46
6G5243170100
Pipe 7
Loading…
↗
47
6G5243181000
Hose (l90)
Loading…
↗
48
6G5243191000
Pipe 9
Loading…
↗
50
80L263970000
Band
Loading…
↗
51
9044615M0700
Hose(6g4)
Loading…
↗
52
656W28100200
Tool kit
Loading…
↗
