Yamaha Outboard Parts - Fuel - 15DEH (1994) | Flood Marine
New Search
Parts
New Outboards
Home
15DEH (1994)
Fuel

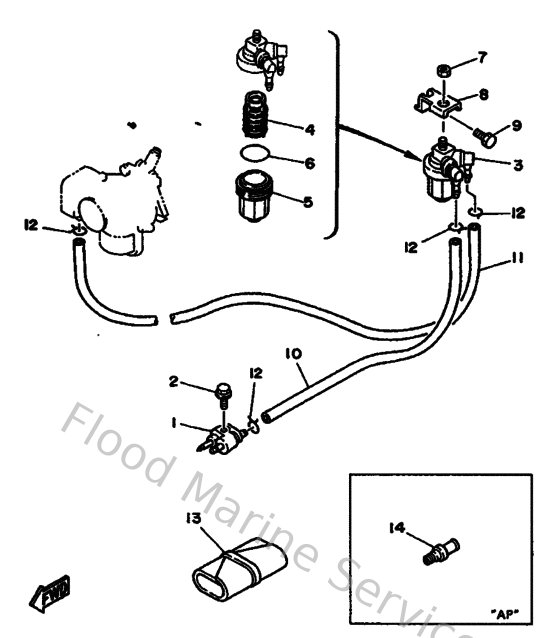

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
975950652000
Bolt(7u8)
Loading…
↗
3
61N245600000
Filter assembly
Loading…
↗
4
61N245631000
Element, filter
Loading…
↗
5
61N245210000
Cup, filter
Loading…
↗
6
932103273800
O-ring(1wg)
Loading…
↗
7
953800860000
Nut (661)
Loading…
↗
8
682245660100
Bracket, filter
Loading…
↗
9
973130601000
Bolt
Loading…
↗
10
9044509M5300
Hose (l180)
Loading…
↗
11
90445090F600
Hose (l1500)
Loading…
↗
12
904670800400
Clip, pipe 6162435600
Loading…
↗
13
656W28100200
Tool kit
Loading…
↗
14
6E0281930094
Plug, water check
Loading…
↗
