Yamaha Outboard Parts - Fuel - 20CMH (1993) | Flood Marine

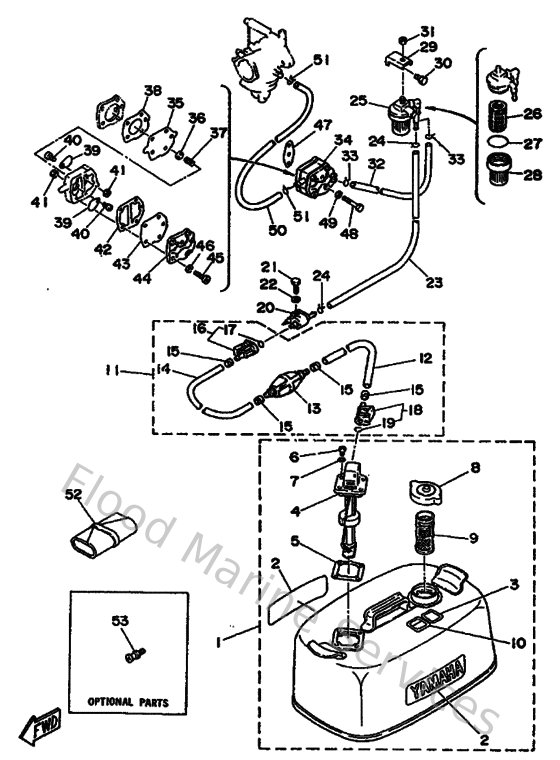

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


4
6Y1242600200
Fuel meter assembly
Loading…

↗
5
6Y1242680000
Gasket, fuel meter
Loading…

↗
6
985860501600
Screw, pan head
Loading…

↗
7
6Y1243290000
Seal
Loading…

↗
8
6Y1246100000
Cap assembly
Loading…

↗
9
6Y1241670000
Strainer
Loading…

↗
10
6Y1242558000
Graphic, Fuel Tank 8
Loading…

↗
11
6Y1243065100
Fuel pipe comp. 1
Loading…

↗
12
9044511M0600
Hose (l3000)
Loading…

↗
13
6Y1243605100
Primer pump assembly
Loading…

↗
14
9044511M0500
Hose (l1000)
Loading…

↗
15
650243515100
Band 1
Loading…

↗
16
6G1243050100
Fuel pipe joint comp. 2
Loading…

↗
17
932100828700
O-ring (655)
Loading…

↗
18
6Y1243050200
Fuel pipe joint comp. 2
Loading…

↗
20
6G1243041000
Fuel pipe joint comp. 1
Loading…

↗
21
973950602000
Bolt(7u8)
Loading…

↗
22
929900660000
Washer, plain (646)
Loading…

↗
23
9044509M2500
Hose (l1500)
Loading…

↗
24
904670800400
Clip, pipe 6162435600
Loading…

↗
25
61N245601000
Filter assembly
Loading…

↗
26
6F5245630000
Element, filter
Loading…

↗
27
9321037M2500
O-ring (655)
Loading…

↗
29
648245660100
Bracket, Filter
Loading…

↗
30
970130601200
Bolt(gh1)
Loading…

↗
31
953800860000
Nut (661)
Loading…

↗
32
664243110000
Pipe, Fuel 1
Loading…

↗
34
6A0244100500
Fuel pump assembly
Loading…

↗
35
648244110000
Diaphragm
Loading…

↗
36
648244240000
Seat,spring
Loading…

↗
37
648244230000
Spring,diaphragm
Loading…

↗
38
648244340100
Gasket, body
Loading…

↗
39
62Y244210100
Valve, check
Loading…

↗
40
6A0143250000
Screw, pan head
Loading…

↗
41
953800360000
Nut (6g8)
Loading…

↗
42
648244350200
Gasket, body 2
Loading…

↗
43
663244110000
Diaphragm
Loading…

↗
44
648244130100
Cover, pump
Loading…

↗
45
985800553000
Ybs86-530 screw,panhead
Loading…

↗
46
929900510000
Ybs67-5 washer, spring
Loading…

↗
47
65024431A000
Gasket,fuel pump
Loading…

↗
48
970950604000
Bolt (682)
Loading…

↗
50
648243120100
Pipe, fuel 1
Loading…

↗
52
656W28100200
Tool kit
Loading…

↗
53
6E0281930094
Plug, water check
