Yamaha Outboard Parts - Fuel - 20DMHO (1996) | Flood Marine

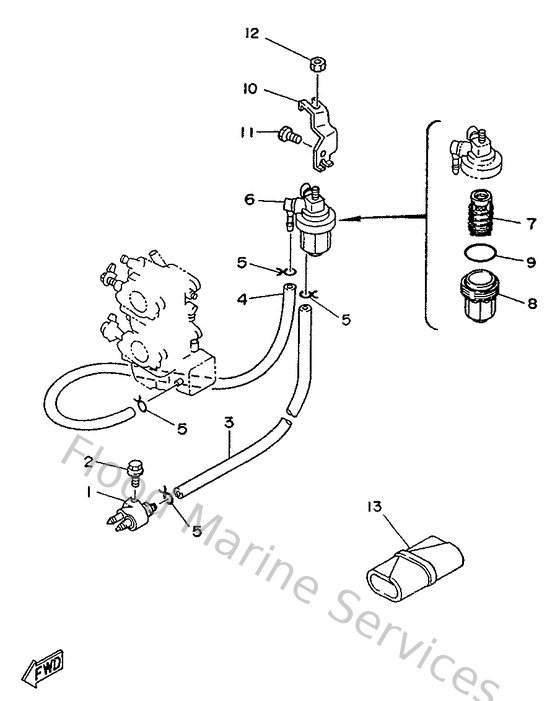

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


1
6G1243040200
Fuel pipe joint comp. 1
Loading…

↗
3
6H4243110000
Pipe 1
Loading…

↗
6
61N245600000
Filter assembly
Loading…

↗
7
61N245631000
Element, filter
Loading…

↗
8
61N245210000
Cup, filter
Loading…

↗
10
6L2245660000
Bracket, filter
Loading…

↗
13
656W28100200
Tool kit
Loading…

↗
