225BETOL (1995)
Fuel

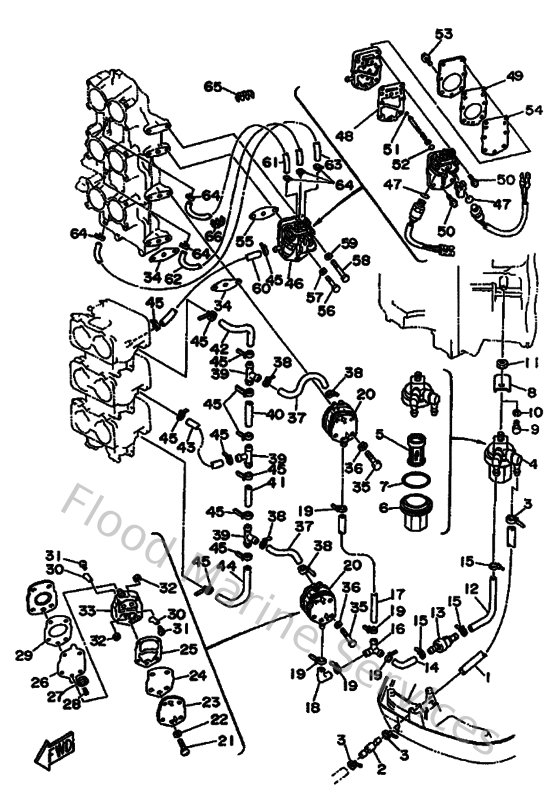

Diagram: Fuel
Parts List
Reference
Description
Price
2
6R3243770000
Pipe, joint 3
Loading…
↗
4
6R3245600000
Filter assembly
Loading…
↗
5
6R3245630000
Element, filter
Loading…
↗
6
61N245210000
Cup, filter
Loading…
↗
8
648245660100
Bracket, Filter
Loading…
↗
13
6R5244080000
Fuel feed assembly
Loading…
↗
14
6R5243140000
Pipe 4
Loading…
↗
16
6G5243760000
Pipe, joint 1
Loading…
↗
17
6K7243150000
Pipe 5
Loading…
↗
18
6E5243150000
Pipe 5
Loading…
↗
20
6E5244100300
Fuel pump assembly
Loading…
↗
23
6E5244130000
Body 2
Loading…
↗
24
6E5244710000
Diaphragm
Loading…
↗
25
6E5244350000
Gasket, body 2
Loading…
↗
26
6E5244110000
Diaphragm
Loading…
↗
27
648244240000
Seat,spring
Loading…
↗
28
6E5244230000
Spring, diaphragm
Loading…
↗
29
6E5244340200
Gasket, body
Loading…
↗
30
62Y244210100
Valve, check
Loading…
↗
31
6A0143250000
Screw, pan head
Loading…
↗
33
6E5244120200
Body 1
Loading…
↗
34
65024431A000
Gasket,fuel pump
Loading…
↗
37
6G5243161000
Pipe 6
Loading…
↗
39
6E5243780000
Pipe, joint 3
Loading…
↗
42
6K7243170000
Pipe 7
Loading…
↗
43
6K7243180000
Pipe, overflow
Loading…
↗
44
6K7243190000
Pipe, oil
Loading…
↗
46
6R5139210100
Prime Starter
Loading…
↗
47
6R5244790000
O-Ring
Loading…
↗
48
6R5244350000
Gasket, Body 2
Loading…
↗
49
6R5244340000
Gasket Body
Loading…
↗
51
6R5244890000
O-Ring
Loading…
↗
52
6E5149970000
O-ring
Loading…
↗
54
6R5244110000
Diaphragm
Loading…
↗
60
6R5243160000
Pipe 6
Loading…
↗
