25JETO (1993)
Fuel

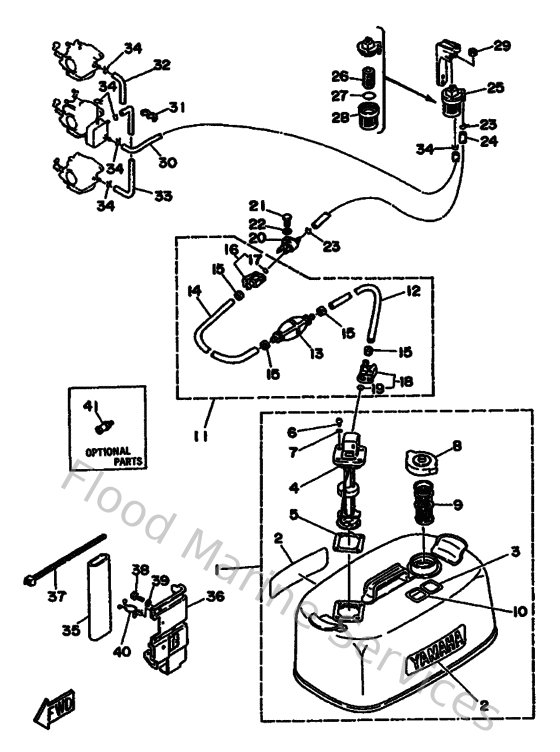

Diagram: Fuel
Parts List
Reference
Description
Price
4
6Y1242600200
Fuel meter assembly
Loading…
↗
5
6Y1242680000
Gasket, fuel meter
Loading…
↗
6
985860501600
Screw, pan head
Loading…
↗
7
6Y1243290000
Seal
Loading…
↗
8
6Y1246100000
Cap assembly
Loading…
↗
9
6Y1241670000
Strainer
Loading…
↗
11
6Y1243060500
Fuel pipe comp. 1
Loading…
↗
12
9044511M0600
Hose (l3000)
Loading…
↗
13
6Y1243600200
Primer pump assembly
Loading…
↗
14
9044511M7800
Hose (l1000)
Loading…
↗
15
650243510100
Band 1
Loading…
↗
16
6G1243050100
Fuel pipe joint comp. 2
Loading…
↗
17
932100828700
O-ring (655)
Loading…
↗
18
6Y1243050600
Fuel pipe joint comp. 2
Loading…
↗
20
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
21
9010106M2700
Bolt
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
23
904670800400
Clip, pipe 6162435600
Loading…
↗
25
655245600100
Filter assembly
Loading…
↗
26
6F5245630000
Element, filter
Loading…
↗
27
9321037M2500
O-ring (655)
Loading…
↗
29
9017908M1500
Nut(6j8)
Loading…
↗
30
6E5243120000
Pipe 2
Loading…
↗
31
9046409M2100
Clamp(6j8)
Loading…
↗
32
688243130000
Pipe, fuel 2
Loading…
↗
33
6A4243120000
Pipe, fuel 2
Loading…
↗
35
656W28100200
Tool kit
Loading…
↗
36
6J8281700000
Tool, holder
Loading…
↗
37
6E1426940000
Band
Loading…
↗
38
970800801600
Bolt
Loading…
↗
39
929950860000
Washer, plain (663)
Loading…
↗
40
9046412M1700
Clamp(6j8)
Loading…
↗
41
6E0281930094
Plug, water check
Loading…
↗
