Yamaha Outboard Parts - Fuel - 25NEMO (1988) | Flood Marine

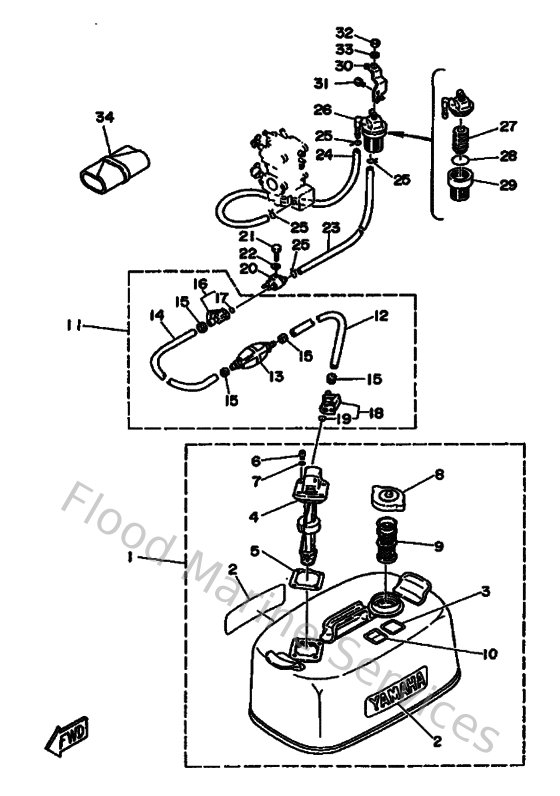

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


4
6Y1242600200
Fuel meter assembly
Loading…

↗
5
6Y1242680000
Gasket, fuel meter
Loading…

↗
6
985860501600
Screw, pan head
Loading…

↗
7
6Y1243290000
Seal
Loading…

↗
8
6Y1246100000
Cap assembly
Loading…

↗
9
6Y1241670000
Strainer
Loading…

↗
11
6Y1243060500
Fuel pipe comp. 1
Loading…

↗
12
9044511M8100
Hose (l3000)
Loading…

↗
13
6Y1243600200
Primer pump assembly
Loading…

↗
14
9044511M0500
Hose (l1000)
Loading…

↗
15
650243515100
Band 1
Loading…

↗
16
6G1243050000
Fuel pipe joint comp. 2
Loading…

↗
17
932100828700
O-ring (655)
Loading…

↗
18
6Y1243050100
Fuel pipe joint comp. 2
Loading…

↗
20
6G1243040200
Fuel pipe joint comp. 1
Loading…

↗
21
973130602000
Bolt(7u8)
Loading…

↗
22
929900660000
Washer, plain (646)
Loading…

↗
23
6H4243110000
Pipe 1
Loading…

↗
24
9044509M2500
Hose (l1500)
Loading…

↗
25
904670800400
Clip, pipe 6162435600
Loading…

↗
26
61N245601000
Filter assembly
Loading…

↗
28
9321037M2500
O-ring (655)
Loading…

↗
30
6L2245660000
Bracket, filter
Loading…

↗
31
973130601200
Bolt(gh1)
Loading…

↗
32
953330860000
Nut(6l2)
Loading…

↗
33
929900810000
Ybs67-8 washer, spring
Loading…

↗
34
656W28100100
Tool kit
Loading…

↗
