25NEMO (1994)
Fuel

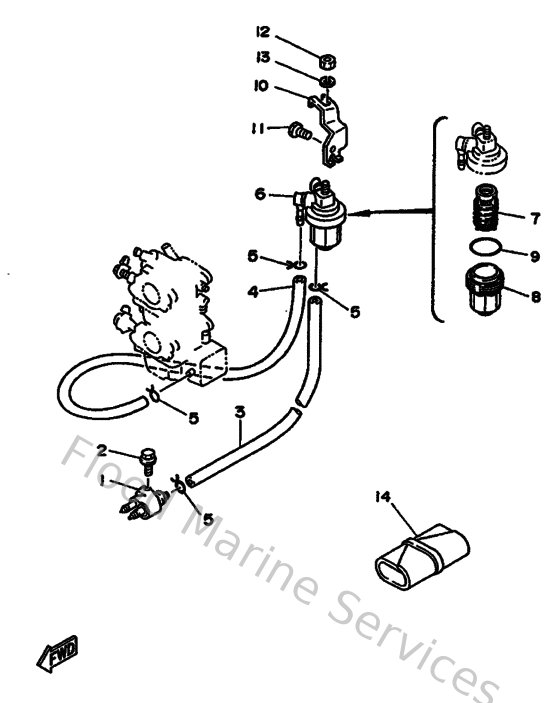

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
975950652000
Bolt(7u8)
Loading…
↗
3
6H4243110000
Pipe 1
Loading…
↗
4
90445090F600
Hose (l1500)
Loading…
↗
5
904670800400
Clip, pipe 6162435600
Loading…
↗
6
61N245600000
Filter assembly
Loading…
↗
7
61N245631000
Element, filter
Loading…
↗
8
61N245210000
Cup, filter
Loading…
↗
9
932103273800
O-ring(1wg)
Loading…
↗
10
6L2245660000
Bracket, filter
Loading…
↗
11
970950601400
Bolt(gj3)
Loading…
↗
12
953800860000
Nut (661)
Loading…
↗
13
929900810000
Ybs67-8 washer, spring
Loading…
↗
14
656W28100200
Tool kit
Loading…
↗
