30GMH (1997)
Fuel

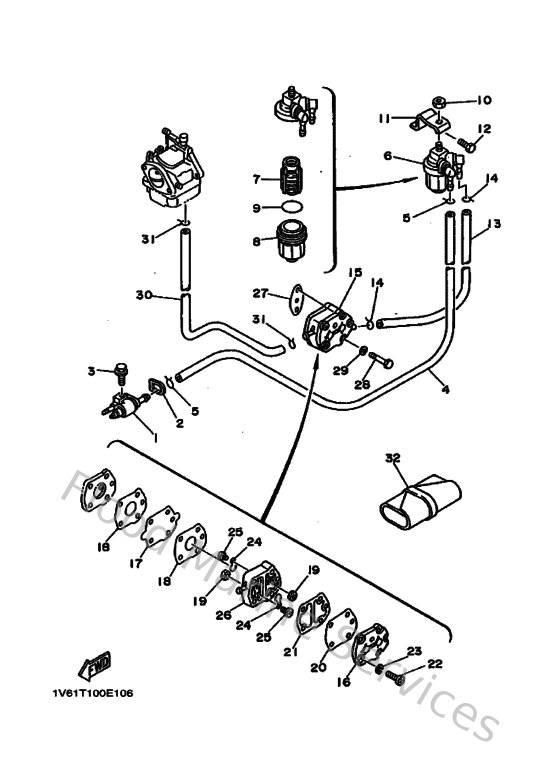

Diagram: Fuel
Parts List
Reference
Description
Price
2
61N243290000
Seal
Loading…
↗
3
975950652000
Bolt(7u8)
Loading…
↗
4
90445092K100
Hose (l420)
Loading…
↗
5
904670800400
Clip, pipe 6162435600
Loading…
↗
6
61N245600000
Filter assembly
Loading…
↗
7
61N245631000
Element, filter
Loading…
↗
8
61N245210000
Cup, filter
Loading…
↗
9
932103273800
O-ring(1wg)
Loading…
↗
10
988800810000
Nut, hex.
Loading…
↗
11
61N245660100
Bracket, filter
Loading…
↗
12
973950601400
Bolt(gj3)
Loading…
↗
13
689243110000
Hose
Loading…
↗
15
692244100000
Fuel pump assembly
Loading…
↗
16
648244130100
Cover, pump
Loading…
↗
17
692244110000
Diaphragm
Loading…
↗
18
648244340100
Gasket, body
Loading…
↗
19
953800360000
Nut (6g8)
Loading…
↗
20
663244110000
Diaphragm
Loading…
↗
21
648244350200
Gasket, body 2
Loading…
↗
22
985800553000
Ybs86-530 screw,panhead
Loading…
↗
23
929900510000
Ybs67-5 washer, spring
Loading…
↗
24
62Y244210100
Valve, check
Loading…
↗
25
6A0143250000
Screw, pan head
Loading…
↗
26
6A0244120200
Body 1
Loading…
↗
27
65024431A000
Gasket,fuel pump
Loading…
↗
28
970950604000
Bolt (682)
Loading…
↗
29
929900660000
Washer, plain (646)
Loading…
↗
30
6A1243110000
Pipe 1
Loading…
↗
32
656W28100200
Tool kit
