5CMH (1985)
Fuel

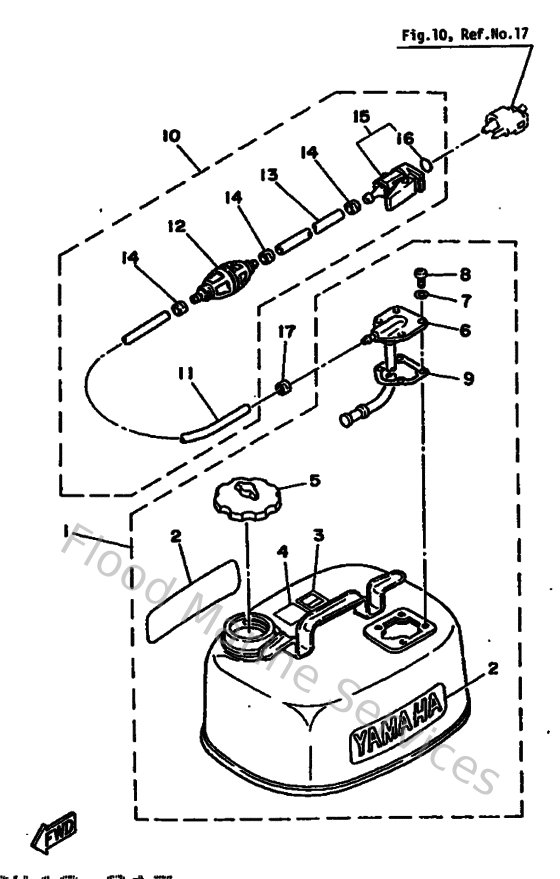

Diagram: Fuel
Parts List
Reference
Description
Price
3
6Y1242558000
Graphic, Fuel Tank 8
Loading…
↗
5
647246100300
Cap assembly
Loading…
↗
6
6Y0242750000
Fuel Meter Comp
Loading…
↗
7
6Y1243290000
Seal
Loading…
↗
8
985800501500
Screw, pan head(6b0)
Loading…
↗
9
663242680000
Gasket, housing fuel meter
Loading…
↗
10
6Y0243060100
Fuel pipe comp. 1
Loading…
↗
11
9044511M8100
Hose (l3000)
Loading…
↗
12
6Y1243600000
Primer pump assembly
Loading…
↗
13
9044511M7800
Hose (l1000)
Loading…
↗
14
650243515100
Band 1
Loading…
↗
15
655243050100
Fuel pipe joint comp. 2
Loading…
↗
16
932100828700
O-ring (655)
Loading…
↗
17
650243510000
Band 1
Loading…
↗
