6DEM (1988)
Fuel

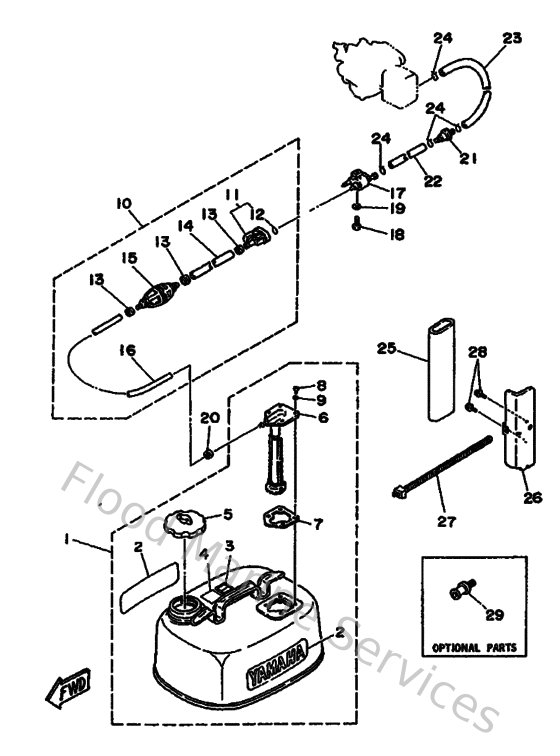

Diagram: Fuel
Parts List
Reference
Description
Price
5
6Y0246100000
Cap assembly
Loading…
↗
7
663242680000
Gasket, housing fuel meter
Loading…
↗
8
985860501600
Screw, pan head
Loading…
↗
9
6Y1243290000
Seal
Loading…
↗
11
6G1243050500
Fuel pipe joint comp. 2
Loading…
↗
12
932100828700
O-ring (655)
Loading…
↗
13
650243510100
Band 1
Loading…
↗
14
9044511M7800
Hose (l1000)
Loading…
↗
15
6Y1243600200
Primer pump assembly
Loading…
↗
16
9044511M7900
Hose (l3000)
Loading…
↗
17
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
18
973130602500
Bolt
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
21
646242510100
Strainer 1
Loading…
↗
22
90445090F600
Hose (l1500)
Loading…
↗
23
904450922000
Hose (l1500)
Loading…
↗
24
904670800400
Clip, pipe 6162435600
Loading…
↗
25
656W28100100
Tool kit
Loading…
↗
26
6G1281700000
Holder, Tool
Loading…
↗
27
904651315400
Clamp(mf1)
Loading…
↗
28
9010506M2300
Bolt (6g1)
Loading…
↗
29
6E0281930094
Plug, water check
Loading…
↗
