70BETO (1988)
Fuel

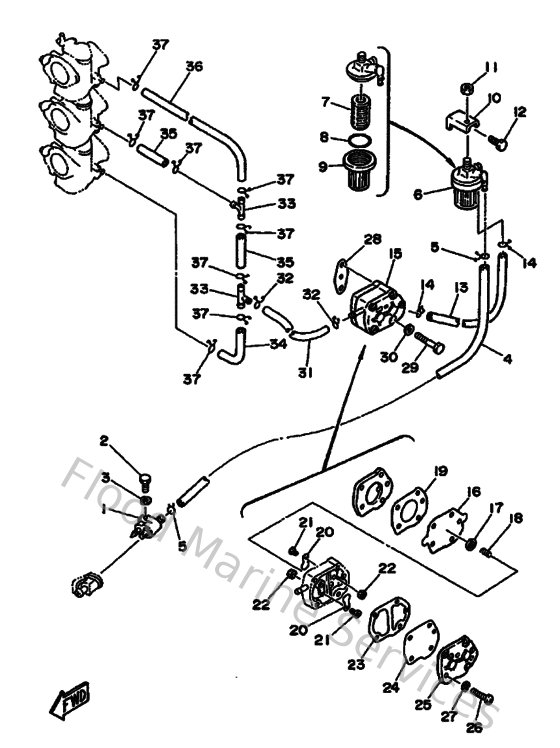

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
973130602500
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
90445092K100
Hose (l420)
Loading…
↗
5
904670800400
Clip, pipe 6162435600
Loading…
↗
6
655245600100
Filter assembly
Loading…
↗
7
6F5245630000
Element, filter
Loading…
↗
10
648245660100
Bracket, Filter
Loading…
↗
11
953330860000
Nut(6l2)
Loading…
↗
12
973130601400
Bolt(gj3)
Loading…
↗
15
6A0244100200
Fuel pump assembly
Loading…
↗
16
648244110000
Diaphragm
Loading…
↗
17
648244240000
Seat,spring
Loading…
↗
18
648244230000
Spring,diaphragm
Loading…
↗
19
648244340000
Gasket, body
Loading…
↗
20
6A0244210100
Valve, check
Loading…
↗
22
988130310000
Nut
Loading…
↗
23
648244350200
Gasket, body 2
Loading…
↗
24
663244110000
Diaphragm
Loading…
↗
25
6A0244130000
Cover, pump
Loading…
↗
26
985800553000
Ybs86-530 screw,panhead
Loading…
↗
27
929900510000
Ybs67-5 washer, spring
Loading…
↗
28
65024431A000
Gasket,fuel pump
Loading…
↗
29
973130604000
Bolt (682)
Loading…
↗
33
688243780000
Pipe, joint
Loading…
↗
35
9044509M3300
Hose (l580)
Loading…
↗
