75AE (2000)
Fuel

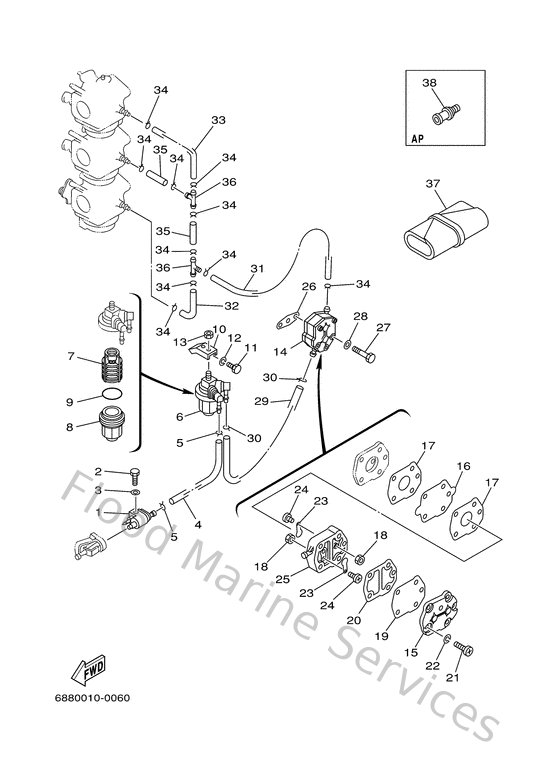

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
90445092K100
Hose (l420)
Loading…
↗
5
904670800400
Clip, pipe 6162435600
Loading…
↗
6
61N245600000
Filter assembly
Loading…
↗
7
61N245630000
Element, filter
Loading…
↗
8
61N245210000
Cup, filter
Loading…
↗
9
932103273800
O-ring(1wg)
Loading…
↗
10
648245660200
Bracket, filter
Loading…
↗
11
970130601400
Bolt(gj3)
Loading…
↗
12
929030610000
Washer(6a1)
Loading…
↗
13
988800810000
Nut, hex.
Loading…
↗
14
692244100000
Fuel pump assembly
Loading…
↗
15
6A0244130000
Cover, pump
Loading…
↗
16
692244110000
Diaphragm
Loading…
↗
17
648244340100
Gasket, body
Loading…
↗
18
953800360000
Nut (6g8)
Loading…
↗
19
663244110000
Diaphragm
Loading…
↗
20
648244350200
Gasket, body 2
Loading…
↗
21
985030502800
Ybs86-530 screw,panhead
Loading…
↗
22
929900510000
Ybs67-5 washer, spring
Loading…
↗
23
6A0244210100
Valve, check
Loading…
↗
24
6A0143250000
Screw, pan head
Loading…
↗
25
6A0244120200
Body 1
Loading…
↗
26
65024431A000
Gasket,fuel pump
Loading…
↗
27
970950604000
Bolt (682)
Loading…
↗
29
904450922100
Hose (l1500)
Loading…
↗
31
904450909700
Hose (l1500)
Loading…
↗
32
688243130000
Pipe, fuel 2
Loading…
↗
33
688243140000
Pipe, fuel 2
Loading…
↗
35
904450922000
Hose (l1500)
Loading…
↗
36
688243780000
Pipe, joint
Loading…
↗
37
656W28100200
Tool kit
Loading…
↗
38
6E0281930094
Plug, water check
Loading…
↗
