8CMH (1998)
Fuel

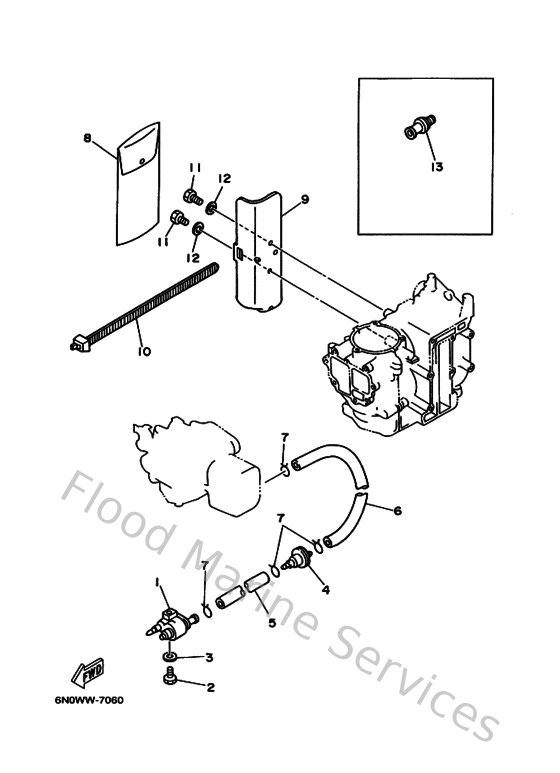

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
970950602500
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
646242510200
Strainer 1
Loading…
↗
5
904450922100
Hose (l1500)
Loading…
↗
6
90445090F600
Hose (l1500)
Loading…
↗
7
904670800400
Clip, pipe 6162435600
Loading…
↗
8
6N0F81000000
Tool kit
Loading…
↗
9
6N0F81700000
Holder, Tool
Loading…
↗
10
904641515200
Clamp(mf1)
Loading…
↗
11
970950601200
Bolt(gh1)
Loading…
↗
12
929950660000
Washer, plain (646)
Loading…
↗
13
6L8F81930000
Plug, water check
Loading…
↗
