9.9DMH (1987)
Fuel

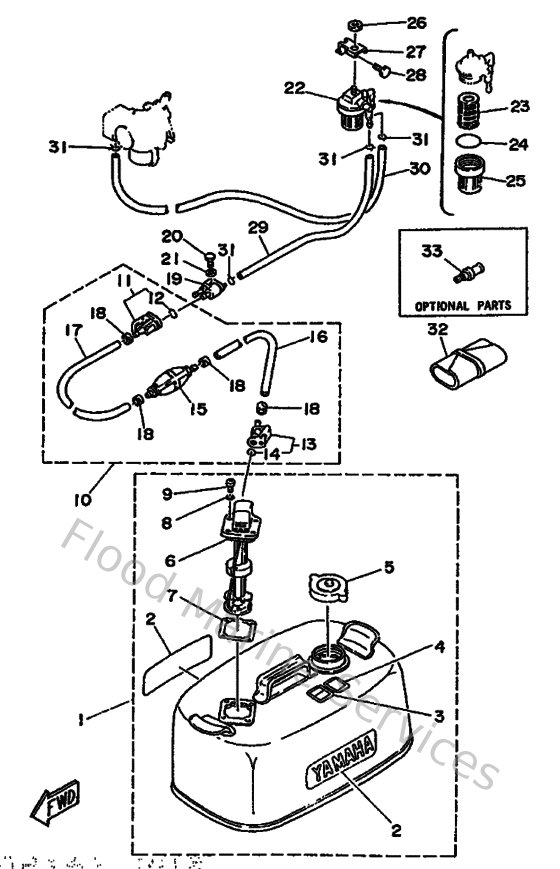

Diagram: Fuel
Parts List
Reference
Description
Price
3
6Y1242558000
Graphic, Fuel Tank 8
Loading…
↗
5
6Y1246100000
Cap assembly
Loading…
↗
6
6Y1242600100
Fuel meter assembly
Loading…
↗
7
6Y1242680000
Gasket, fuel meter
Loading…
↗
8
6Y1243290000
Seal
Loading…
↗
9
9015705M1900
Screw, pan head
Loading…
↗
10
6Y1243060500
Fuel pipe comp. 1
Loading…
↗
11
6G1243050000
Fuel pipe joint comp. 2
Loading…
↗
12
932100828700
O-ring (655)
Loading…
↗
13
6Y1243050600
Fuel pipe joint comp. 2
Loading…
↗
15
6Y1243600200
Primer pump assembly
Loading…
↗
16
9044511M0600
Hose (l3000)
Loading…
↗
17
9044511M7800
Hose (l1000)
Loading…
↗
18
650243510100
Band 1
Loading…
↗
19
6G1243040100
Fuel pipe joint comp. 1
Loading…
↗
20
970800602000
Bolt(7u8)
Loading…
↗
21
929030660000
Washer, plain (646)
Loading…
↗
22
655245600100
Filter assembly
Loading…
↗
23
6F5245630000
Element, filter
Loading…
↗
24
9321037M2500
O-ring (655)
Loading…
↗
26
953030860000
Nut(6l2)
Loading…
↗
27
682245660000
Bracket, filter
Loading…
↗
28
970850601000
Bolt
Loading…
↗
29
904450908900
Hose (l1500)
Loading…
↗
30
90445090F600
Hose (l1500)
Loading…
↗
31
904670800400
Clip, pipe 6162435600
Loading…
↗
32
6E0281000100
Tool kit
Loading…
↗
33
6E0281930094
Plug, water check
Loading…
↗
